New Holland Construction
/
(LS140) - SKID STEER LOADER (9/99-)
/

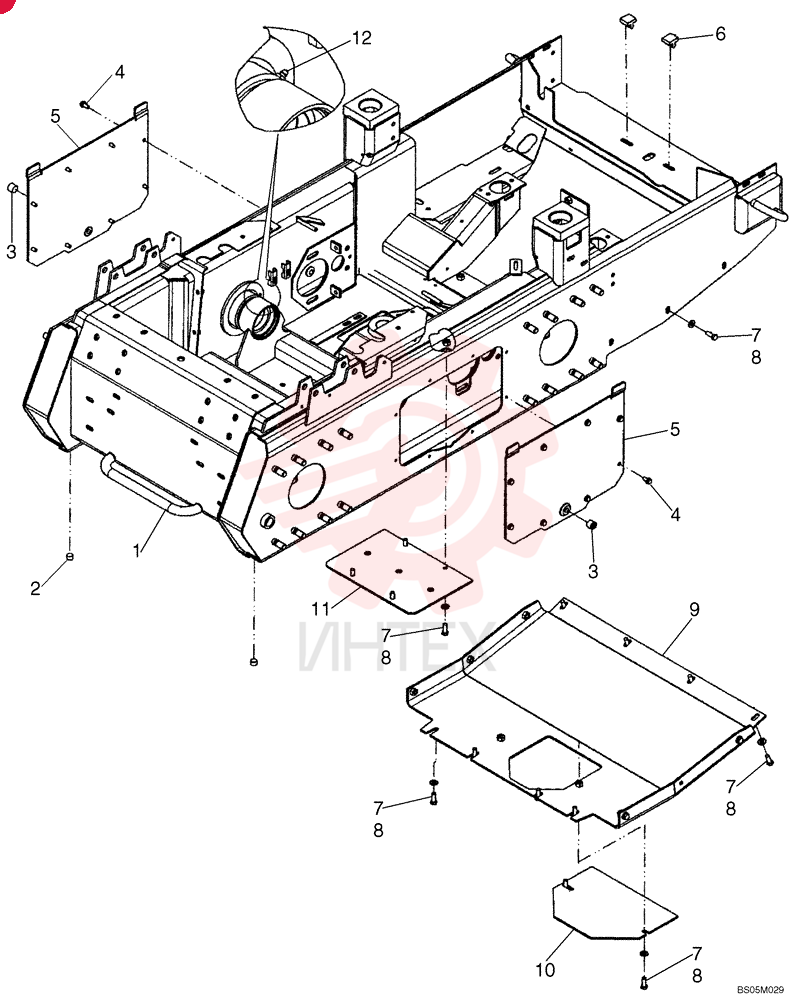

FRAME 87445509

FRAME 87445509

FRAME 87445509

1 87445509

  • 87445509 - FRAME
  • Frame
  • Yellow
  • Order From Wholegoods

2 87367500

  • 87367500 - Frame
  • Yellow
  • Order From Wholegoods

3 236622

  • 236622 - PLUG
  • 3/8" - 18 NPT

4 647429

  • 647429 - DRAIN PLUG
  • Sq Soc HD
  • 1/2" - 14
  • NPTF
  • Final Drive Oil

5 87029930

  • 87029930 - SELF-TAP SCREW
  • Hex Washer
  • 5/16" - 18 x 5/8"
  • Self-Tapping
  • Sealing
  • WH
  • 5/16"-18 x 11/16"
  • Replaces 9840344

6 86591013

  • 86591013 - COVER
  • Yellow

7 216328

  • 216328 - BUMPER
  • Block

8 88206

  • 88206 - BOLT
  • Hex
  • 3/8" - 16 x 1"
  • Gr 5

9 86625241

  • 86625241 - WASHER
  • 0.41" ID x 0.81" OD x 0.09" Thk

10 86591011

  • 86591011 - COVER PLATE
  • Rear
  • Yellow

11 86597100

  • 86597100 - COVER
  • Yellow

12 86597101

  • 86597101 - COVER
  • Yellow

13 87414

  • 87414 - LUBE NIPPLE
  • 1/4" - 28
