New Holland Construction
/
(LS160) - SKID STEER LOADER (9/99-)
/

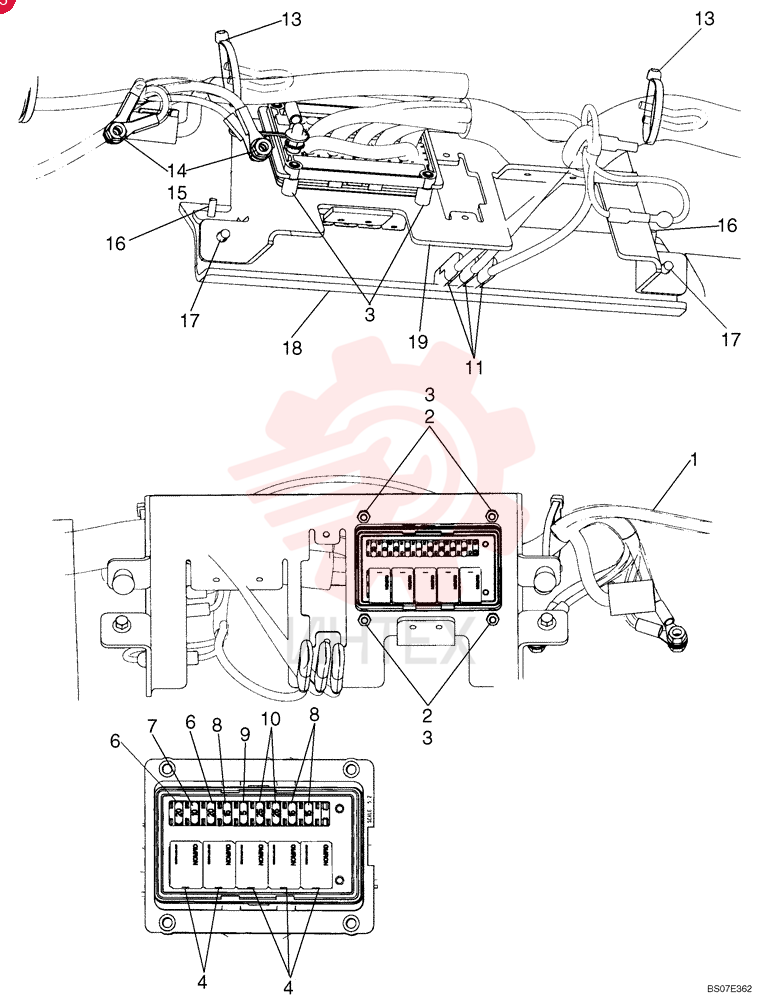

HARNESS 87599254

HARNESS 87599254

HARNESS 87599254

1 87599254

  • 87599254 - HARNESS
  • Main Cab Harness

2 86977693

  • 86977693 - NUT
  • Serrated
  • #8 - 32
  • Gr 5

3 87619421

  • 87619421 - MOUNTING PARTS
  • Sandwich Isolator

4 87582879

  • 87582879 - RELAY
  • 12V
  • Relay 20A N.O. ISO280 Micro

5 121414A1

  • 121414A1 - FUSE
  • 20A
  • Mini
  • Yellow

6 121412A1

  • 121412A1 - FUSE
  • 10A
  • Mini
  • Red

7 121413A1

  • 121413A1 - FUSE
  • 15A
  • Mini
  • Blue

8 121410A1

  • 121410A1 - FUSE
  • 5A
  • Mini
  • Tan

9 121415A1

  • 121415A1 - FUSE
  • 25A
  • Mini
  • Clear

10 L71879

  • L71879 - DIODE ELEMENT
  • 400V
  • 3A
  • Diode
  • 3A Diode Connector

11 87618013

  • 87618013 - DIODE
  • Diode
  • 6A

12 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black

13 7770

  • 7770 - NUT
  • Hex
  • 1/4 - 20
  • Cl 5

14 322357

  • 322357 - BELLEVILLE WASHER
  • M6 Bolt Size x 14mm OD x 1.3mm Thk

15 273890

  • 273890 - THUMB SCREW
  • #10 - 32 x 3/4"

16 86625199

  • 86625199 - SELF-TAP SCREW
  • Hex
  • M6 x 1 x 13mm

17 87569821

  • 87569821 - COVER
  • Fuse Block Cover

18 87590186

  • 87590186 - BRACKET
