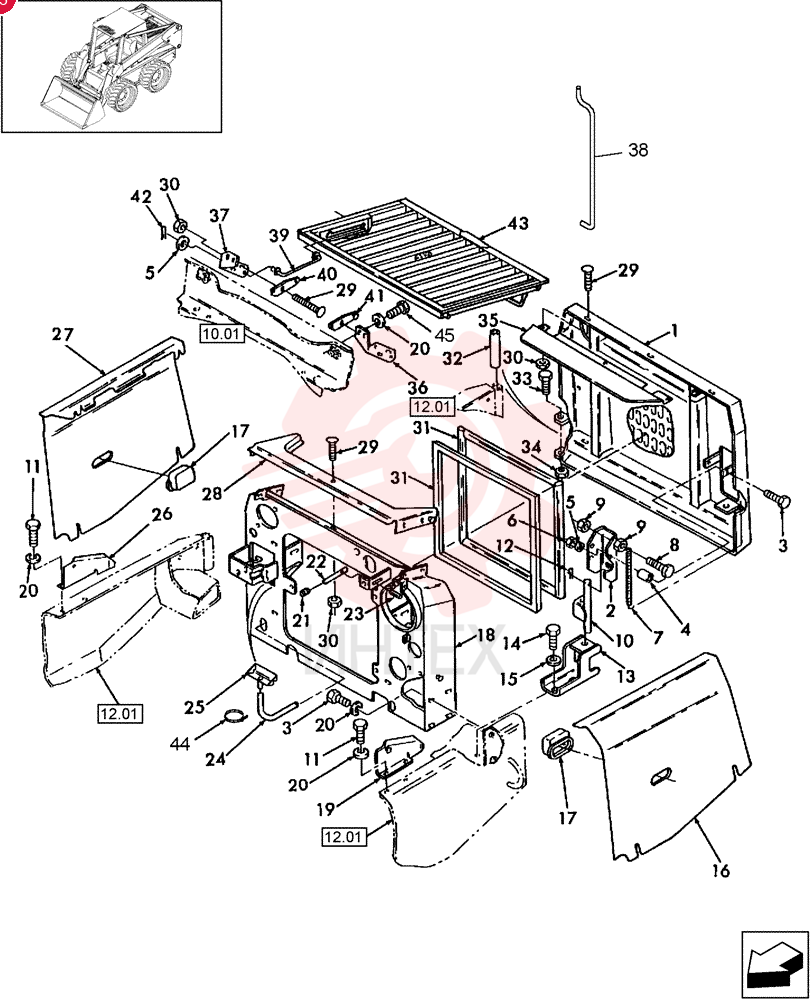

DOOR 86591018
1 86591018
- 86591018 - DOOR
- Gray
2 86629106
- 86629106 - DOOR
- Gray
- Replaces 86591018
3 86591073
- 86591073 - HANDLE
- Gray
4 88206
- 88206 - BOLT
- Hex
- 3/8" - 16 x 1"
- Gr 5
5 86628560
- 86628560 - SPACER
6 80702
- 80702 - WASHER
- 0.44" ID x 1" OD x 0.08" Thk
7 88902
- 88902 - NUT
- 3/8"-16
8 86539482
- 86539482 - SPRING
- If Used
9 88275
- 88275 - BOLT
- Hex
- 5/16" - 18 x 1 1/2"
- Gr 5
10 9635082
- 9635082 - NUT
- 5/16" - 18
- Gr 5
11 86501374
- 86501374 - ROLL PIN
- If Used
12 88434
- 88434 - BOLT
- Hex
- 3/8" - 16 x 3/4"
- Gr 5
13 80755
- 80755 - COTTER PIN
- 1/8" OD x 1" L
14 86597003
- 86597003 - STOP
15 87670
- 87670 - BOLT
- 1/2" - 13 x 1-1/4"
- Full Thd
- Gr 5
16 695335
- 695335 - WASHER
- 12.95mm ID x 37.59mm OD x 4.75mm Thk
- .528" ID x 1.48" OD x .187"
17 86591125
- 86591125 - SIDE PANEL
- LH Side Sheet
- Yellow
- If Used
18 E7NN6N084AA
- E7NN6N084AA - HANDLE
19 86591158
- 86591158 - COVER
- Yellow
20 87024954
- 87024954 - COVER
- Yellow
- Replaces 86591158
21 86591163
- 86591163 - GUIDE
- LH
- Yellow
22 86533572
- 86533572 - GUIDE
- LH
- Orange
23 140045
- 140045 - BELLEVILLE WASHER
- M10 Bolt Size x 22mm OD x 1.6mm Thk
24 86539686
- 86539686 - SPRING
- Compression
25 9804663
- 9804663 - ROD
26 80628
- 80628 - GROOVED PIN
- 3/16" x 1 3/4"
- Type A
27 86513397
- 86513397 - HOSE
- 1/2" ID
- 3/4" OD x 24"
- Cut to Required Length
28 86501330
- 86501330 - FUNNEL
29 86591164
- 86591164 - GUIDE
- RH
- Yellow
30 86591126
- 86591126 - SIDE PANEL
- RH Side Sheet
- Yellow
31 86590643
- 86590643 - COVER
- North America
- Yellow
32 86590644
- 86590644 - LID
- Europe
- Yellow
33 86508748
- 86508748 - CARRIAGE BOLT
- Short Square Neck
- 3/8" - 16 x 3/4"
- Grade 5
34 247780
- 247780 - SERRATED NUT
- Flg
- USR
- 3/8"-16
35 86506879
- 86506879 - RUBBER SEAL
- 2150mm L
- 1" x 84.65" Long
- Cut to Required Length
36 9844280
- 9844280 - SPACER
- .72" ID x 1.12" OD x 5.22"
37 87012655
- 87012655 - SCREW
- Hex
- 5/8" x 7"
- Gr 8
- Cap
- HH
- G8
- 5/8"-11 x 7"
38 85700693
- 85700693 - NUT
- 5/8" - 11
- Gr C
39 86591007
- 86591007 - COVER
- Yellow
40 86527175
- 86527175 - BRACKET
- LH
41 86527176
- 86527176 - BRACKET
- RH
42 86506234
- 86506234 - ROD
- Prop
43 87603956
- 87603956 - ROD
- Replaces 9829702
44 86591166
- 86591166 - GUIDE
- RH
45 9844538
- 9844538 - GUIDE
- LH
46 216698
- 216698 - COTTER PIN
- 0.125" OD x 1.75" L
47 86591124
- 86591124 - LID
- Yellow
48 263117
- 263117 - CABLE TIE
- 292.1mm L
- Nylon
- Black
49 280476
- 280476 - SELF-TAP SCREW
- HWH
- 3/8"-16 x 1"
