(LS185.B) - SKID STEER LOADER
/

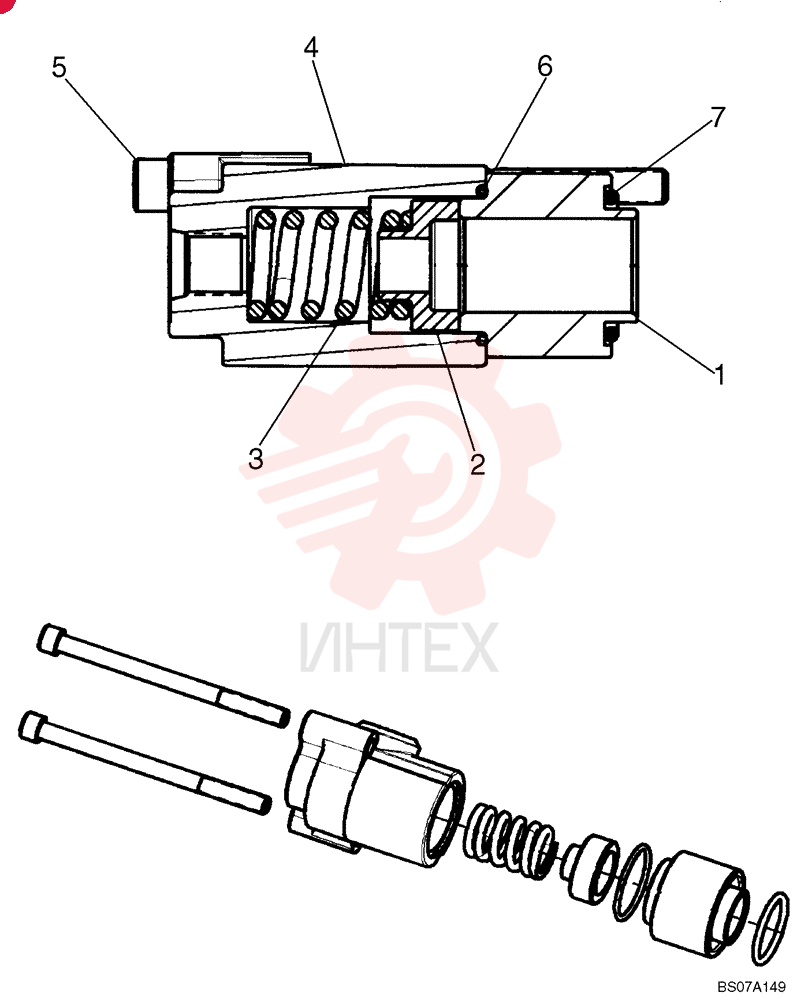

SPOOL 87610531

SPOOL 87610531

SPOOL 87610531

1 87610531

  • 87610531 - SPOOL
  • Spool End Group
  • Incl. 1 - 7

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Retainer

3 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring Seat

4 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Cap
  • Spool P.O.

6 NSS

  • NSS - NOT SOLD SEPARAT
  • Socket Head Cap Screw

7 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring

8 NSS

  • NSS - NOT SOLD SEPARAT
  • O-Ring
