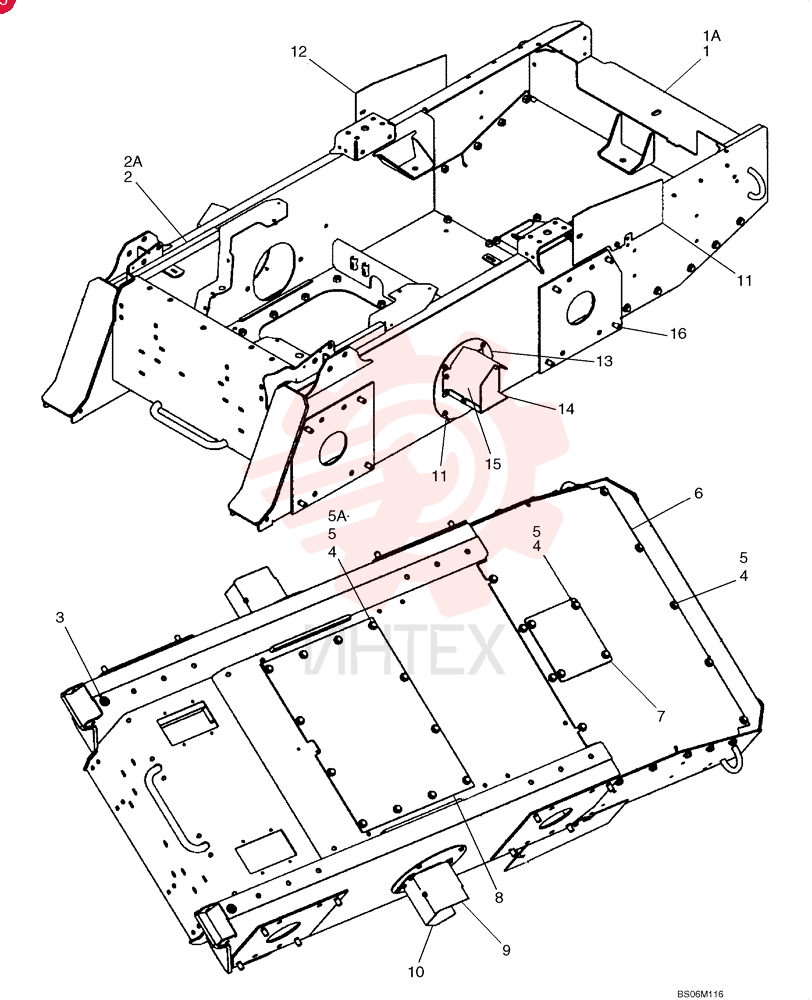

FRAME
1 87451985
- 87451985 - FRAME
- Frame
- Yellow
- Order From Wholegoods
2 87459190
- 87459190 - FRAME
- Frame
- Yellow
- Order From Wholegoods
3 87019177
- 87019177 - SEAL
- 2.86 Feet
4 87048885
- 87048885 - FOAM
- Used With 1A
5 236622
- 236622 - PLUG
- 3/8" - 18 NPT
6 86625256
- 86625256 - WASHER
- 13.3mm ID x 28.5mm OD x 4mm Thk
7 87670
- 87670 - BOLT
- 1/2" - 13 x 1-1/4"
- Full Thd
- Gr 5
8 87909
- 87909 - BOLT
- Hex
- 1/2" - 13 x 1"
- Gr 5
- Used with 1A
9 87034057
- 87034057 - PLATE
- Rear
- Yellow
10 86602722
- 86602722 - COVER ASSY
11 86599088
- 86599088 - PLATE
12 87459904
- 87459904 - GUARD
- Hose Guard
- Lower Right
13 87459902
- 87459902 - GUARD
- Hose Guard
- Upper Right
14 87029930
- 87029930 - SELF-TAP SCREW
- Hex Washer
- 5/16" - 18 x 5/8"
- Sealing
- Replaces 9840344
15 87459836
- 87459836 - PLATE
- Fender Extension Plate
16 87459814
- 87459814 - PLATE
- Chassis Center Plate
17 87459900
- 87459900 - GUARD
- Hose Guard
- Lower Left
18 87459898
- 87459898 - PLATE
- Hose Guard
- Upper Left
19 9860108
- 9860108 - BOLT
