(NH85TLB) - TRACTOR LOADER BACKHOE (1/96-)
/

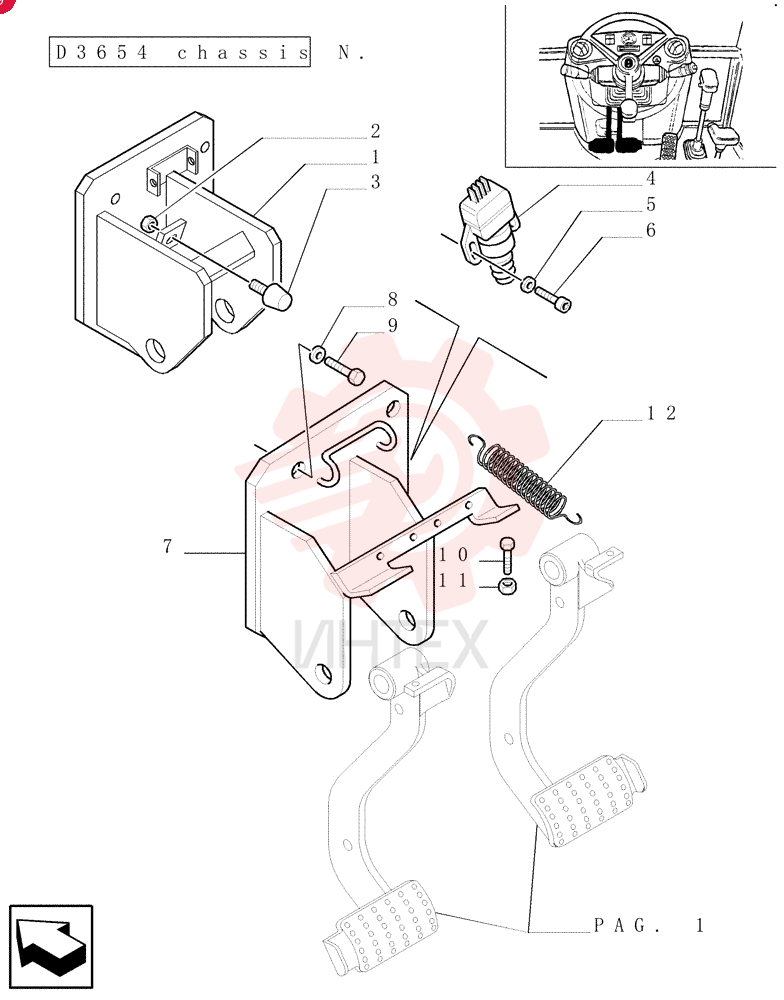

SUPPORT 85801857

SUPPORT 85801857

SUPPORT 85801857

1 85801857

  • 85801857 - SUPPORT
  • Serial Range: -C3654

2 11701721

  • 11701721 - NUT
  • M10
  • Cl 10
  • Serial Range: -C3654

3 71416437

  • 71416437 - BUMPER
  • Serial Range: -C3654

4 47132449

  • 47132449 - SWITCH
  • Start Serial: D3654

5 12642821

  • 12642821 - WASHER
  • 4.15mm ID x 12mm OD x 1mm Thk
  • Start Serial: D3654

6 13272477

  • 13272477 - SCREW
  • Pozidriv Pan Hd
  • M4 x 20mm
  • Full Thd
  • SST
  • Start Serial: D3654

7 85805277

  • 85805277 - SUPPORT
  • Start Serial: D3654

8 11190574

  • 11190574 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

9 16043924

  • 16043924 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd
  • Start Serial: D3654

10 11701621

  • 11701621 - NUT
  • M8
  • Cl 10
  • Start Serial: D3654

11 5153180

  • 5153180 - SPRING
  • 21mm OD x 84mm L

12 15970524

  • 15970524 - BOLT
  • Hex
  • M10 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd
