New Holland Construction
/
(RG170) - MOTOR GRADER (4/99-)
/

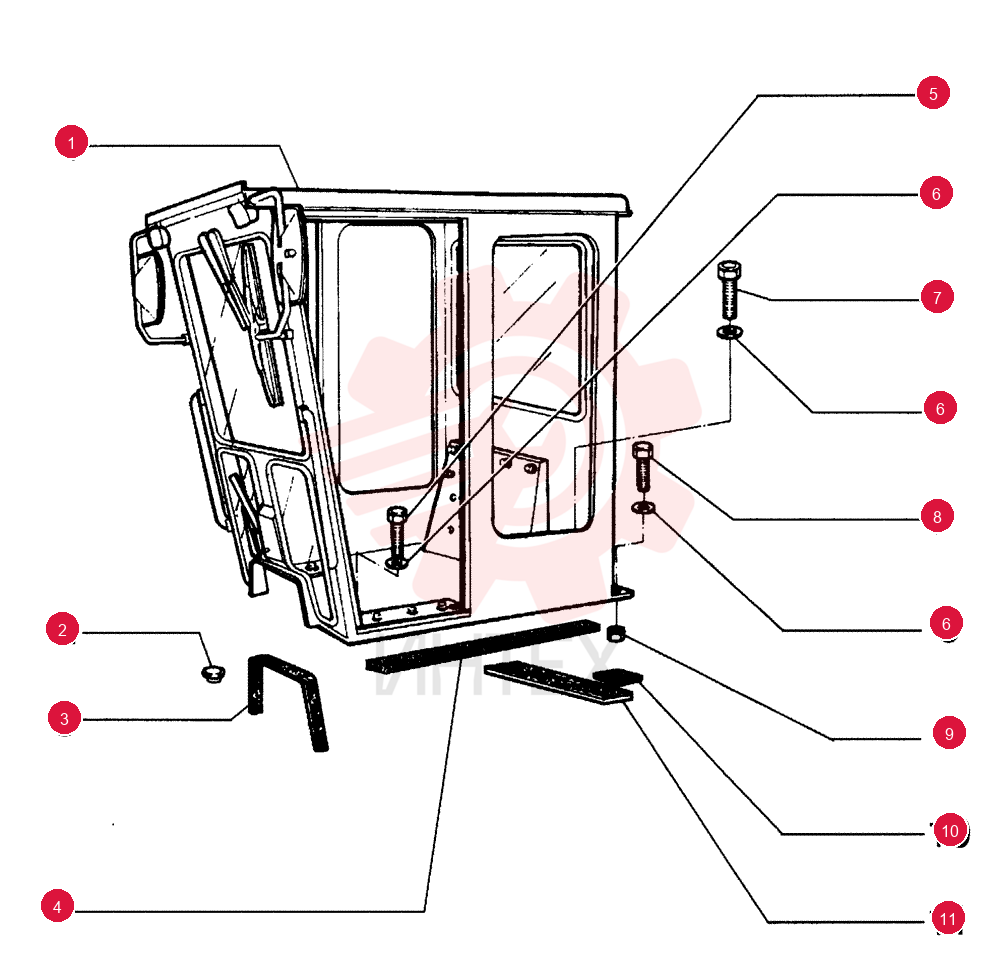

CAB 75321642

CAB 75321642

CAB 75321642

1 75321642

  • 75321642 - CAB

2 73150598

  • 73150598 - SEALING STRIP

3 70921445

  • 70921445 - PLUG

4 75281193

  • 75281193 - FOOT BOARD

5 79032222

  • 79032222 - WASHER
  • 21mm ID x 40mm OD x 8mm Thk

6 15224031

  • 15224031 - BOLT
  • Hex
  • M20 x 65mm
  • Cl 10.9
  • Full Thd

7 11125331

  • 11125331 - BOLT
  • Hex
  • M20 x 80mm
  • Cl 10.9

8 12577721

  • 12577721 - NUT
  • M20 x 2.5
  • Cl 10

9 73150595

  • 73150595 - RUBBER STRIP

10 73150566

  • 73150566 - FOAM INSULATION
  • 30mm W x 845mm L x 9.5mm Thk

11 75210383

  • 75210383 - ANTI-SKID STRIP
