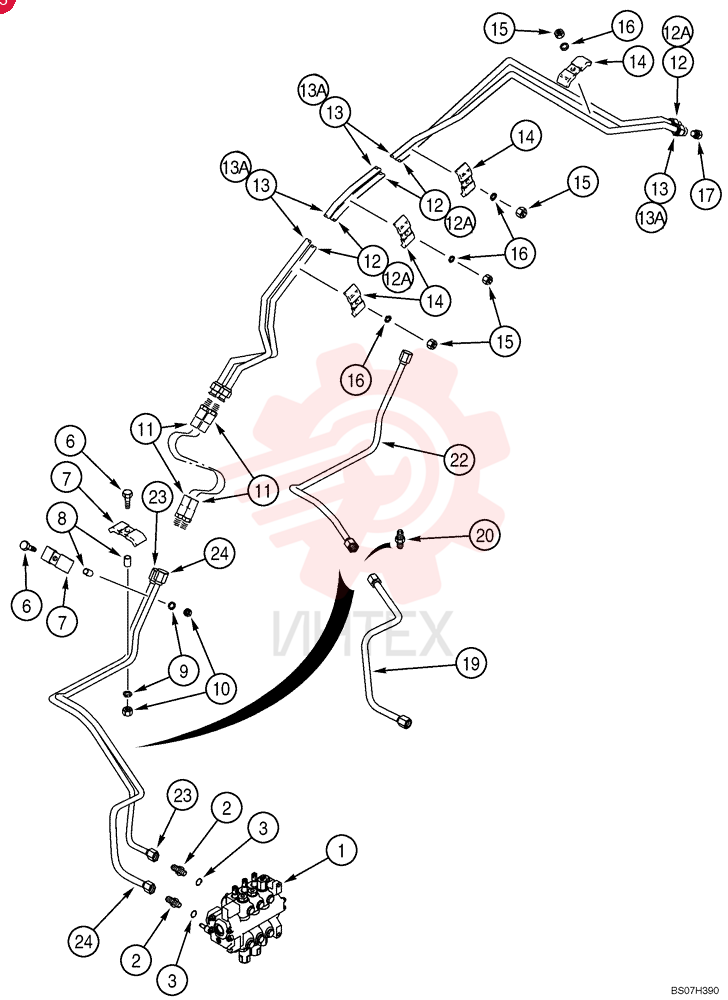

VALVE 358237A1 (1)
1 358237A1
- 358237A1 - VALVE
2 325059
- 325059 - HYD CONNECTOR
- 7/8"-14
- 37 Degree x 7/8"-14
- O-Ring
3 167269
- 167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
4 120112
- 120112 - BOLT
- Hex
- M10 x 1.5 x 40mm
- Cl 8.8
- Full Thd
5 D138055
- D138055 - CLAMP
6 120303A1
- 120303A1 - SPACER
- 11mm ID x 15.82mm OD x 15mm Thk
7 140028
- 140028 - WASHER
- 10.2mm ID x 18.1mm OD x 2.2mm Thk
8 86500689
- 86500689 - NUT
- M10 x 1.5
- Cl 10
9 138467A1
- 138467A1 - HOSE
- 12.7mm ID x 680mm L
10 196824A1
- 196824A1 - TUBE
11 87611328
- 87611328 - HYD TUBE
- 15.88 mm OD x 1761 mm L
12 196821A1
- 196821A1 - TUBE
13 87611326
- 87611326 - HYD TUBE
- 15.88 mm OD x 1761 mm L
14 D138055
- D138055 - CLAMP
15 86500689
- 86500689 - NUT
- M10 x 1.5
- Cl 10
16 140028
- 140028 - WASHER
- 10.2mm ID x 18.1mm OD x 2.2mm Thk
17 86513050
- 86513050 - PLUG
- 7/8" - 14 JIC
18 232945A1
- 232945A1 - TUBE
19 86511517
- 86511517 - UNION
- 7/8" - 14 JIC x 7/8" - 14 JIC
20 360937A1
- 360937A1 - TUBE
21 360916A1
- 360916A1 - TUBE
22 87447352
- 87447352 - TUBE
- .625" OD
23 360918A1
- 360918A1 - TUBE
24 87447350
- 87447350 - TUBE
- 11.66 mm ID x 15.88 mm OD
25 378970
- 378970 - HYD CONNECTOR
- 1-5/16" - 12 ORB x 1-5/16" - 12 JIC
26 167268
- 167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
27 429149A1
- 429149A1 - HOSE ASSY.
