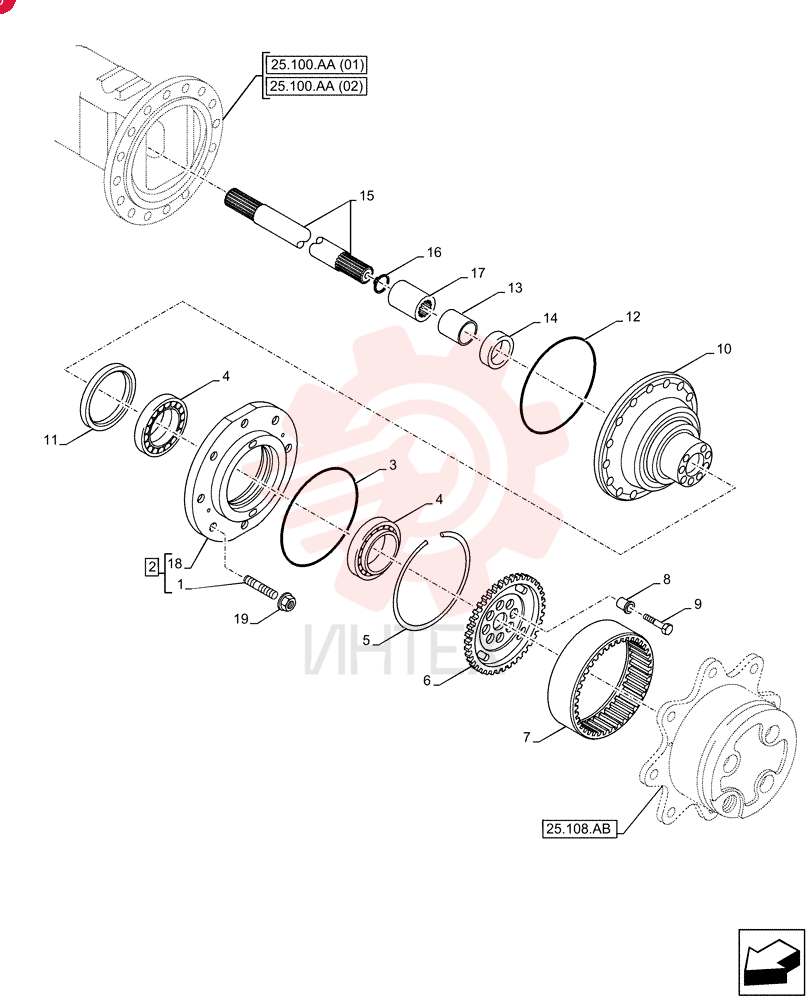

(W50C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/
STUD 6914443

STUD 6914443

STUD 6914443

1 6914443

  • 6914443 - STUD

2 6914487

  • 6914487 - FLANGE
  • ASSY
  • Incl 1
  • 18

3 6914488

  • 6914488 - O-RING

4 6914489

  • 6914489 - BALL BEARING

5 6914445

  • 6914445 - CIRCLIP

6 6914490

  • 6914490 - SUN GEAR

7 6914491

  • 6914491 - RING GEAR
  • Z=60

8 6914492

  • 6914492 - SLEEVE

9 6914493

  • 6914493 - SCREW
  • M10 x 45mm

10 6914494

  • 6914494 - HOUSING

11 6914495

  • 6914495 - SEALING RING

12 6914444

  • 6914444 - O-RING

13 6914496

  • 6914496 - BUSHING

14 6914497

  • 6914497 - SEALING RING
  • 35 x 52 x 7mm

15 6914498

  • 6914498 - SHAFT

16 6914455

  • 6914455 - LOCKING RING
  • 33mm

17 6914454

  • 6914454 - SPACER

18 NSS

  • NSS - NOT SOLD SEPARAT
  • Wheel Hub
  • Incl in 2

19 47676261

  • 47676261 - NUT
  • M20mm
