New Holland Construction
/
(W50C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

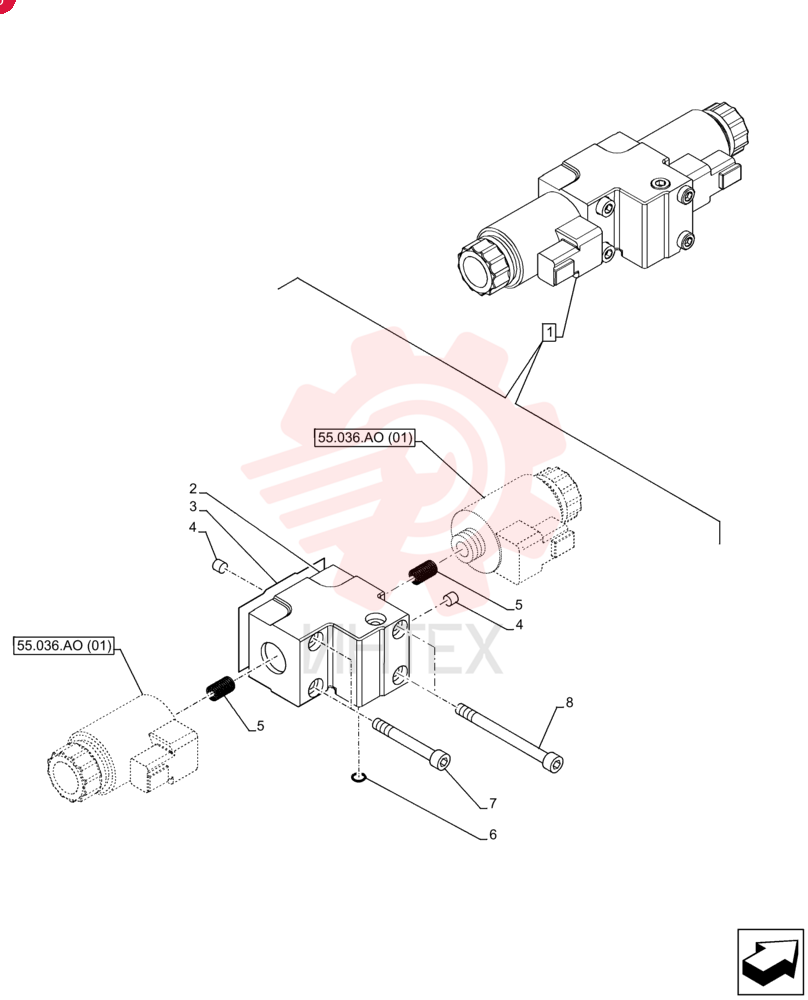

VALVE 47628173 (2)

VALVE 47628173 (2)

VALVE 47628173 (2)

1 47628173

  • 47628173 - VALVE
  • 4/3-Way
  • ASSY
  • Incl 2 - 8

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Valve
  • Incl in 1

3 47628183

  • 47628183 - GASKET

4 NSS

  • NSS - NOT SOLD SEPARAT
  • Pin
  • Incl in 1

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Spring
  • Incl in 1

6 47628182

  • 47628182 - KIT

7 14305921

  • 14305921 - HEX SOC SCREW
  • M6 x 45mm
  • Cl 8.8

8 14303921

  • 14303921 - HEX SOC SCREW
  • M6 x 70mm
  • Cl 8.8
