New Holland Construction
/
(W60C) - COMPACT WHEEL LOADER STD, TC - TIER 4 (6/14-)
/

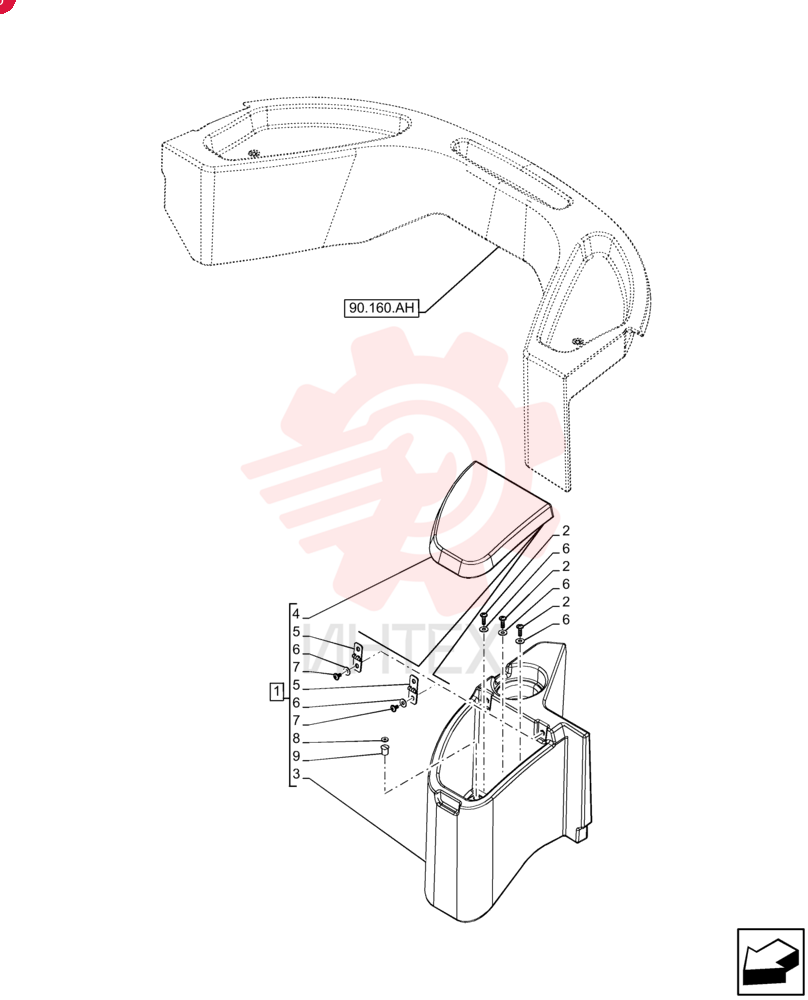

TOOL BOX 47510258

TOOL BOX 47510258

TOOL BOX 47510258

1 47510258

  • 47510258 - TOOL BOX
  • ASSY
  • Incl 2 - 5
  • 6 (Qty 4)
  • 7 - 9
  • Serial Range: -NGHP00540

2 47973631

  • 47973631 - TOOL BOX
  • ASSY
  • Incl 2 - 5
  • 6 (Qty 4)
  • 7 - 9
  • Start Serial: NGHP00541

3 87698793

  • 87698793 - SCREW
  • Hex
  • M6 x 20mm L

4 NSS

  • NSS - NOT SOLD SEPARAT
  • Box
  • Incl in 1

5 47512508

  • 47512508 - COVER
  • Serial Range: -NGHP00540

6 47973844

  • 47973844 - COVER
  • Start Serial: NGHP00541

7 76303262

  • 76303262 - HINGE

8 14498804

  • 14498804 - WASHER
  • 6.4mm ID x 16.3mm OD x 1mm Thk

9 2700886

  • 2700886 - HEX SOC SCREW
  • Hex
  • M6 x 4 x 10mm
  • Cl 10.9 BNZ

10 47532521

  • 47532521 - WASHER

11 47532522

  • 47532522 - MAGNET
