New Holland Construction
/
(W60C) - COMPACT WHEEL LOADER STD, ZB - TIER 4 (6/14-)
/

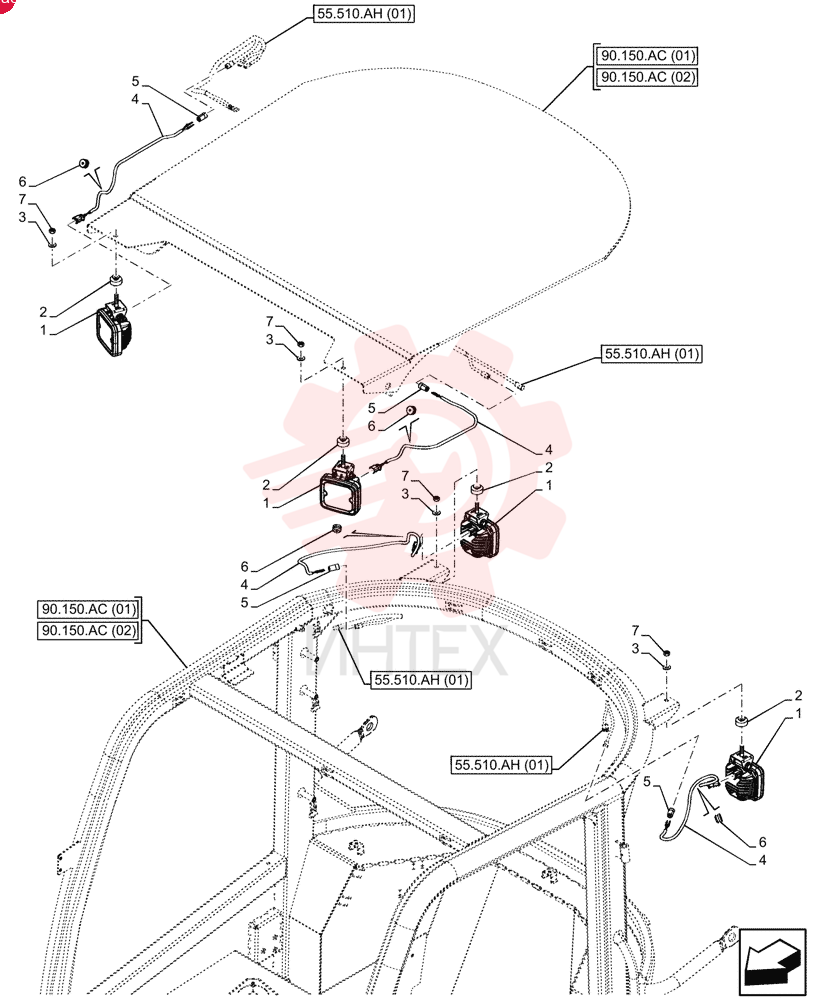

WORK LAMP 47818991

WORK LAMP 47818991

WORK LAMP 47818991

1 47818991

  • 47818991 - WORK LAMP
  • Led
  • 2680lm 40W
  • Square
  • ASSY
  • Incl 7

2 85818943

  • 85818943 - SPACER
  • 11mm ID x 30mm OD x 11mm L

3 322358

  • 322358 - BELLEVILLE WASHER
  • M8 Bolt Size x 18mm OD x 1.4mm Thk

4 47942111

  • 47942111 - JUMPER
  • Work Lights

5 87695376

  • 87695376 - ELEC CONNECTOR

6 47617381

  • 47617381 - GROMMET

7 NSS

  • NSS - NOT SOLD SEPARAT
  • Nut
  • Incl in 1
