New Holland Construction
/
(W80C) - COMPACT WHEEL LOADER STD, ZB - TIER 4 (6/14-)
/

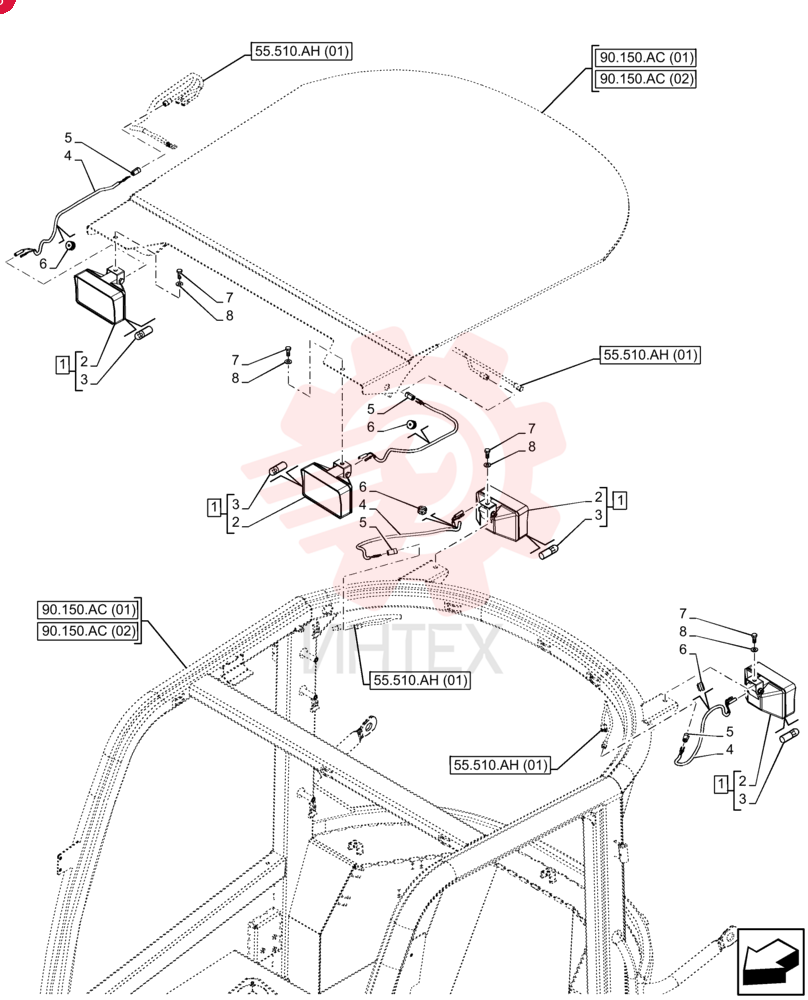

WORK LAMP,Halogen, 12V, 55W, Clear 2930039 (2)

WORK LAMP,Halogen, 12V, 55W, Clear 2930039 (2)

WORK LAMP,Halogen, 12V, 55W, Clear 2930039 (2)

1 2930039

  • 2930039 - WORK LAMP
  • Halogen
  • 12V
  • 55W
  • Clear
  • ASSY
  • Incl 2 (Qty 1)
  • 3 (Qty 1)

2 NSS

  • NSS - NOT SOLD SEPARAT
  • Lamp
  • Incl in 1

3 559299

  • 559299 - BULB
  • YC 12V/55W

4 47618729

  • 47618729 - JUMPER
  • Work Lights

5 87695376

  • 87695376 - ELEC CONNECTOR

6 47617381

  • 47617381 - GROMMET

7 120104

  • 120104 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

8 322358

  • 322358 - BELLEVILLE WASHER
  • M8 Bolt Size x 18mm OD x 1.4mm Thk
