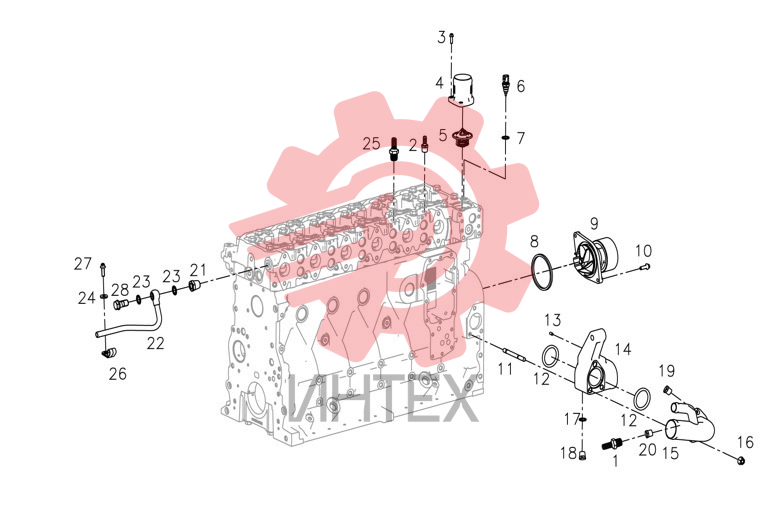

Термостат и насос водяной с комплектующими
1
S00006846
- S00006846 - CONNECTOR
- Кол-во: 1
2
D0415130
- D0415130 - BLEEDING JOINT
- Кол-во: 1
3
B00002118
- B00002118 - HEXAGON BOLTS WITH FLANGE - Q/SC622-M6*20
- Кол-во: 3
4
S00011790
- S00011790 - CYLINDER HEAD WATER OULET TUBE
- Кол-во: 1
5
S00003087
- S00003087 - THERMOSTAT ASSY
- Кол-во: 1
6
D88A005800
- D88A005800 - SENSOR
- WATER TEMPERATURE
- Кол-во: 1
7
B00001828
- B00001828 - COPPER WASHER - Q/SC598-16*22
- Кол-во: 1
8
S00003597
- S00003597 - GASKET
- Кол-во: 1
9
S00003086
- S00003086 - WATER PUMP ASSY
- Кол-во: 1
10
B00004885
- B00004885 - HEXAGON BOLTS WITH FLANGE - GB/T16674.1-M8*25-10.9-F
- Кол-во: 2
11
B00004665
- B00004665 - STUD - GB/T899-GM10-M10*85-8.8-ZN.D
- Кол-во: 3
12
S00004106
- S00004106 - WATER PUMP INLET TUBE GASKET
- Кол-во: 2
13
B00000121
- B00000121 - PARALLEL PINS - GB/T119-A6*12
- Кол-во: 2
14
S00004102
- S00004102 - BRACKET
- TENSIONER
- Кол-во: 1
15
S00018167
- S00018167 - WATER PUMP INLET PIPE
- Кол-во: 1
16
B00000833
- B00000833 - HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD - GB/T6177-M10-Y
- Кол-во: 3
18
B00001727
- B00001727 - PLUG - Q/SC587.1-M16*1.5
- Кол-во: 1
19
D02A16401
- D02A16401 - PLUG
- Кол-во: 2
20
D02A16301
- D02A16301 - PLUG
- Кол-во: 1
21
S00027332
- S00027332 - CONNECTOR
- Кол-во: 1
22
S00027340
- S00027340 - WATER HEATING PIPE
- UREA TANK
- Кол-во: 1
23
B00001548
- B00001548 - RUBBER COATED HARD WASHER - Q/SC1294-16
- Кол-во: 1
23
B00001548
- B00001548 - RUBBER COATED HARD WASHER - Q/SC1294-16
- Кол-во: 2
24
B00001810
- B00001810 - BIGGER BLACK WASHERS - Q/SC597-8*22
- Кол-во: 1
25
D0016321
- D0016321 - DEFAULT
- Кол-во: 1
26
D24B117900
- D24B117900 - CLAMP
- Кол-во: 1
27
B00005115
- B00005115 - HEXAGON BOLTS WITH FLANGE - GB/T16674.1-M8*25-10.9-HDAC
- Кол-во: 1
28
B00005673
- B00005673 - BANJO BOLT - Q/SC642.1-01-M16*1.5-DAC
- Кол-во: 1
