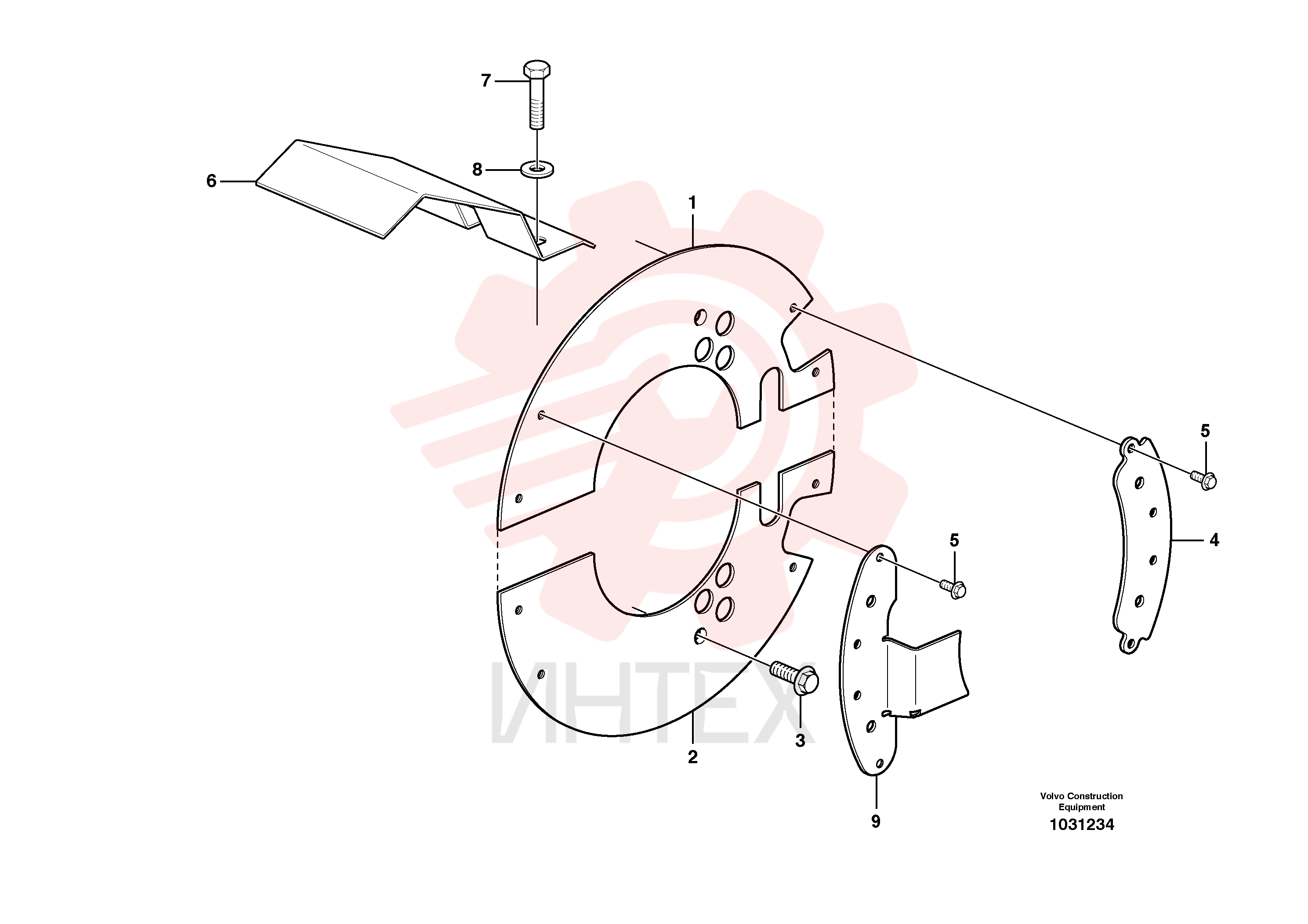

Protecting plate VOE11192928 (3)

Protecting plate VOE11192928 (3)

Protecting plate VOE11192928 (3)

1 VOE 11192928

  • VOE 11192928 - Protecting plate
  • LH

2 VOE 11192928

  • VOE 11192928 - Protecting plate
  • LH

3 VOE 11119132

  • VOE 11119132 - Brake Shield

4 VOE 11190012

  • VOE 11190012 - Brake Shield

5 VOE 968435

  • VOE 968435 - Flange screw

6 VOE 968435

  • VOE 968435 - Flange screw

7 VOE 11190925

  • VOE 11190925 - Пластина

8 VOE 946471

  • VOE 946471 - Flange screw

9 VOE 946471

  • VOE 946471 - Flange screw

10 VOE 11190018

  • VOE 11190018 - Protection

11 VOE 11190018

  • VOE 11190018 - Protection

12 VOE 955591

  • VOE 955591 - Винт шестигранник

13 VOE 955591

  • VOE 955591 - Болт

14 VOE 930845

  • VOE 930845 - Шайба

15 VOE 930845

  • VOE 930845 - Шайба

16 VOE 11192601

  • VOE 11192601 - Protecting plate
  • RH

17 VOE 11192601

  • VOE 11192601 - Protecting plate
  • RH
