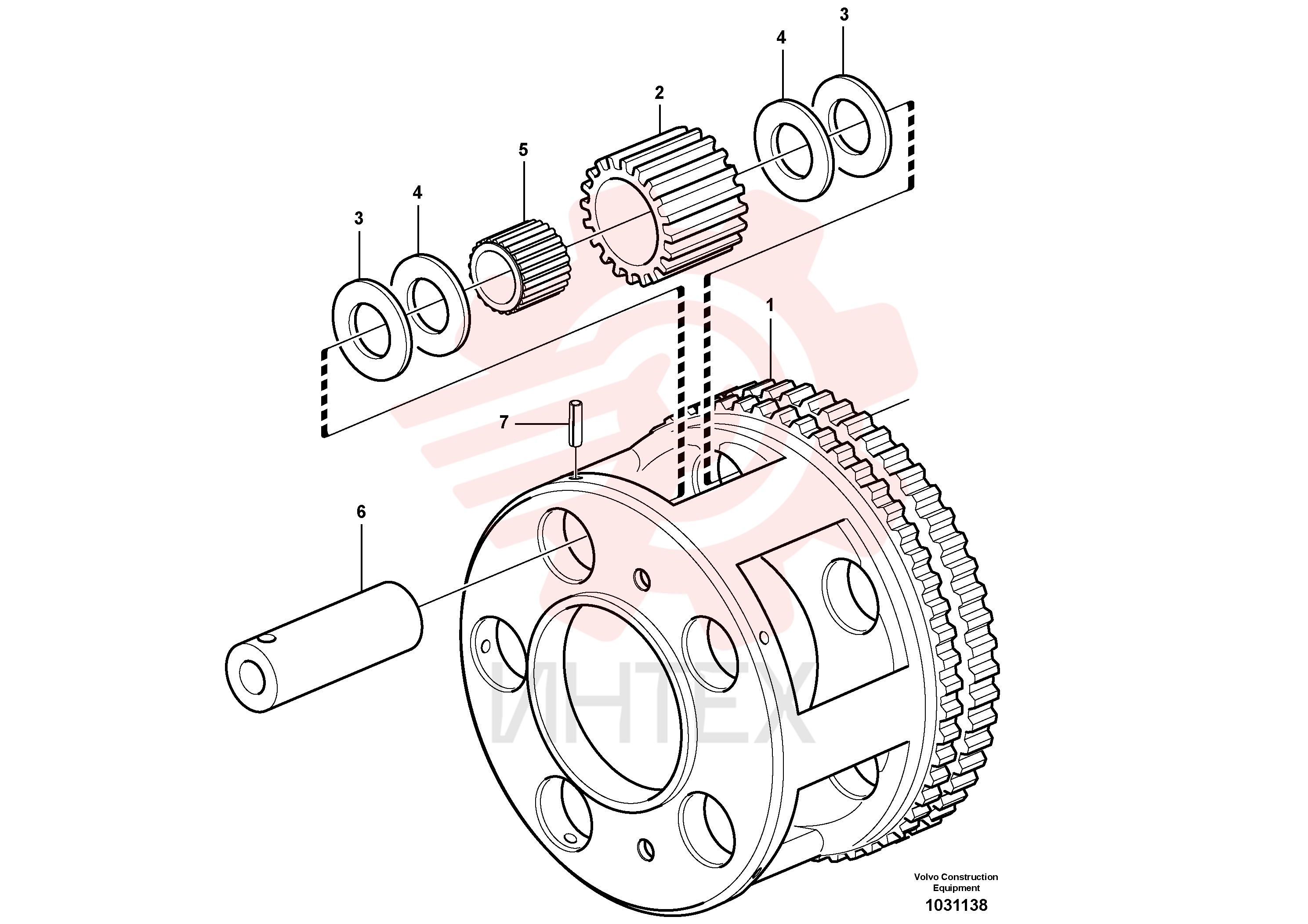

Planet kit

Planet kit

Planet kit

1 VOE 11145993

  • VOE 11145993 - Planet kit

2 VOE 11036754

  • VOE 11036754 - Водило планетарного редуктора

3 VOE 11145806

  • VOE 11145806 - Шестерня планетарная (сателлит)

4 VOE 11145806

  • VOE 11145806 - Шестерня планетарная (сателлит)

5 VOE 11036759

  • VOE 11036759 - Шайба упорная

6 VOE 11036759

  • VOE 11036759 - Шайба упорная

7 VOE 11036753

  • VOE 11036753 - Шайба упорная

8 VOE 11036753

  • VOE 11036753 - Шайба упорная

9 VOE 11036761

  • VOE 11036761 - Needle Bearing

10 VOE 11036761

  • VOE 11036761 - Needle Bearing

11 VOE 11036758

  • VOE 11036758 - Pivot Pin

12 VOE 11036758

  • VOE 11036758 - Pivot Pin

13 VOE 13951967

  • VOE 13951967 - Spring Pin

14 VOE 13951967

  • VOE 13951967 - Spring Pin
