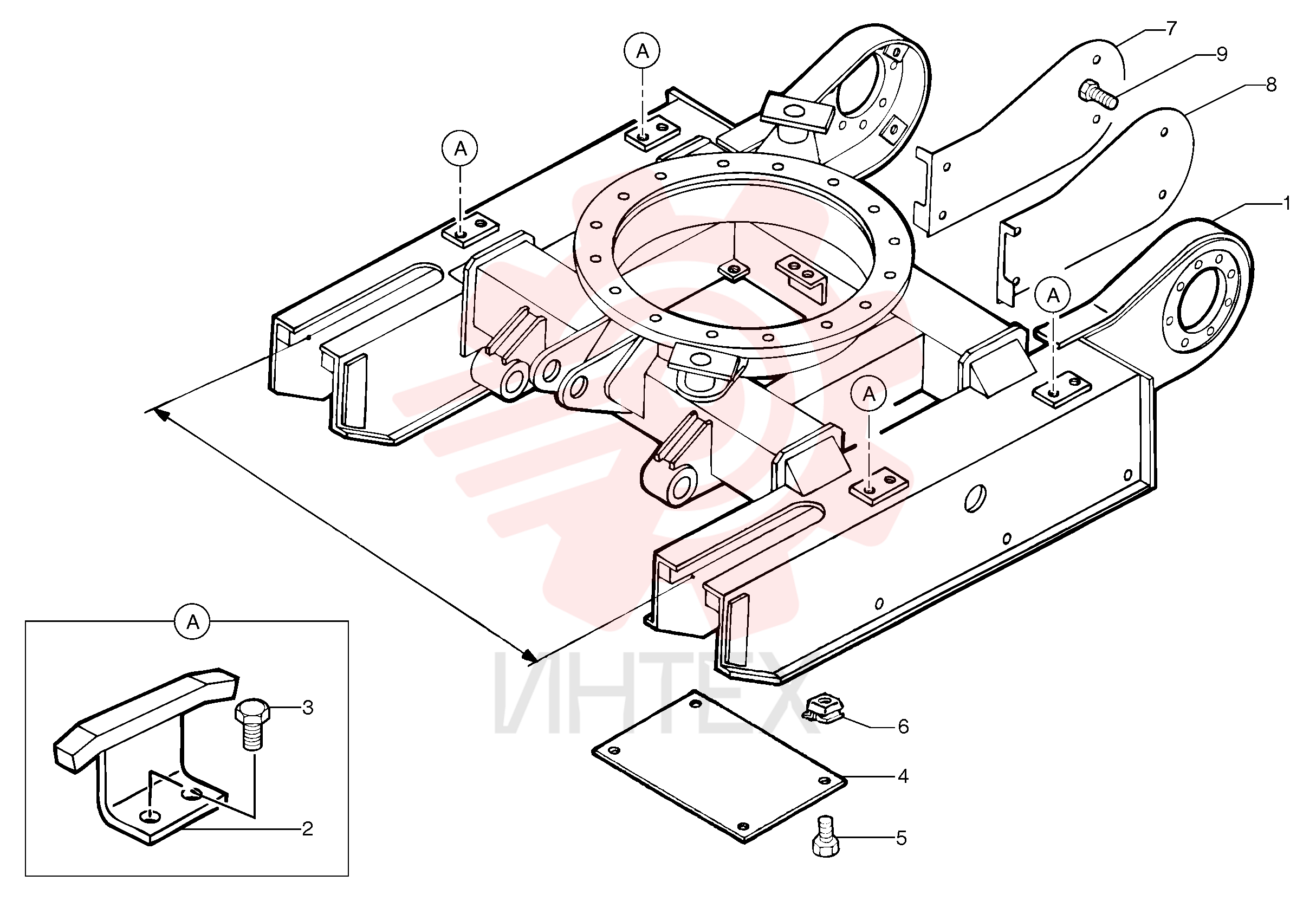

Frame ( narrow ) VOE 11800780

Frame ( narrow ) VOE 11800780

Frame ( narrow ) VOE 11800780

1 VOE 11800780

  • VOE 11800780 - Frame ( narrow )
  • WID = 750mm/29.5275in

2 VOE 11801010

  • VOE 11801010 - Frame ( wide )
  • WID = 970mm/38.1889in

3 PJ 3811610

  • PJ 3811610 - Skid

4 VOE 946471

  • VOE 946471 - Flange screw
  • M10x16

5 VOE 946471

  • VOE 946471 - Flange screw
  • M10x16

6 VOE 11806419

  • VOE 11806419 - Крышка

7 VOE 13946173

  • VOE 13946173 - Screw
  • M8x20

8 VOE 13946173

  • VOE 13946173 - Болт
  • M8x20

9 VOE 11802431

  • VOE 11802431 - Гайка
  • M8

10 VOE 11806416

  • VOE 11806416 - Крышка

11 VOE 11806414

  • VOE 11806414 - Крышка

12 VOE 11806338

  • VOE 11806338 - Винт шестигранник
  • Taptite M8X20
