G700 MODELS S/N 33000 -
/

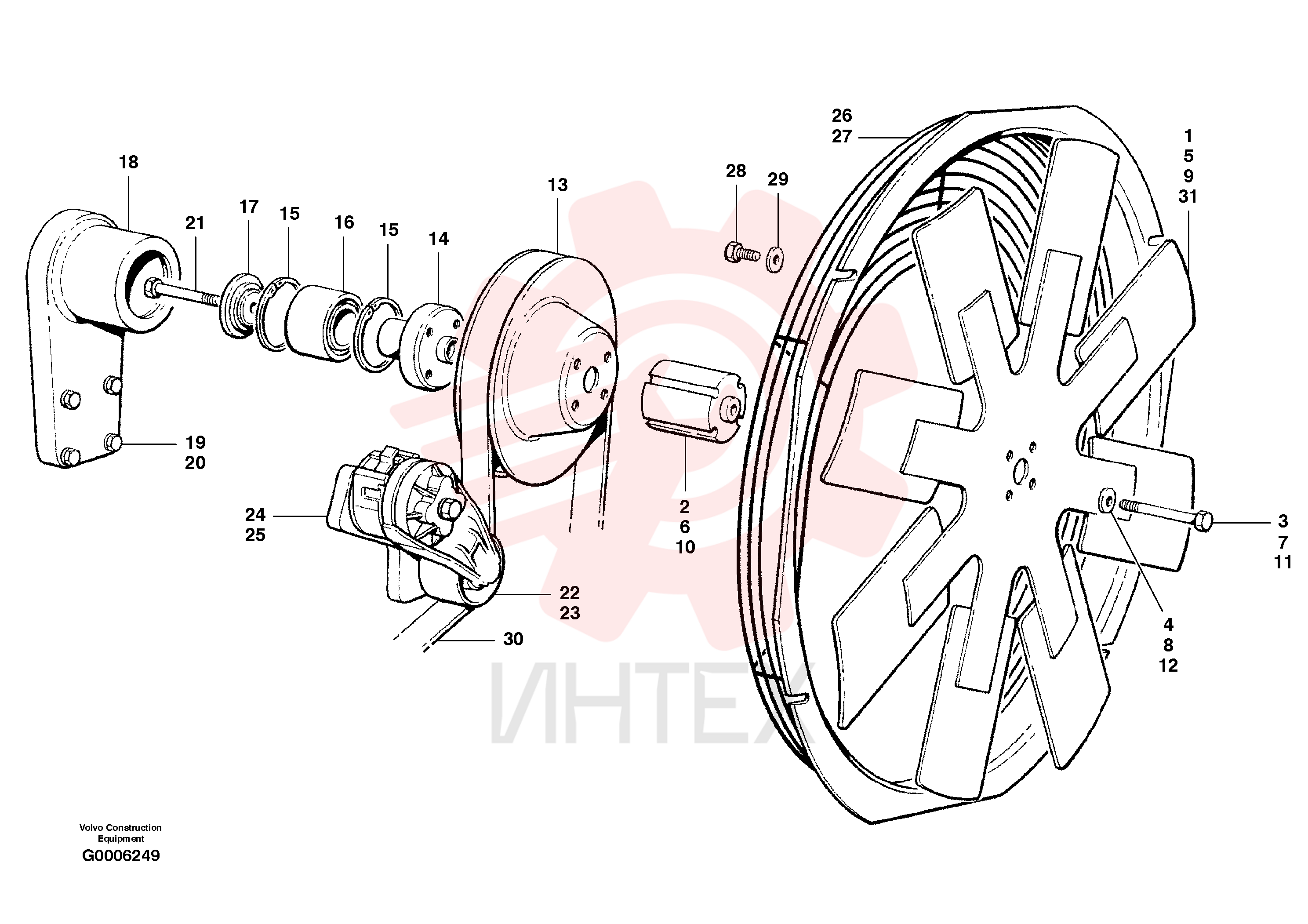

Cooling Fan Suction CH 86534 (18)

Cooling Fan Suction CH 86534 (18)

Cooling Fan Suction CH 86534 (18)

1 CH 86534

  • CH 86534 - Cooling Fan Suction
  • MODEL G710
  • G710 VHP

2 CH 86141

  • CH 86141 - Вставка
  • blower fan
  • MODEL G710

3 VOE 983394

  • VOE 983394 - Винт шестигранник
  • MODEL G710
  • G710 VHP

4 VOE 983394

  • VOE 983394 - Винт шестигранник
  • MODEL G710
  • G710 VHP

5 VOE 983335

  • VOE 983335 - Шайба

6 VOE 983335

  • VOE 983335 - Шайба

7 CH 86699

  • CH 86699 - Шкив

8 CH 86683

  • CH 86683 - Ступица

9 CH 19B-250

  • CH 19B-250 - Retainer Ring

10 CH 19B-250

  • CH 19B-250 - Retainer Ring

11 CH 86686

  • CH 86686 - Подшипник

12 CH 86943

  • CH 86943 - Hub Retainer

13 CH 86708

  • CH 86708 - Пластина

14 VOE 983265

  • VOE 983265 - Винт шестигранник

15 VOE 983265

  • VOE 983265 - Винт шестигранник

16 CH 65810

  • CH 65810 - Вставка
  • Sucker fan
  • MODEL G710

17 VOE 983334

  • VOE 983334 - Шайба

18 VOE 983334

  • VOE 983334 - Шайба

19 VOE 983277

  • VOE 983277 - Винт шестигранник

20 VOE 983277

  • VOE 983277 - Винт шестигранник

21 CH 95546

  • CH 95546 - Belt Tensioner

22 VOE 965188

  • VOE 965188 - Flange screw

23 VOE 965188

  • VOE 965188 - Flange screw

24 VOE 965188

  • VOE 965188 - Болт

25 CH 86809

  • CH 86809 - Пластина

26 VOE 13945444

  • VOE 13945444 - Болт

27 VOE 13945444

  • VOE 13945444 - Flange screw

28 CH 86956

  • CH 86956 - Fan ring
  • 30" fan
  • MODEL G710
  • G710

29 VOE 12732363

  • VOE 12732363 - Tip Plate
  • 32" fan
  • MODEL G716 VHP

30 CH 50A-0608ZI

  • CH 50A-0608ZI - Винт шестигранник

31 CH 50A-0608ZI

  • CH 50A-0608ZI - Винт шестигранник

32 VOE 983335

  • VOE 983335 - Шайба

33 VOE 983335

  • VOE 983335 - Шайба

34 VOE 983393

  • VOE 983393 - Винт шестигранник
  • MODEL G710
  • G710 VHP

35 CH 86854

  • CH 86854 - Ремень клиновой (приводной)
  • Fan - alternator

36 VOE 12727767

  • VOE 12727767 - Вентилятор

37 VOE 983335

  • VOE 983335 - Шайба

38 VOE 983335

  • VOE 983335 - Шайба

39 VOE 12727704

  • VOE 12727704 - Вентилятор
  • sucker 9 blade 32" fan

40 VOE 12727757

  • VOE 12727757 - Вставка
  • sucker fan
  • MODEL G716

41 VOE 983906

  • VOE 983906 - Винт шестигранник

42 VOE 983335

  • VOE 983335 - Шайба

43 VOE 983335

  • VOE 983335 - Шайба

44 VOE 12727139

  • VOE 12727139 - Вентилятор
  • blower 9 blade 30" fan
