G700 MODELS S/N 33000 -
/

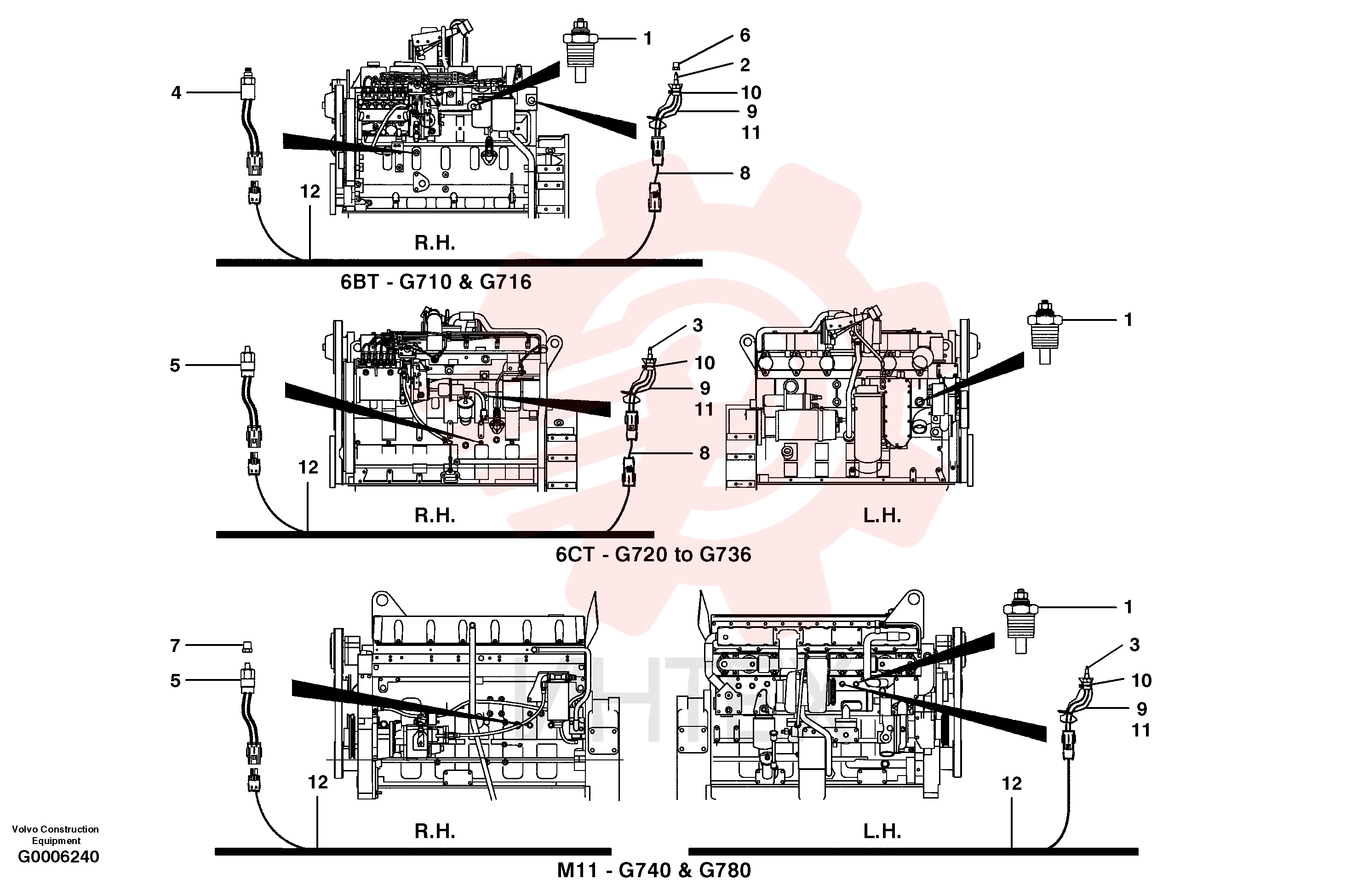

Sender CH 57345 (13)

Sender CH 57345 (13)

Sender CH 57345 (13)

1 CH 57345

  • CH 57345 - Sender

2 VOE 12724691

  • VOE 12724691 - Hose Clamp

3 CH 65776

  • CH 65776 - Tie wrap

4 VOE 12727672

  • VOE 12727672 - Переключатель
  • MODEL G710
  • G716

5 VOE 12727627

  • VOE 12727627 - Переключатель
  • MODEL G720 - G780

6 CH 400203

  • CH 400203 - Датчик давления (переключатель
  • реле)
  • MODEL G710
  • G716

7 CH 400199

  • CH 400199 - Датчик давления (переключатель
  • реле)
  • MODEL G720 - G780

8 CH 115B-1208

  • CH 115B-1208 - Втулка
  • MODEL G710
  • G716

9 CH 115B-1208

  • CH 115B-1208 - Втулка
  • MODEL G710
  • G716

10 CH 115B-0402

  • CH 115B-0402 - Втулка
  • MODEL G740 - G780

11 VOE 12727513

  • VOE 12727513 - Cable harness
  • MODEL G710 - G736

12 VOE 12724731

  • VOE 12724731 - Втулка (распорная)
