PF6110
/

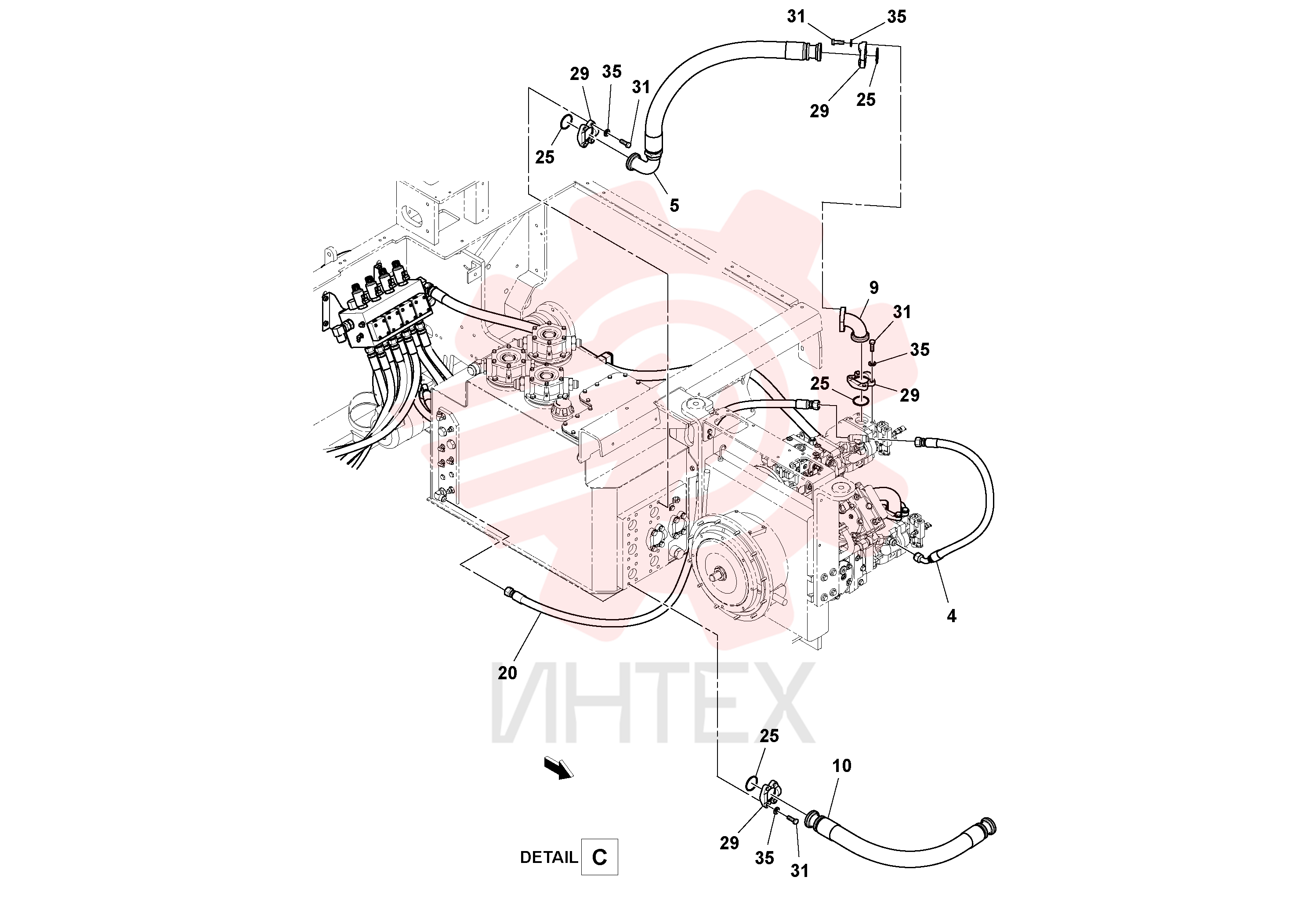

Hose assembly RM 13842117

Hose assembly RM 13842117

Hose assembly RM 13842117

1 RM 13842117

  • RM 13842117 - Hose assembly

2 RM 43947712

  • RM 43947712 - Hose assembly

3 RM 95390860

  • RM 95390860 - Фланец

4 RM 59990051

  • RM 59990051 - Кольцо уплотнительное (О-кольцо)

5 RM 95706222

  • RM 95706222 - Зажим

6 RM 95920708

  • RM 95920708 - Винт шестигранник

7 RM 95920708

  • RM 95920708 - Винт шестигранник

8 RM 96738596

  • RM 96738596 - Шайба

9 RM 13526470

  • RM 13526470 - Шланг

10 RM 13527221

  • RM 13527221 - Hose assembly

11 RM 13831292

  • RM 13831292 - Фиттинг
