Volvo
/
PF6110
/

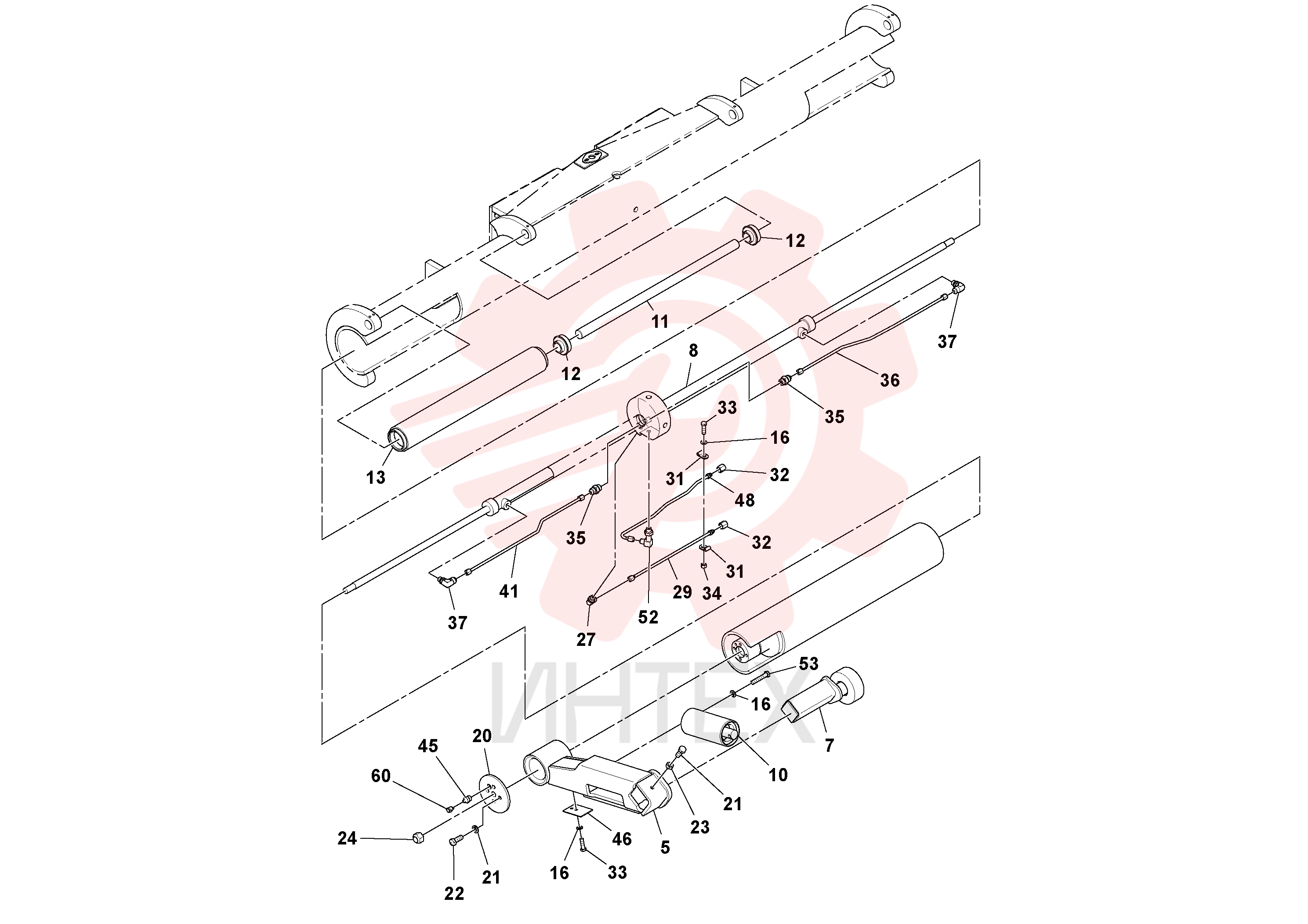

Roller RM 20262655 (2)

Roller RM 20262655 (2)

Roller RM 20262655 (2)

1 RM 20262655

  • RM 20262655 - Roller

2 RM 20262655

  • RM 20262655 - Roller

3 RM 20218004

  • RM 20218004 - Roller

4 RM 20218004

  • RM 20218004 - Roller

5 RM 20930848

  • RM 20930848 - Подшипник

6 RM 20930848

  • RM 20930848 - Подшипник

7 RM 20926952

  • RM 20926952 - Sealing Kit

8 RM 20926952

  • RM 20926952 - Sealing Kit

9 RM 95998936

  • RM 95998936 - Lock nut

10 RM 95998936

  • RM 95998936 - Lock nut

11 RM 20217782

  • RM 20217782 - Roller Kit

12 RM 20217782

  • RM 20217782 - Roller Kit

13 RM 21057864

  • RM 21057864 - Roller

14 RM 21057864

  • RM 21057864 - Roller

15 RM 20930848

  • RM 20930848 - Подшипник

16 RM 20930848

  • RM 20930848 - Подшипник

17 RM 20962239

  • RM 20962239 - Вал

18 RM 20962239

  • RM 20962239 - Вал

19 RM 95931432

  • RM 95931432 - Стопорная шайба (кольцо)

20 RM 95931432

  • RM 95931432 - Стопорная шайба (кольцо)

21 RM 20217733

  • RM 20217733 - End Cover

22 RM 20217733

  • RM 20217733 - End Cover

23 RM 95934659

  • RM 95934659 - Винт шестигранник

24 RM 95934659

  • RM 95934659 - Винт шестигранник

25 RM 95931226

  • RM 95931226 - Стопорная шайба (кольцо)

26 RM 95931226

  • RM 95931226 - Стопорная шайба (кольцо)

27 RM 95922993

  • RM 95922993 - Гайка

28 RM 95922993

  • RM 95922993 - Гайка

29 RM 95998936

  • RM 95998936 - Lock nut

30 RM 95998936

  • RM 95998936 - Lock nut

31 RM 95329975

  • RM 95329975 - Адаптер

32 RM 95329975

  • RM 95329975 - Адаптер

33 RM 20218095

  • RM 20218095 - Трубка

34 RM 20218095

  • RM 20218095 - Трубка

35 RM 95301826

  • RM 95301826 - Зажим

36 RM 95301826

  • RM 95301826 - Зажим

37 RM 95257341

  • RM 95257341 - Cap

38 RM 95257341

  • RM 95257341 - Cap

39 RM 95920682

  • RM 95920682 - Винт шестигранник

40 RM 95920682

  • RM 95920682 - Винт шестигранник

41 RM 95922894

  • RM 95922894 - Hexagon Nut

42 RM 95922894

  • RM 95922894 - Hexagon Nut

43 RM 95303368

  • RM 95303368 - Адаптер

44 RM 95303368

  • RM 95303368 - Адаптер

45 RM 20218079

  • RM 20218079 - Трубка
  • LH

46 RM 20218079

  • RM 20218079 - Трубка
  • LH

47 RM 95480109

  • RM 95480109 - Адаптер

48 RM 95480109

  • RM 95480109 - Адаптер

49 RM 20217675

  • RM 20217675 - Slide
  • RH

50 RM 20217675

  • RM 20217675 - Slide
  • RH

51 RM 20218087

  • RM 20218087 - Трубка
  • RH

52 RM 20218087

  • RM 20218087 - Трубка
  • RH

53 RM 20934832

  • RM 20934832 - Lubrication nipple

54 RM 20934832

  • RM 20934832 - Lubrication nipple

55 RM 20218277

  • RM 20218277 - Пластина

56 RM 20218277

  • RM 20218277 - Пластина

57 RM 20218160

  • RM 20218160 - Трубка

58 RM 20218160

  • RM 20218160 - Трубка

59 RM 20218202

  • RM 20218202 - Рукоять
  • LH

60 RM 20218202

  • RM 20218202 - Рукоять
  • LH

61 RM 59374033

  • RM 59374033 - Адаптер

62 RM 59374033

  • RM 59374033 - Адаптер

63 RM 95935128

  • RM 95935128 - Винт шестигранник

64 RM 95935128

  • RM 95935128 - Винт шестигранник

65 RM 95922373

  • RM 95922373 - Плоская шайба

66 RM 95922373

  • RM 95922373 - Плоская шайба

67 RM 50270248

  • RM 50270248 - Cap

68 RM 50270248

  • RM 50270248 - Cap

69 RM 20174561

  • RM 20174561 - Гидроцилиндр

70 RM 20174561

  • RM 20174561 - Гидроцилиндр
