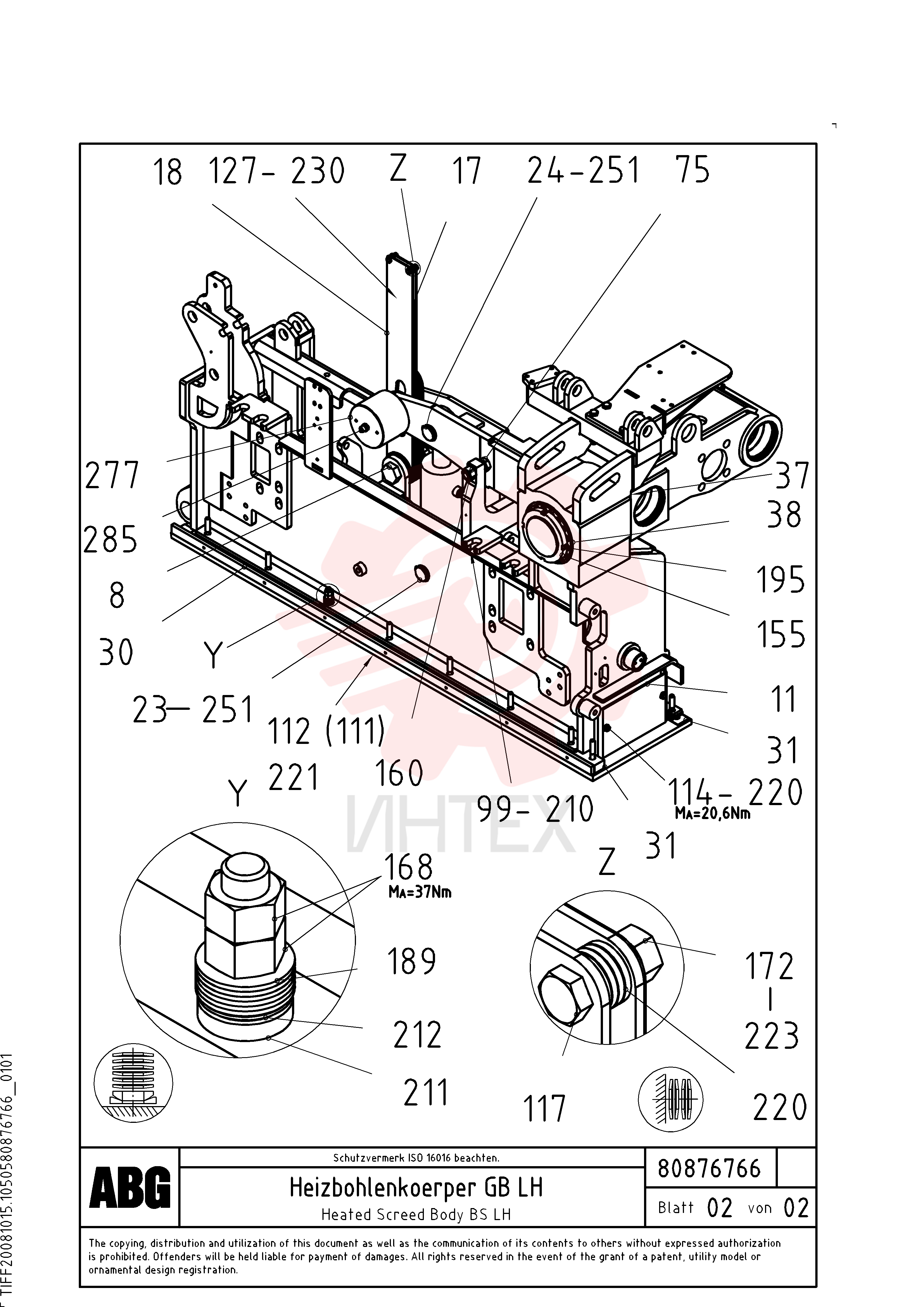

Screed Plate RM 80617327

Screed Plate RM 80617327

Screed Plate RM 80617327

1 RM 80617327

  • RM 80617327 - Screed Plate
  • S/N 15672 -

2 RM 80617335

  • RM 80617335 - Screed Plate
  • S/N 15672 -

3 RM 87965943

  • RM 87965943 - Кронштейн

4 RM 80762537

  • RM 80762537 - Шайба
  • S/N 17001 -

5 RM 80854011

  • RM 80854011 - Болт
  • S/N 20925 -

6 RM 80853997

  • RM 80853997 - Болт
  • S/N 20925 -

7 RM 96713219

  • RM 96713219 - Винт шестигранник

8 RM 96713219

  • RM 96713219 - Винт шестигранник

9 RM 96713185

  • RM 96713185 - Винт шестигранник

10 RM 96713185

  • RM 96713185 - Винт шестигранник

11 RM 96722103

  • RM 96722103 - Винт шестигранник

12 RM 96722103

  • RM 96722103 - Винт шестигранник

13 RM 96713177

  • RM 96713177 - Винт шестигранник

14 RM 96713177

  • RM 96713177 - Винт шестигранник

15 RM 96714225

  • RM 96714225 - Винт шестигранник

16 RM 96714225

  • RM 96714225 - Винт шестигранник

17 RM 54490438

  • RM 54490438 - Strap

18 RM 96720933

  • RM 96720933 - Hexagon nut

19 RM 96720933

  • RM 96720933 - Hexagon nut

20 RM 13905021

  • RM 13905021 - Гайка

21 RM 54504436

  • RM 54504436 - Strap

22 RM 96720925

  • RM 96720925 - Hexagon nut

23 RM 96720925

  • RM 96720925 - Hexagon nut

24 RM 96719174

  • RM 96719174 - Hexagon nut
  • S/N 16992 -

25 RM 96719174

  • RM 96719174 - Hexagon nut
  • S/N 16992 -

26 RM 54504352

  • RM 54504352 - Strap

27 RM 96712799

  • RM 96712799 - Hexagon nut

28 RM 96712799

  • RM 96712799 - Hexagon nut

29 RM 54504394

  • RM 54504394 - Strap

30 RM 96725957

  • RM 96725957 - Плоская шайба

31 RM 14272140

  • RM 14272140 - Шайба пружинная

32 RM 14272140

  • RM 14272140 - Шайба пружинная

33 RM 14108344

  • RM 14108344 - Шайба пружинная
  • S/N 16992 -

34 RM 14108344

  • RM 14108344 - Шайба пружинная
  • S/N 16992 -

35 RM 13905112

  • RM 13905112 - Locking Plate

36 RM 80773914

  • RM 80773914 - Pivot Joint
  • S/N 17001 -

37 RM 80773922

  • RM 80773922 - Pivot Joint
  • S/N 17001 -

38 RM 56292147

  • RM 56292147 - Крышка

39 RM 14261002

  • RM 14261002 - Стопорная шайба (кольцо)

40 RM 14261002

  • RM 14261002 - Стопорная шайба (кольцо)

41 RM 58838293

  • RM 58838293 - Вставка

42 RM 58838293

  • RM 58838293 - Вставка

43 RM 58838285

  • RM 58838285 - Шайба

44 RM 58838285

  • RM 58838285 - Шайба

45 RM 54505235

  • RM 54505235 - Опора

46 RM 58854316

  • RM 58854316 - Стопорная шайба (кольцо)

47 RM 58854316

  • RM 58854316 - Стопорная шайба (кольцо)

48 RM 13999131

  • RM 13999131 - Стопорная шайба (кольцо)

49 RM 13999131

  • RM 13999131 - Стопорная шайба (кольцо)

50 RM 96712898

  • RM 96712898 - Плоская шайба

51 RM 96712898

  • RM 96712898 - Плоская шайба

52 RM 54496997

  • RM 54496997 - Болт

53 RM 58832916

  • RM 58832916 - Стопорная шайба (кольцо)

54 RM 58832916

  • RM 58832916 - Стопорная шайба (кольцо)

55 RM 54497029

  • RM 54497029 - Болт

56 RM 54491014

  • RM 54491014 - Шайба
  • S/N 16873 -

57 RM 96711601

  • RM 96711601 - Retaining ring

58 RM 54505102

  • RM 54505102 - Шайба
  • S/N 16873 -

59 RM 54505094

  • RM 54505094 - Шайба
  • S/N 16873 -

60 RM 54481916

  • RM 54481916 - Гидроцилиндр

61 RM 54586953

  • RM 54586953 - Sealing Kit

62 RM 54586995

  • RM 54586995 - Sealing Kit

63 RM 56296957

  • RM 56296957 - Brake Cylinder

64 RM 54490214

  • RM 54490214 - Шайба
  • S/N 16873 -

65 RM 80845811

  • RM 80845811 - Адаптер

66 RM 54504444

  • RM 54504444 - Корпус клапана

67 RM 54476817

  • RM 54476817 - Strip

68 RM 58823790

  • RM 58823790 - Lubricating nipple

69 RM 58823790

  • RM 58823790 - Lubricating nipple

70 RM 10645208

  • RM 10645208 - Spring pin

71 RM 54477062

  • RM 54477062 - Прокладка стекла

72 RM 54481999

  • RM 54481999 - Bearing Arrangement

73 RM 54481981

  • RM 54481981 - Bearing Arrangement

74 RM 54501556

  • RM 54501556 - Тарелка клапана

75 RM 54501549

  • RM 54501549 - Тарелка клапана

76 RM 54501549

  • RM 54501549 - Тарелка клапана

77 RM 80640865

  • RM 80640865 - Mounting Plate
  • S/N 15322 -

78 RM 80640857

  • RM 80640857 - Mounting plate
  • S/N 15322 -

79 RM 80640857

  • RM 80640857 - Mounting plate
  • S/N 15322 -

80 RM 80856784

  • RM 80856784 - Nozzle

81 RM 54504451

  • RM 54504451 - Scale

82 RM 96722368

  • RM 96722368 - Винт шестигранник

83 RM 96722368

  • RM 96722368 - Винт шестигранник

84 RM 54492905

  • RM 54492905 - Щуп

85 RM 96718770

  • RM 96718770 - Винт шестигранник

86 RM 96718770

  • RM 96718770 - Винт шестигранник

87 RM 96718903

  • RM 96718903 - Винт шестигранник

88 RM 96718903

  • RM 96718903 - Винт шестигранник

89 RM 96718879

  • RM 96718879 - Винт шестигранник

90 RM 96718879

  • RM 96718879 - Винт шестигранник
