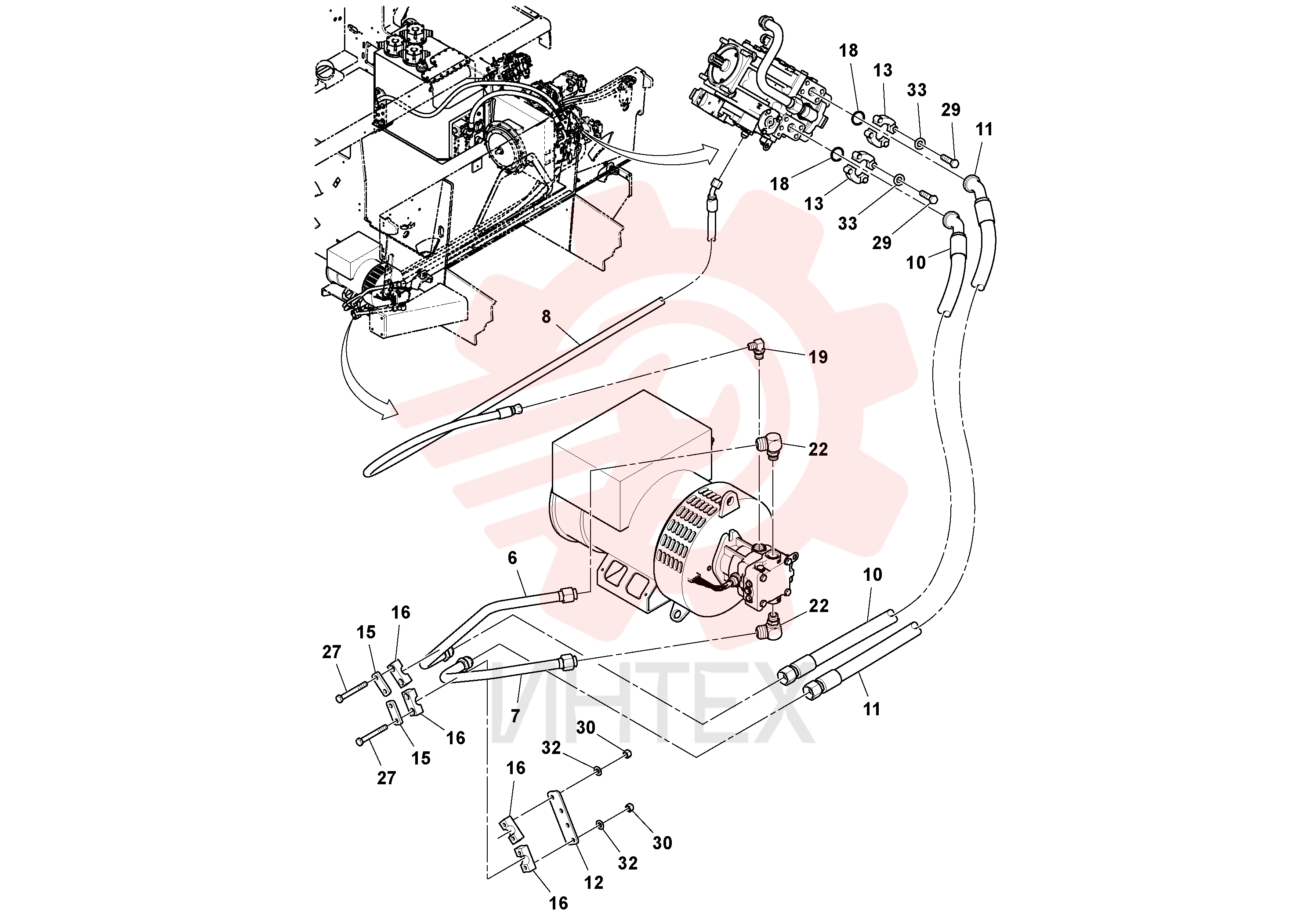

Hose assembly RM 43824440

Hose assembly RM 43824440

Hose assembly RM 43824440

1 RM 43824440

  • RM 43824440 - Hose assembly

2 RM 43824465

  • RM 43824465 - Hose assembly

3 RM 43824499

  • RM 43824499 - Кронштейн

4 RM 58901653

  • RM 58901653 - Зажим

5 RM 58901653

  • RM 58901653 - Зажим

6 RM 59583609

  • RM 59583609 - Шайба

7 RM 59583609

  • RM 59583609 - Шайба

8 RM 59607432

  • RM 59607432 - Зажим

9 RM 59607432

  • RM 59607432 - Зажим

10 RM 59993881

  • RM 59993881 - Кольцо уплотнительное (О-кольцо)

11 RM 59993881

  • RM 59993881 - Кольцо уплотнительное (О-кольцо)

12 RM 95303350

  • RM 95303350 - Адаптер

13 RM 95303350

  • RM 95303350 - Адаптер

14 RM 95368890

  • RM 95368890 - Адаптер

15 RM 95368890

  • RM 95368890 - Адаптер

16 RM 95935144

  • RM 95935144 - Винт шестигранник

17 RM 95939922

  • RM 95939922 - Винт шестигранник

18 RM 95939922

  • RM 95939922 - Винт шестигранник

19 RM 95943254

  • RM 95943254 - Lock nut

20 RM 95943254

  • RM 95943254 - Lock nut

21 RM 96714399

  • RM 96714399 - Плоская шайба

22 RM 96714399

  • RM 96714399 - Плоская шайба

23 RM 96738596

  • RM 96738596 - Шайба

24 RM 43860766

  • RM 43860766 - Трубка

25 RM 43824267

  • RM 43824267 - Трубка

26 RM 43824408

  • RM 43824408 - Hose assembly
