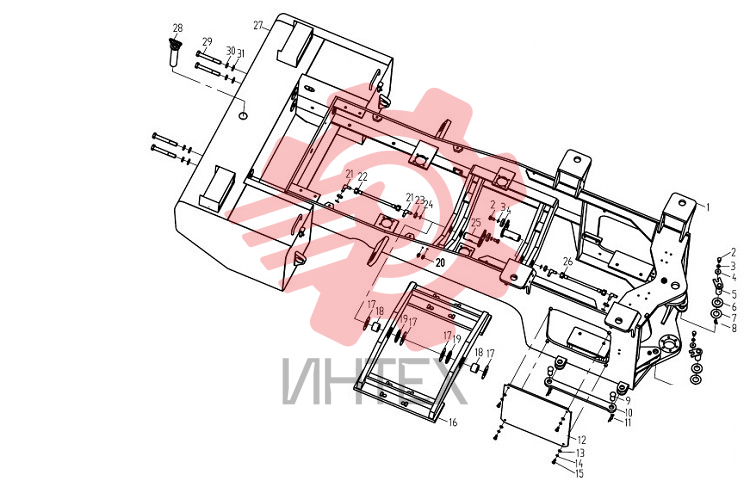

Система задней рамы (часть3)
1 252603818
- 252603818 - Rear Chassis
- Кол-во: 1
- (centralized lubrication)
1 252603836
- 252603836 - Rear Chassis
- Кол-во: 1
- (non-centralized lubrication)
2 805000714
- 805000714 - Bolt
- Кол-во: 4
- GB/T5783-2000 M10×20
3 805300014
- 805300014 - Washer
- Кол-во: 4
- GB/T93-1987 10
4 250100183
- 250100183 - Washer
- Кол-во: 4
5 251900394
- 251900394 - Steering Pin
- Кол-во: 2
6 251901033
- 251901033 - Shim
- Кол-во: 2
7 251901034
- 251901034 - Shim
- Кол-во: 2
8 801100339
- 801100339 - Grease Cup
- Кол-во: 2
- JB/T7940.2-1995 (non-centralized lubrication) 45°M10×1
9 805601624
- 805601624 - Pin shaft
- Кол-во: 2
- GB/T882-1986 B32×70
10 252900392
- 252900392 - Chassis Lock rod
- Кол-во: 1
11 250900710
- 250900710 - Catch Spring
- Кол-во: 2
12 252603834
- 252603834 - Right baffle
- Кол-во: 1
- (centralized lubrication n)
12 252600715
- 252600715 - Right baffle
- Кол-во: 1
- (non-centralized lubrication)
13 805301353
- 805301353 - Washer
- Кол-во: 9
- GB/T97.1-2002 8
14 805302458
- 805302458 - Lock Washer
- Кол-во: 9
- GB/T93-1987 8
15 805000033
- 805000033 - Bolt
- Кол-во: 9
- GB/T5783-2000 M8×16
16 252600382
- 252600382 - Auxiliary Chassis
- Кол-во: 1
17 269900185
- 269900185 - Adjusting Shim
- Кол-во: 4
18 250100180
- 250100180 - Bushing
- Кол-во: 2
19 250200178
- 250200178 - Washer
- Кол-во: 2
20 801100336
- 801100336 - Grease Cup
- Кол-во: 2
- JB/T7940.1-1995 (non-centralized lubrication) M10×1
21 803163961
- 803163961 - Joint body
- Кол-во: 4
- GB/T5631.2-1985 (non-centralized lubrication) 6
22 252600383
- 252600383 - Rear Pin Grease Tube
- Кол-во: 1
- (non-centralized lubrication)
23 805200165
- 805200165 - Locking Nut
- Кол-во: 4
- GB/T5649-1985 non-centralized lubrication 6
24 805300037
- 805300037 - Shim
- Кол-во: 4
- JB982-77 non-centralized lubrication 10
25 250100212
- 250100212 - Pin of Auxiliary Chassis
- Кол-во: 2
26 252600381
- 252600381 - Front Pin Grease Tube
- Кол-во: 1
- non-centralized lubrication
27 252603828
- 252603828 - Counterweight Assembly
- Кол-во: 1
28 250100646
- 250100646 - Traction Pin
- Кол-во: 1
29 805001911
- 805001911 - Bolt
- Кол-во: 4
- GB/T5782-2000 M24×180
30 805301289
- 805301289 - Washer
- Кол-во: 4
- GB/T93-1987 24
31 805300021
- 805300021 - Washer
- Кол-во: 4
- GB/T97.1-2002 24
