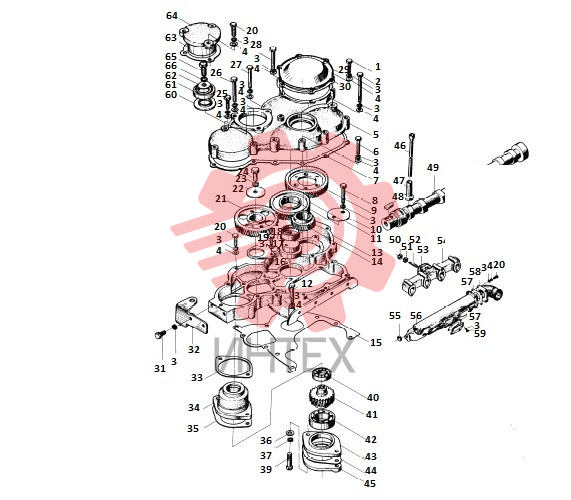

Система газообменная
2 GBT57822000
- GBT57822000 - Bolt M8x80
- Кол-во: 2
3 BGT931987
- BGT931987 - Spring washer 8
- Кол-во: 35
5 NB485BPG16001
- NB485BPG16001 - Gear housing cover
- Кол-во: 1
6 GBT57822000
- GBT57822000 - Bolt M8x45
- Кол-во: 2
7 NA485BPG16002
- NA485BPG16002 - Gasket
- Кол-во: 1
8 GBT57822000
- GBT57822000 - Bolt M8x50
- Кол-во: 2
9 NA485BPG02003
- NA485BPG02003 - Timing gear for injection pump
- Кол-во: 1
10 NA385B02012
- NA385B02012 - Clamping plate for timing idle gear
- Кол-во: 1
11 NA485BPG02006
- NA485BPG02006 - Timing idle gear
- Кол-во: 1
12 GBT57822000
- GBT57822000 - Bolt M8x50
- Кол-во: 1
13 NA485BPG16003
- NA485BPG16003 - Gear housing
- Кол-во: 1
14 NA485BPG02007
- NA485BPG02007 - Timing gear for crankshaft
- Кол-во: 1
15 NA485BPG16009
- NA485BPG16009 - Gear housing gasket
- Кол-во: 1
16 NA358B02008
- NA358B02008 - Stopping plate for camshaft
- Кол-во: 1
17 NA485BPG02004A
- NA485BPG02004A - Timing idle gear shaft
- Кол-во: 1
18 NA485BPG02005
- NA485BPG02005 - Timing idle gear bush
- Кол-во: 1
20 GBT57832000
- GBT57832000 - Bolt M8x25
- Кол-во: 9
21 NA485BPG02009
- NA485BPG02009 - Camshaft timing gear
- Кол-во: 1
22 NA385B02011
- NA385B02011 - Clamping plate for camshaft tinging gear
- Кол-во: 1
24 GBT57832000
- GBT57832000 - Bolt M12x30
- Кол-во: 1
25 GBT57822000
- GBT57822000 - Bolt M8x40
- Кол-во: 3
26 GBT57822000
- GBT57822000 - Bolt M8x65
- Кол-во: 2
27 GBT57822000
- GBT57822000 - Bolt M8x60
- Кол-во: 1
28 GBT57822000
- GBT57822000 - Bolt M8x75
- Кол-во: 2
29 NA385B16005
- NA385B16005 - Adancer Cover
- Кол-во: 1
30 NA385B16006
- NA385B16006 - Adancer cover gasket
- Кол-во: 1
31 GBT57832000
- GBT57832000 - Bolt M8x20
- Кол-во: 2
32 NA485BPG53002
- NA485BPG53002 - Electric generator
- Кол-во: 1
33 NA485BPG16021
- NA485BPG16021 - Bracket gasket
- hydraulic pump gear
- Кол-во: 1
34 NA485BPG16020
- NA485BPG16020 - Bracket
- hydraulic pump gear
- Кол-во: 1
35 NA485BPG16022
- NA485BPG16022 - Connecting plate gasket
- hydraulic pump
- Кол-во: 1
36 GBT9711985
- GBT9711985 - Washer 8-140HV
- Кол-во: 25
36 GBT9711985
- GBT9711985 - Washer
- Кол-во: 2
37 GBT931987
- GBT931987 - Spring washer 10
- Кол-во: 2
38 GBT57822000
- GBT57822000 - Bolt M10x50
- Кол-во: 2
39 GBT57822000
- GBT57822000 - Bolt M8x35
- Кол-во: 4
41 NA485BPG02017
- NA485BPG02017 - Hydraulic pump gear
- Кол-во: 1
42 GBT2921994
- GBT2921994 - Bearing 7008C
- Кол-во: 1
43 NA485BPG16023
- NA485BPG16023 - Hydraulic pump connector plate
- Кол-во: 1
44 NA485BPG16024
- NA485BPG16024 - Hydraulic pump gasket
- Кол-во: 1
45 NA485BPG16025
- NA485BPG16025 - End cap
- Кол-во: 1
46 NA385B06003
- NA385B06003 - Push rod
- Кол-во: 8
47 NA385B06002
- NA385B06002 - Tappet
- Кол-во: 8
48 GBT10961988
- GBT10961988 - Kep C10x25
- Кол-во: 1
49 NB485BPG06001
- NB485BPG06001 - Camshaft
- Кол-во: 1
50 GBT61732000
- GBT61732000 - Nut M8x1-H62
- Кол-во: 4
51 GBT61712000
- GBT61712000 - Nut M8x1-H62
- Кол-во: 4
52 GBT8981988
- GBT8981988 - Stud GM8
- Кол-во: 4
54 NA485B080013
- NA485B080013 - Exhaust manifold
- Кол-во: 1
55 ZBT3200388
- ZBT3200388 - Bowl plug 30
- Кол-во: 1
56 NA485B09002
- NA485B09002 - Intake tube
- Кол-во: 1
57 NA385B09004
- NA385B09004 - Intake connecting tube gasket
- Кол-во: 1
58 NA485BPG090032
- NA485BPG090032 - Intake connecting tube
- Кол-во: 1
59 GB57832000
- GB57832000 - Bolt M8x20
- Кол-во: 4
59 GBT2761994
- GBT2761994 - Bearing 6204
- Кол-во: 1
60 NB485BPG16033
- NB485BPG16033 - Bearing plate
- Кол-во: 1
61 GBT2761994
- GBT2761994 - Bearing 6005
- Кол-во: 1
62 NB485BPG16032
- NB485BPG16032 - Bearing cover plate
- Кол-во: 1
63 NB485BPG16034
- NB485BPG16034 - Camshaft bearing seat pad
- Кол-во: 1
63 GBT57832000
- GBT57832000 - Bolt M10x25
- Кол-во: 1
64 NB485BPG16031
- NB485BPG16031 - Camshaft bearing seat
- Кол-во: 1
64 GBT931987
- GBT931987 - Spring washer 10
- Кол-во: 1
65 GBT57832000
- GBT57832000 - Bolt M8x20
- Кол-во: 2
66 GBT931987
- GBT931987 - Spring washer 12
- Кол-во: 1
