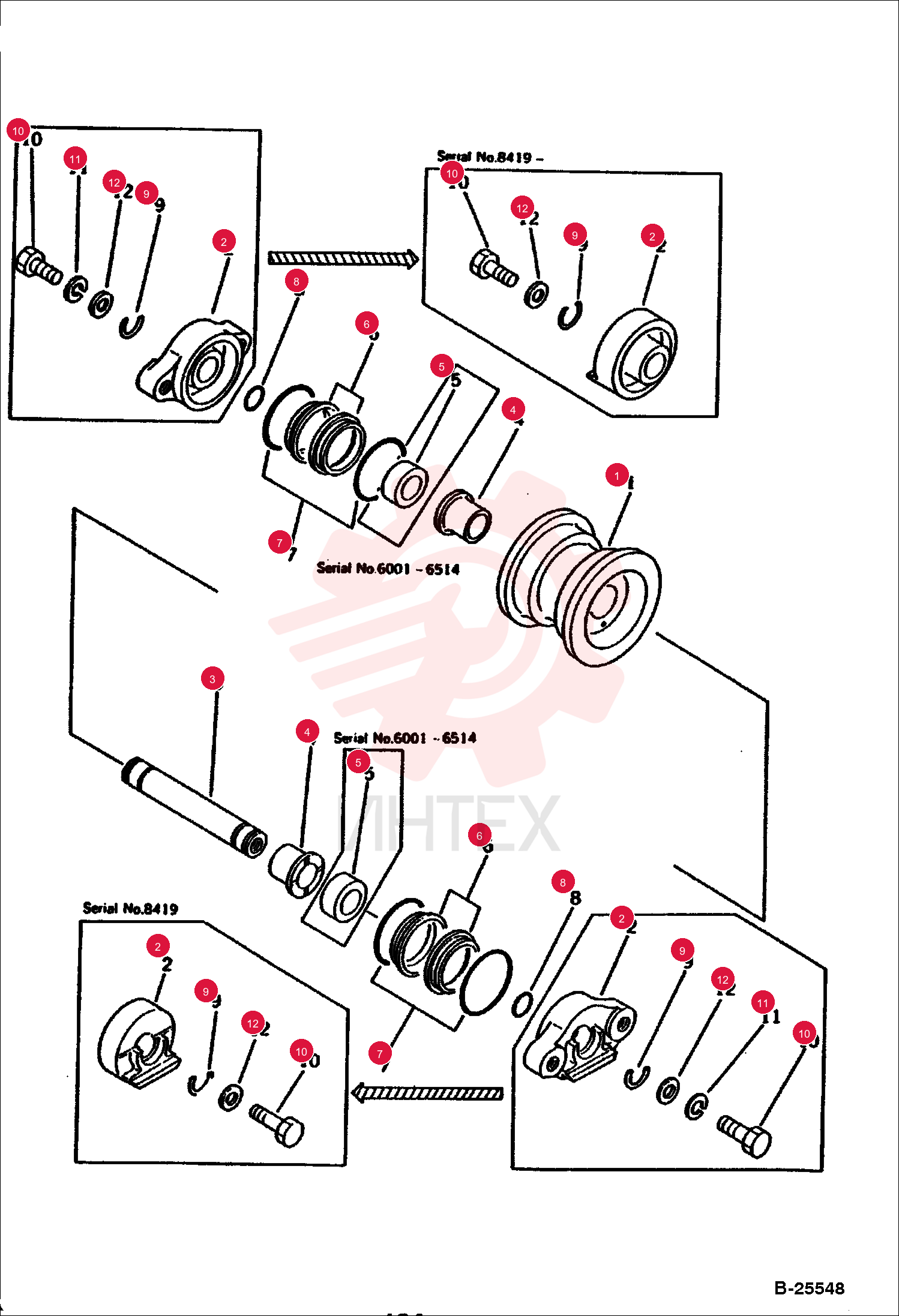

TRACK R A 6653477

TRACK R A 6653477

TRACK R A 6653477

1 6653477

  • 6653477 - TRACK R A

2 6673837

  • 6673837 - ROLLER

3 6637813

  • 6637813 - ROLLER

4 6638553

  • 6638553 - COLLAR

5 6638254

  • 6638254 - COLLAR

6 6637814

  • 6637814 - SHAFT

7 6637815

  • 6637815 - BUSHING

8 6637816

  • 6637816 - COLLAR

9 6640845

  • 6640845 - RING ASSY

10 6642178

  • 6642178 - RING ASSY

11 6637843

  • 6637843 - SEAL

12 6642179

  • 6642179 - O-RING AS

13 6637842

  • 6637842 - O-RING

14 6637342

  • 6637342 - O-RING

15 6640872

  • 6640872 - RING
  • SNAP

16 6636992

  • 6636992 - BOLT

17 6637137

  • 6637137 - WASHER

18 6637159

  • 6637159 - WASHER
