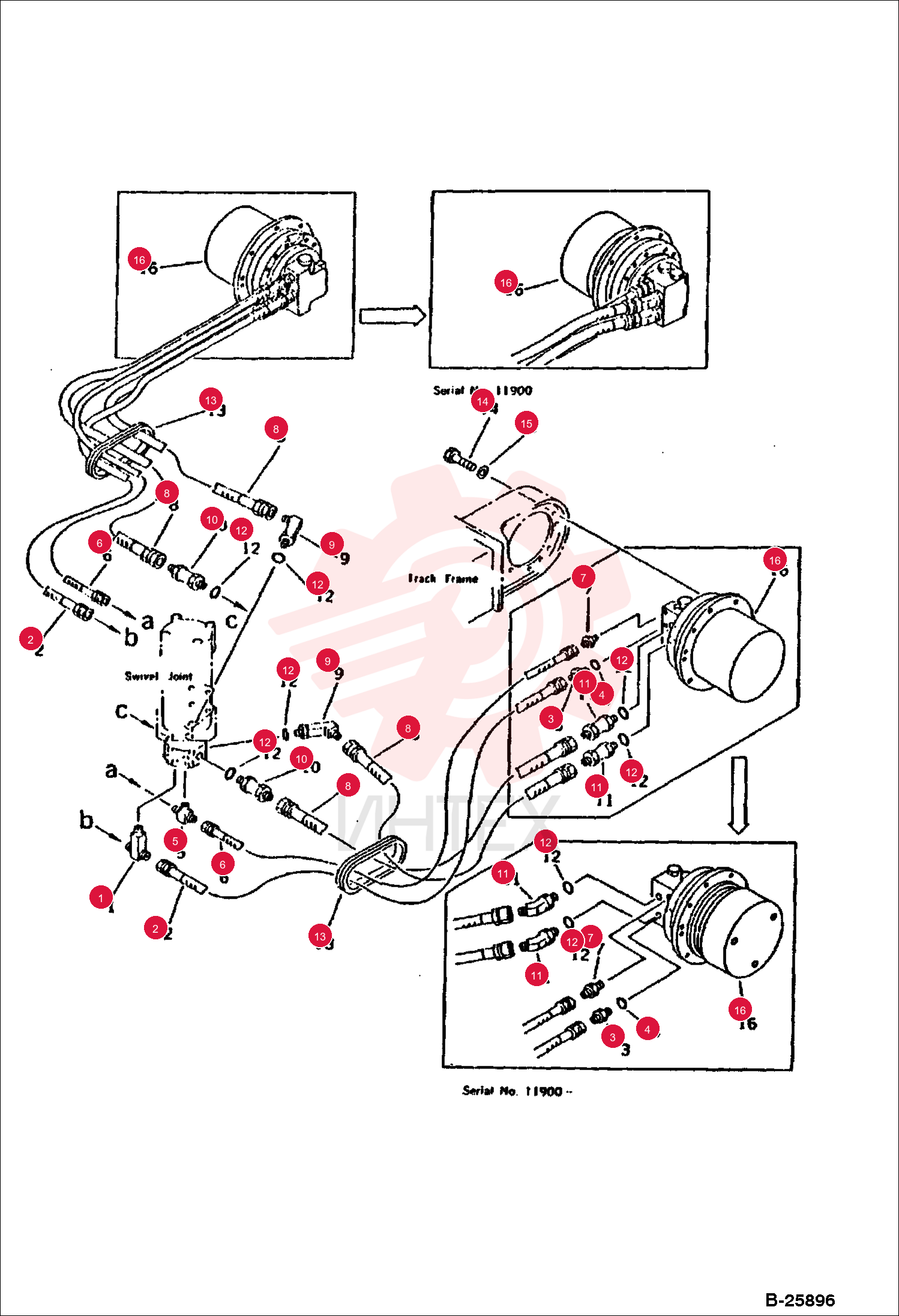

LONG TEE 6665415

LONG TEE 6665415

LONG TEE 6665415

1 6665415

  • 6665415 - LONG TEE

2 6639397

  • 6639397 - NIPPLE

3 6637579

  • 6637579 - NIPPLE

4 6637414

  • 6637414 - O-RING

5 6665414

  • 6665414 - SHORT TEE

6 6637494

  • 6637494 - HOSE

7 6637494

  • 6637494 - HOSE

8 6637888

  • 6637888 - NIPPLE

9 6665416

  • 6665416 - ELBOW

10 6665417

  • 6665417 - CONNECTOR

11 6658643

  • 6658643 - NIPPLE

12 6637417

  • 6637417 - O-RING

13 6636981

  • 6636981 - BOLT

14 6636980

  • 6636980 - BOLT

15 6637136

  • 6637136 - WASHER

16 6652049

  • 6652049 - MOTOR ASSEMBLY
