Bobcat
/
116
/

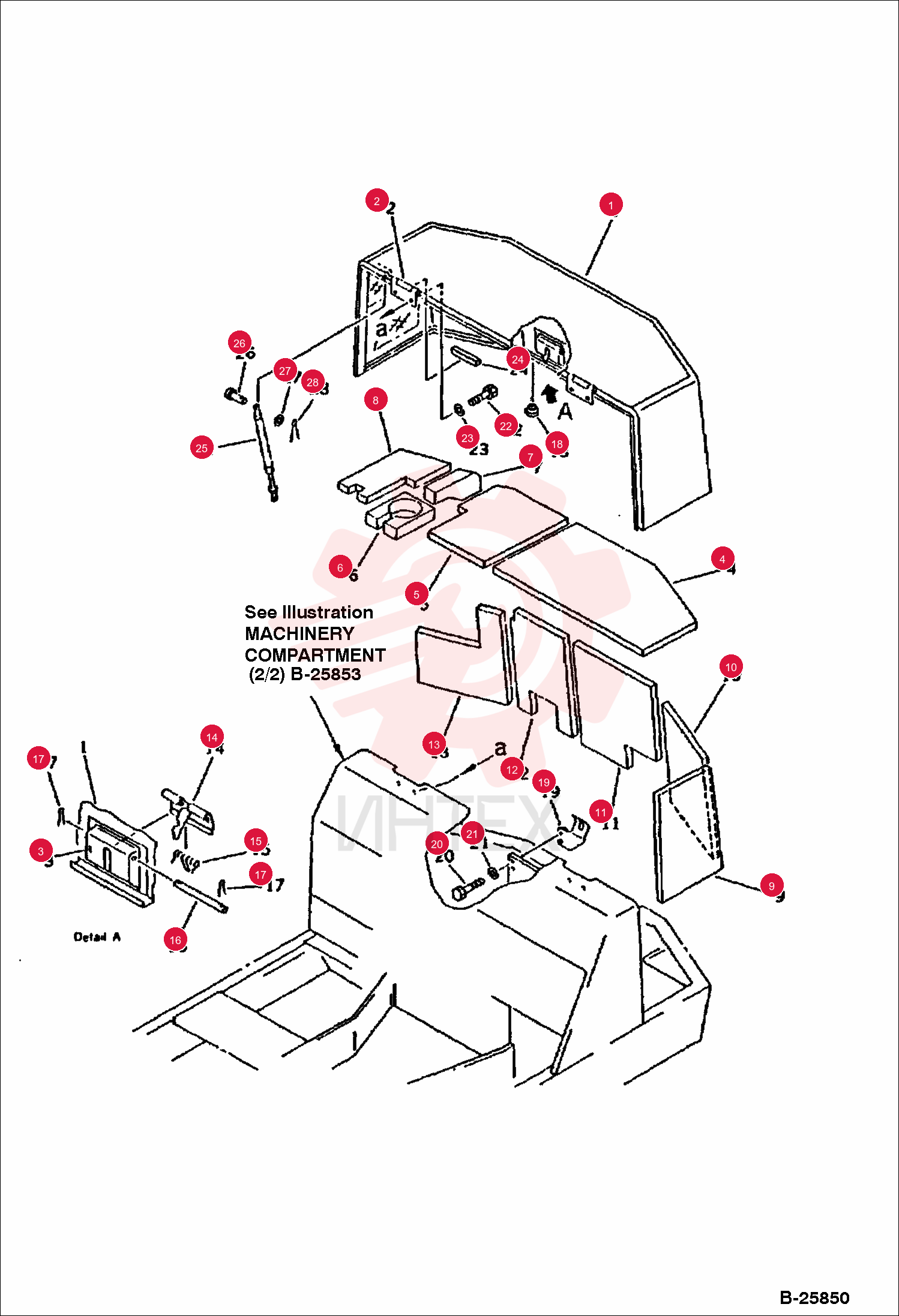

SHEET 6654770 (1)

SHEET 6654770 (1)

SHEET 6654770 (1)

1 6654770

  • 6654770 - SHEET

2 6654771

  • 6654771 - SHEET

3 6639477

  • 6639477 - SHEET

4 6654772

  • 6654772 - SHEET

5 6654773

  • 6654773 - SHEET

6 6654774

  • 6654774 - SHEET

7 6654775

  • 6654775 - SHEET

8 6654776

  • 6654776 - SHEET

9 6654777

  • 6654777 - SHEET

10 6654778

  • 6654778 - SHEET

11 6638779

  • 6638779 - LEVER

12 6639464

  • 6639464 - SPRING

13 6638780

  • 6638780 - PIN

14 6637198

  • 6637198 - PIN
  • COTTER

15 6639202

  • 6639202 - STOPPER

16 6636968

  • 6636968 - BOLT

17 6637157

  • 6637157 - WASHER

18 6636946

  • 6636946 - BOLT

19 6637157

  • 6637157 - WASHER

20 6642928

  • 6642928 - SEAL

21 6637146

  • 6637146 - WASHER

22 6637197

  • 6637197 - PIN
  • COTTER
