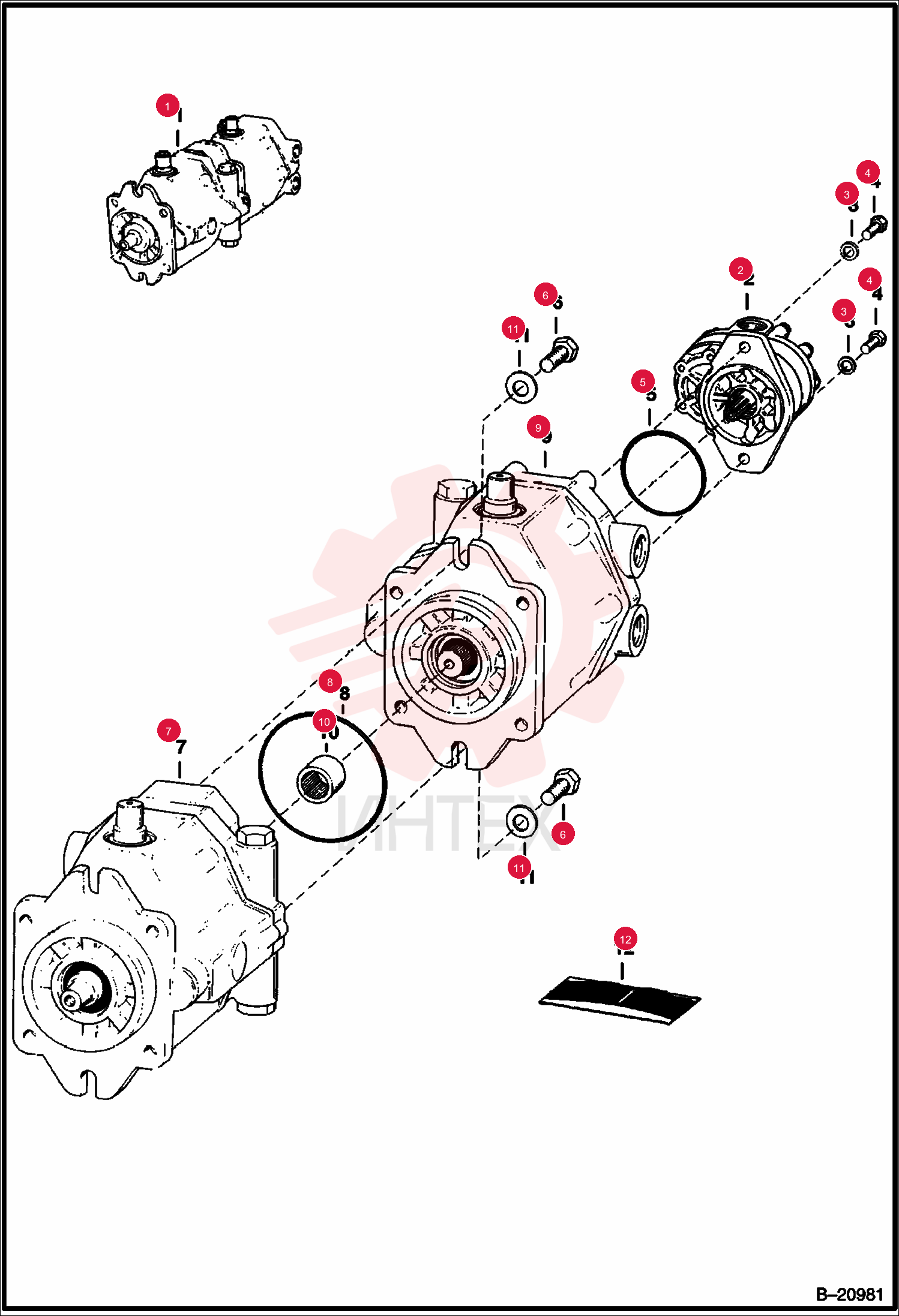

PUMP, GEAR 6631909

PUMP, GEAR 6631909

PUMP, GEAR 6631909

1 6631909

  • 6631909 - PUMP
  • GEAR
  • GEAR

2 6510585

  • 6510585 - SEAL
  • WASHER

3 17C616

  • 17C616 - BOLT 5

4 25K20308

  • 25K20308 - O RING 10

5 17C1024

  • 17C1024 - BOLT

6 6513976

  • 6513976 - PUMP
  • HYD REAR
  • REAR

7 58K353

  • 58K353 - O RING

8 6514002

  • 6514002 - CONNECTOR

9 6513980

  • 6513980 - WASHER

10 6632044

  • 6632044 - SEAL KIT
  • complete pump
