Bobcat
/
1213
/

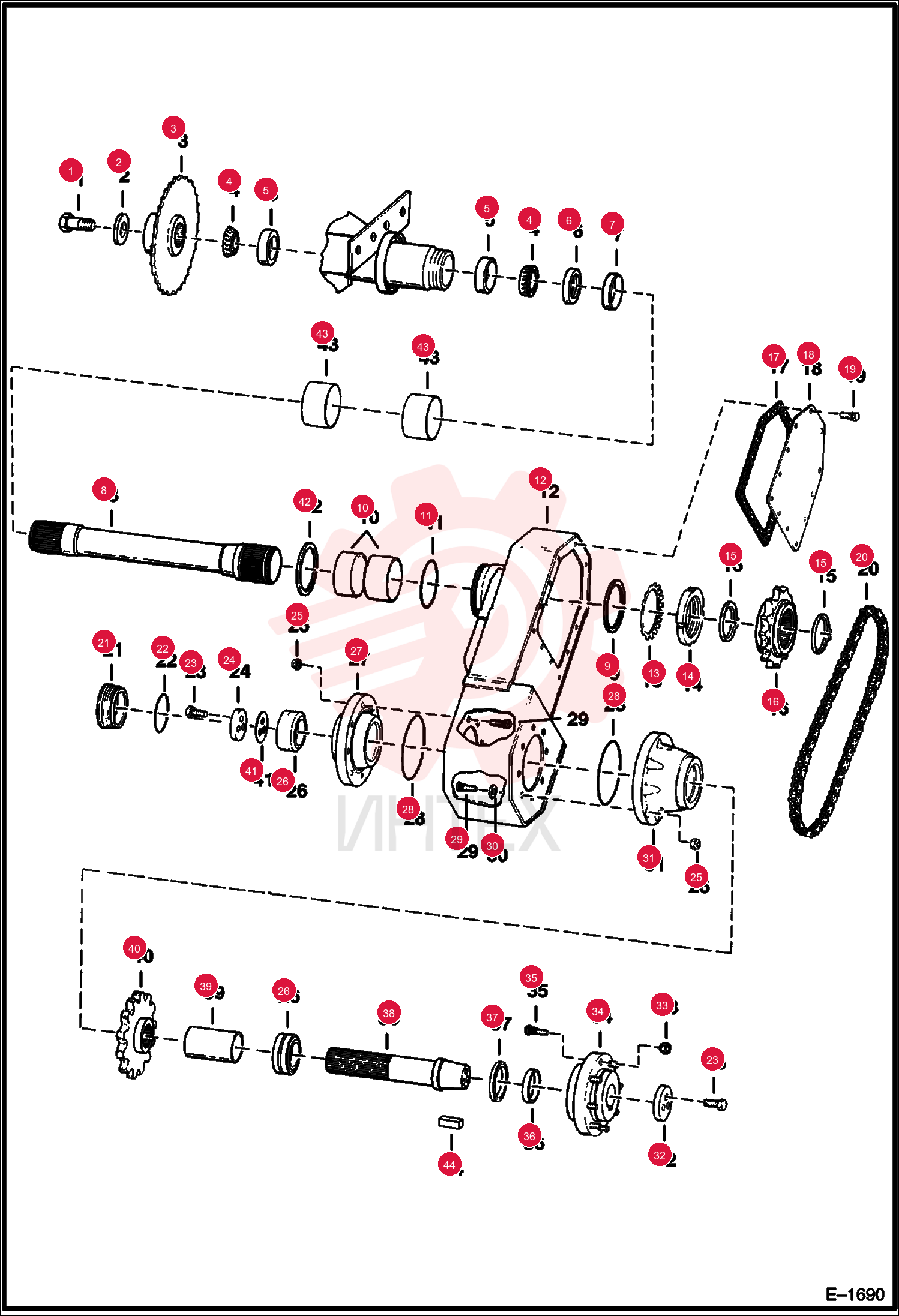

SCREW 18C1628 (1)

SCREW 18C1628 (1)

SCREW 18C1628 (1)

1 18C1628

  • 18C1628 - SCREW

2 6558694

  • 6558694 - WASHER

3 6568918

  • 6568918 - SPROCKET
  • AXLE

4 1321608

  • 1321608 - BEARING
  • CONE

5 1321607

  • 1321607 - CUP
  • BEARING

6 6658229

  • 6658229 - SEAL
  • OIL
  • Was 6513451

7 6558693

  • 6558693 - BUSHING
  • WEAR

8 6568372

  • 6568372 - AXLE

9 6577124

  • 6577124 - BEARING
  • THRUST
  • thrust

10 6630864

  • 6630864 - SEAL

11 6575650

  • 6575650 - AXLE SUPP
  • Was 6567389

12 6568592

  • 6568592 - LOCK WASH
  • lock

13 6578512

  • 6578512 - NUT
  • Was 6568593

14 1307921

  • 1307921 - SNAP RING

15 6568374

  • 6568374 - SPROCKET
  • Was 6568344

16 6567393

  • 6567393 - GASKET

17 6567387

  • 6567387 - COVER

18 84G3710

  • 84G3710 - SCREW

19 6567165

  • 6567165 - CHAIN
  • Less Connector Link

20 6567119

  • 6567119 - LINK
  • CONNECTING
  • connector - Diamond

21 6631640

  • 6631640 - LINK
  • CONNECTING
  • connector - Tsubaki

22 6567159

  • 6567159 - CAP

23 25K40420

  • 25K40420 - O RING

24 17C1024

  • 17C1024 - BOLT

25 6569276

  • 6569276 - CAP

26 86D8

  • 86D8 - NUT PRETRQ HEX LOCK

27 6630236

  • 6630236 - BEARING ASSEMBLY

28 6648452

  • 6648452 - BEARING

29 6648453

  • 6648453 - RACE

30 6567155

  • 6567155 - FLANGE

31 25K40708

  • 25K40708 - O RING 10

32 6568591

  • 6568591 - WHEEL BLT

33 6567375

  • 6567375 - WASHER

34 6567152

  • 6567152 - FLANGE

35 6565947

  • 6565947 - CAP

36 6564669

  • 6564669 - NUT WHEEL
  • Was 6519169

37 6567185

  • 6567185 - HUB
  • W/Ref. 24

38 6709170

  • 6709170 - BOLT WHEEL
  • Was 6559502

39 6630151

  • 6630151 - SLEEVE WR

40 6630142

  • 6630142 - SEAL AXLE

41 6567214

  • 6567214 - AXLE SHFT
  • axle

42 6567158

  • 6567158 - TUBE

43 6567169

  • 6567169 - SPROCKET

44 6565975

  • 6565975 - SHIM
  • 0.005

45 6577123

  • 6577123 - BEARING
  • THRUST
  • thrust

46 6575640

  • 6575640 - SLEEVE
  • wear

47 7J10208

  • 7J10208 - KEY
