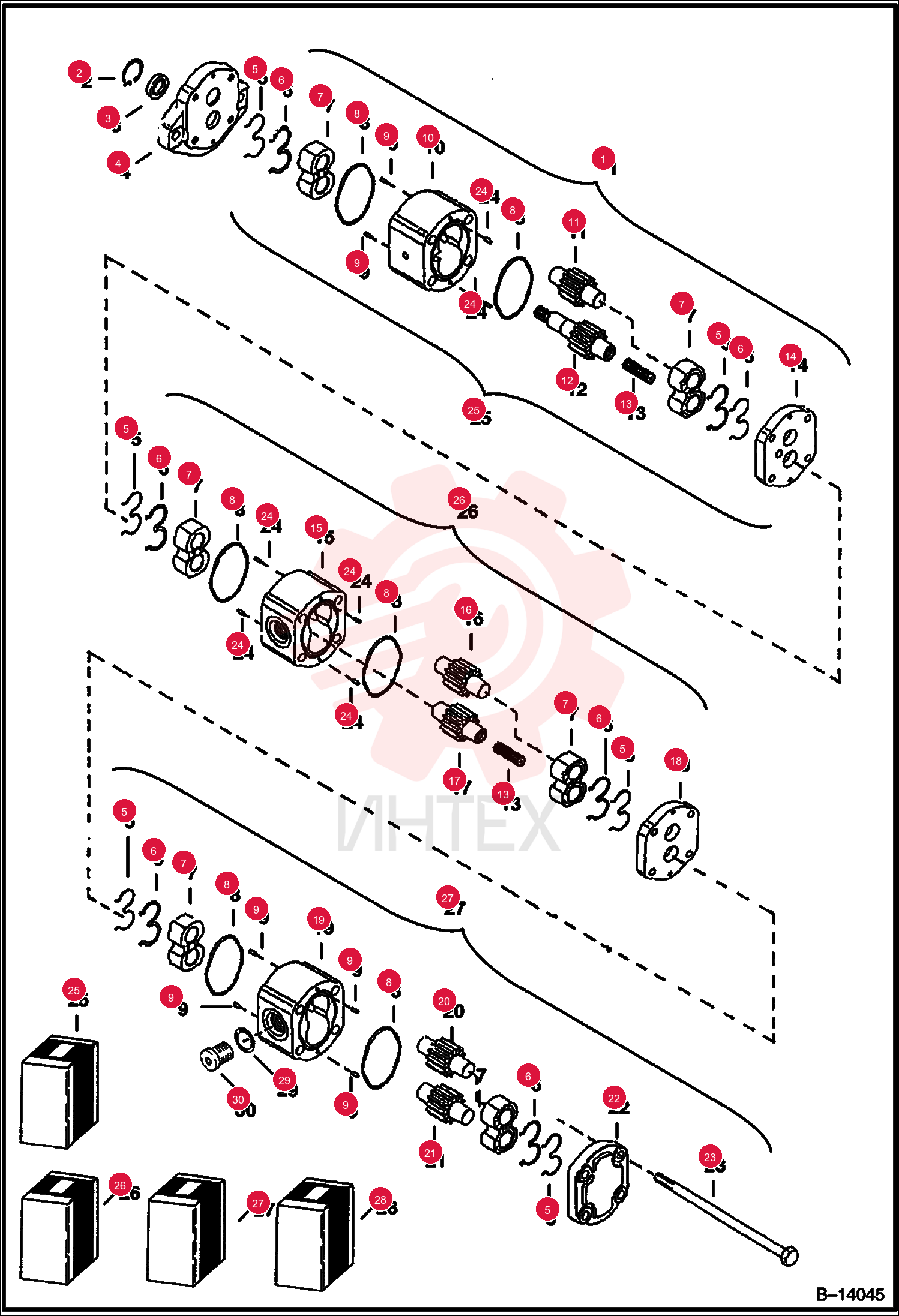

PUMP, GEAR TRIPLE
1 6679080
- 6679080 - PUMP
- GEAR TRIPLE
- W/Ref. 2-24 & 29
2 6662925
- 6662925 - SNAP RING
3 6662926
- 6662926 - SEAL
- incl. W/Ref. 28
4 6663978
- 6663978 - COVER
- front
5 6663979
- 6663979 - BEARING
6 6662929
- 6662929 - PIN
- DOWEL
- .403" (10
- 25mm) long
7 6670632
- 6670632 - SHAFT
- drive
8 6663989
- 6663989 - PLATE
9 6664583
- 6664583 - PLATE
10 6662932
- 6662932 - COVER
- end
11 6670631
- 6670631 - BOLT
12 6665621
- 6665621 - DOWEL PIN
- .716 inch (18
- 2mm) long
13 6670626
- 6670626 - KIT
- SECTION
- Ref. 5 (2)
- 6 (2)
- 7 (2)
- 8 (2)
- 9 (2)
- 19 (1)
- 20 (1)
- 21 (1) & 24 (2)
14 6663990
- 6663990 - SEAL KIT
- Ref. 3 (1)
- 5 (6)
- 6 (6) & 8 (6)
15 6679282
- 6679282 - PLUG ASSEMBLY
- W/Ref. 30
16 95K12
- 95K12 - O-RING
