Bobcat
/
320.0
/

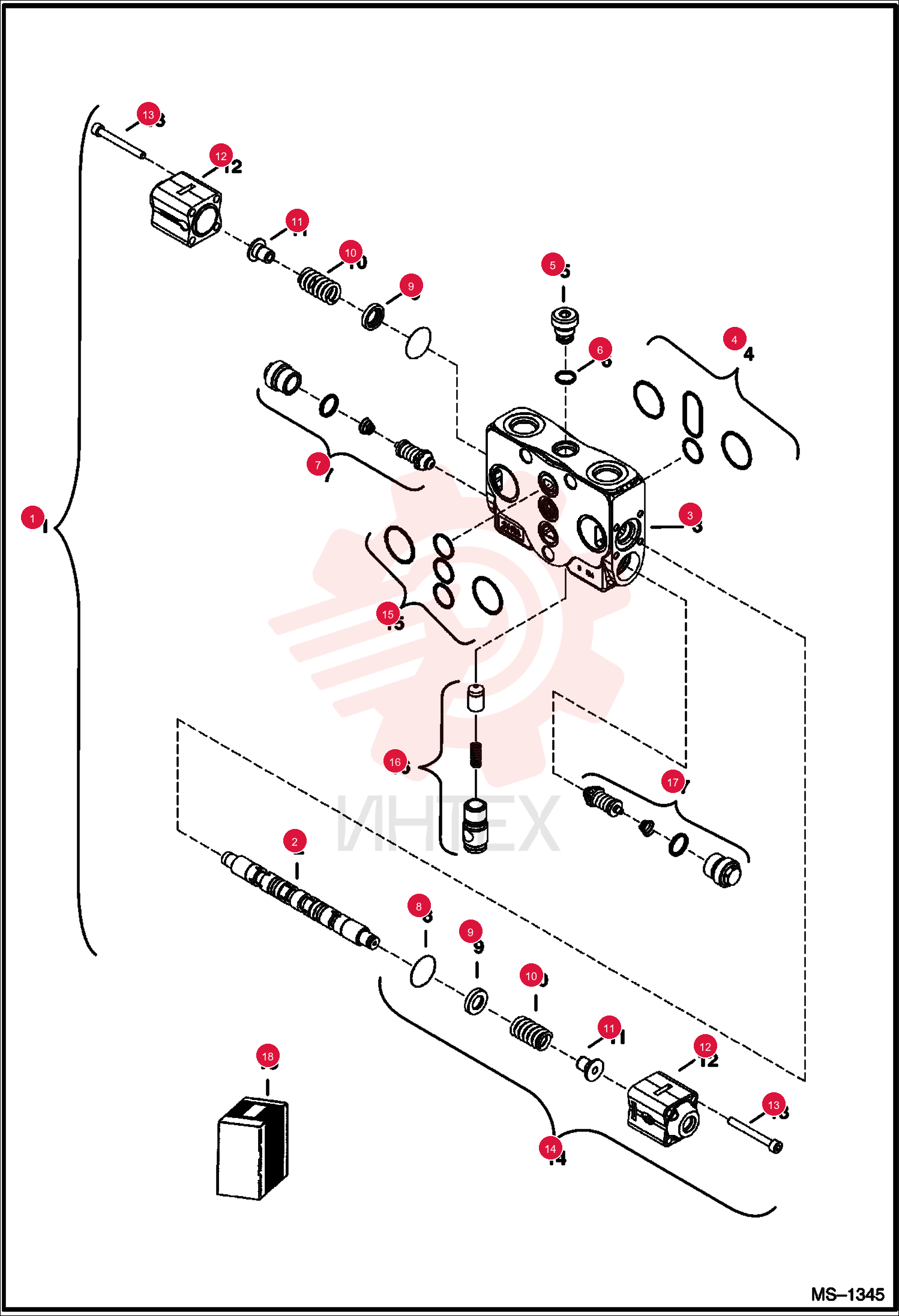

VALVE BUCKET 6680088 (1)

VALVE BUCKET 6680088 (1)

VALVE BUCKET 6680088 (1)

1 6680088

  • 6680088 - VALVE BUCKET
  • assy - Ref. 2 - 17

2 6680064

  • 6680064 - KIT
  • SEAL

3 6680092

  • 6680092 - VALVE
  • LOCK LOAD
  • assy - W/Ref. 6

4 6680065

  • 6680065 - ASSY
  • VALVE
  • assy

5 6680096

  • 6680096 - VALVE
  • SECTION
  • W/Ref. 8 - 13

6 6680066

  • 6680066 - KIT
  • SEAL

7 6680091

  • 6680091 - VALVE ASSY
  • assy

8 6685304

  • 6685304 - PORT RELIEF
  • assy - 3400 PSI - port relief/anti cav - Was 6680061

9 6680126

  • 6680126 - SEAL KIT
  • section
