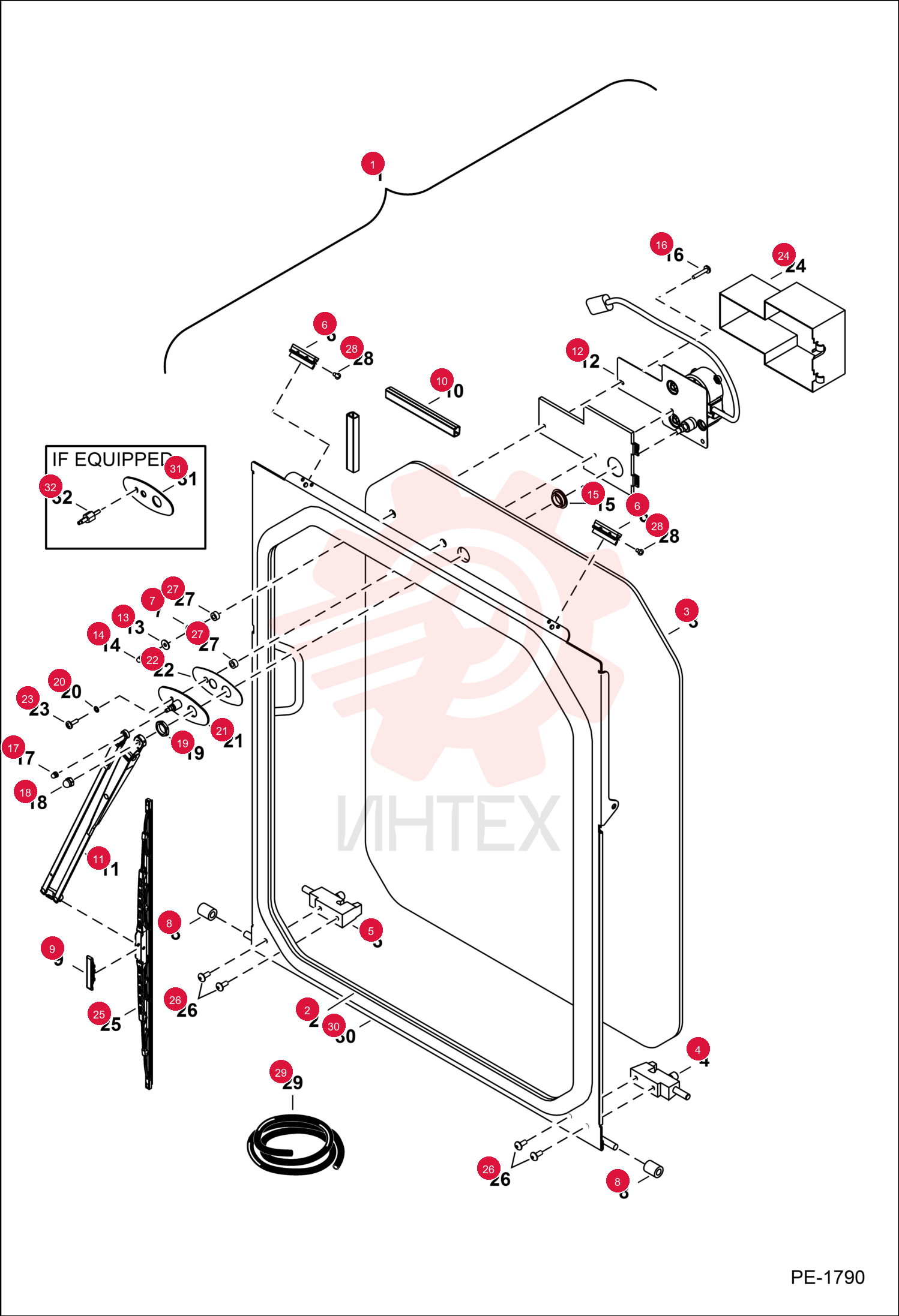

WINDOW
1 6813674
- 6813674 - WINDOW
- front
2 6801503
- 6801503 - LATCH
- LH
- LH
3 6801502
- 6801502 - LATCH
- RH
- RH
4 6801420
- 6801420 - CHANNEL
5 6801059
- 6801059 - WASHER NEOPRENE
6 6800873
- 6800873 - ROLLER
7 6677845
- 6677845 - ADAPTER
- Use W/NLA blade
8 6680971
- 6680971 - RETAINER
- wire
9 7234015
- 7234015 - ARM
- WIPER
- Use W/Ref. 25 (7188372 blade)
- 31 & 32
10 6679476
- 6679476 - MOTOR
- WIPER
11 6640699
- 6640699 - CONNECTOR METRI PACK
- electrical connector
12 6678739
- 6678739 - WASHER M5 FLAT
- flat
13 6678198
- 6678198 - BOLT
14 6677847
- 6677847 - GROMMET
- rubber
15 6678198
- 6678198 - BOLT
16 6677844
- 6677844 - NUT
17 6677843
- 6677843 - NUT
18 6677842
- 6677842 - NUT
19 6677841
- 6677841 - WASHER
20 6677839
- 6677839 - GASKET
- swivel
21 6677837
- 6677837 - BOLT
22 6677836
- 6677836 - COVER
- motor
23 7147359
- 7147359 - BLADE
- WIPER WINDOW
- Use W/Ref. 11 (NLA 6680180 arm) & Ref. 21
24 7188372
- 7188372 - BLADE
- WIPER WINDOW
- Use W/Ref. 11 (7234015 arm)
- Ref. 31 & 32
25 6733377
- 6733377 - SCREW BTN HD CAP
- 5/8" long - NLA - Was 6667196
26 6664085
- 6664085 - BUSHING NYLON
- nylon
27 6630207
- 6630207 - RIVET POP
28 6514301
- 6514301 - SEAL
- BULK/FT
- bulk - sold per foot
29 6813673
- 6813673 - FRAME
- window
30 7009047
- 7009047 - PLATE
- Use W/Ref. 11 (7234015 arm)
- Ref. 25 (7188372 blade)
- & 32
31 7188373
- 7188373 - SWIVEL
- PLATE ASSY
- Use W/Ref. 11 (7234015 arm)
- Ref. 25 (7188372 blade)
- & 31 - Was 7255629
