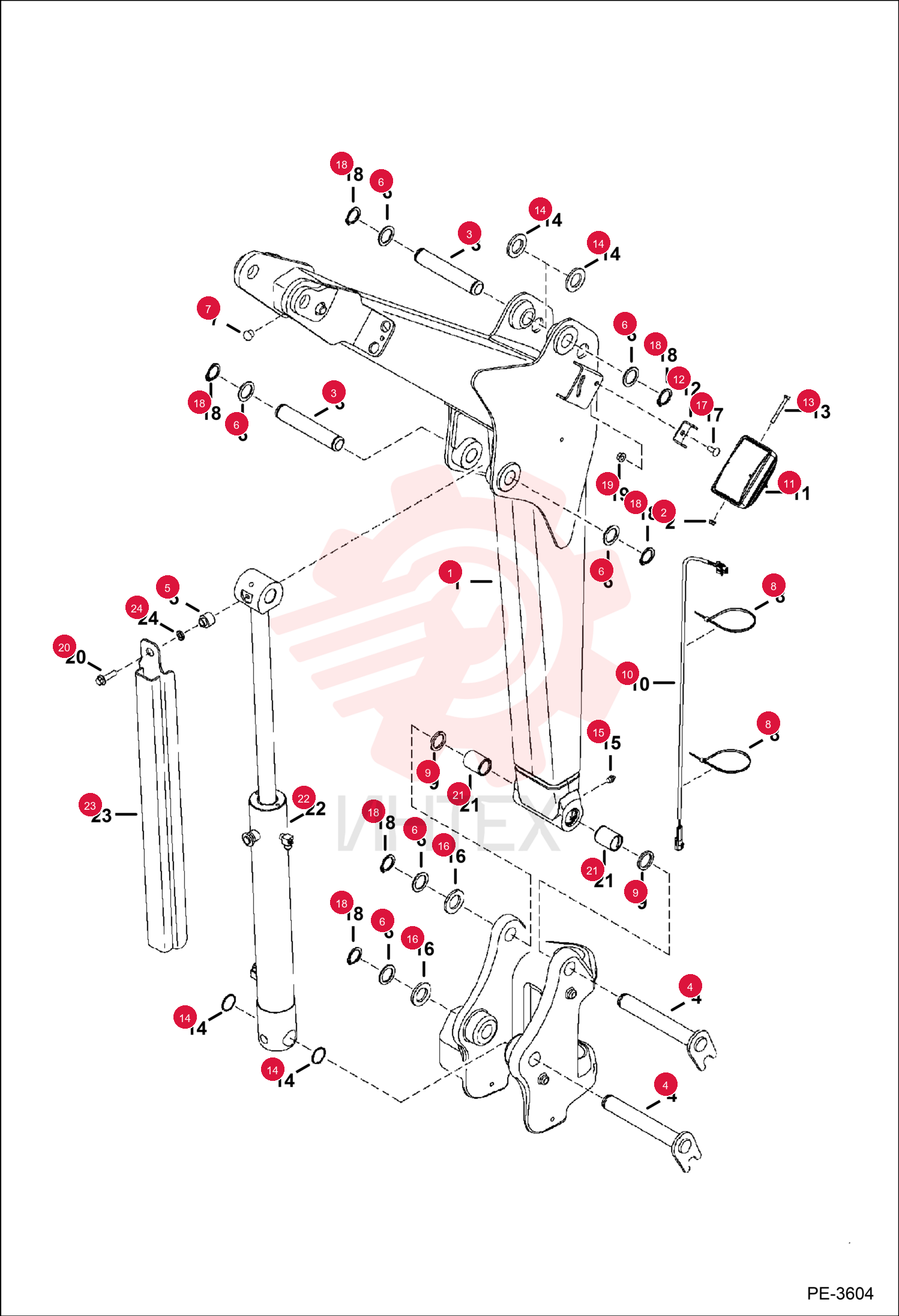

BOOM, ARM DIPPER
1 7177739
- 7177739 - BOOM
- ARM DIPPER
- W/Ref. 9 & 21 - Was 7102660
2 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
3 6589067
- 6589067 - PIN
4 6589092
- 6589092 - PIN
5 7131110
- 7131110 - SPACER
6 6589699
- 6589699 - WASHER
7 6597572
- 6597572 - BUMPER
8 6610510
- 6610510 - STRAP
- TIE 10
9 6653534
- 6653534 - SEAL
- OIL 5
10 7135895
- 7135895 - HARNESS
11 6692400
- 6692400 - BULB
12 6691410
- 6691410 - LIGHT
13 7135899
- 7135899 - BRACKET
14 1CM655
- 1CM655 - SCREW
15 6533856
- 6533856 - SHIM 5
16 10H25
- 10H25 - FTG GREASE STRAIGHT
17 1EM270
- 1EM270 - WASHER
18 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
19 22J19
- 22J19 - SNAP RING
20 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
21 59CM1035
- 59CM1035 - SCREW HEX FLG HD CAP
22 7100276
- 7100276 - BUSHING
23 7130862
- 7130862 - SHIELD
24 7135076
- 7135076 - SPRING WASHER
