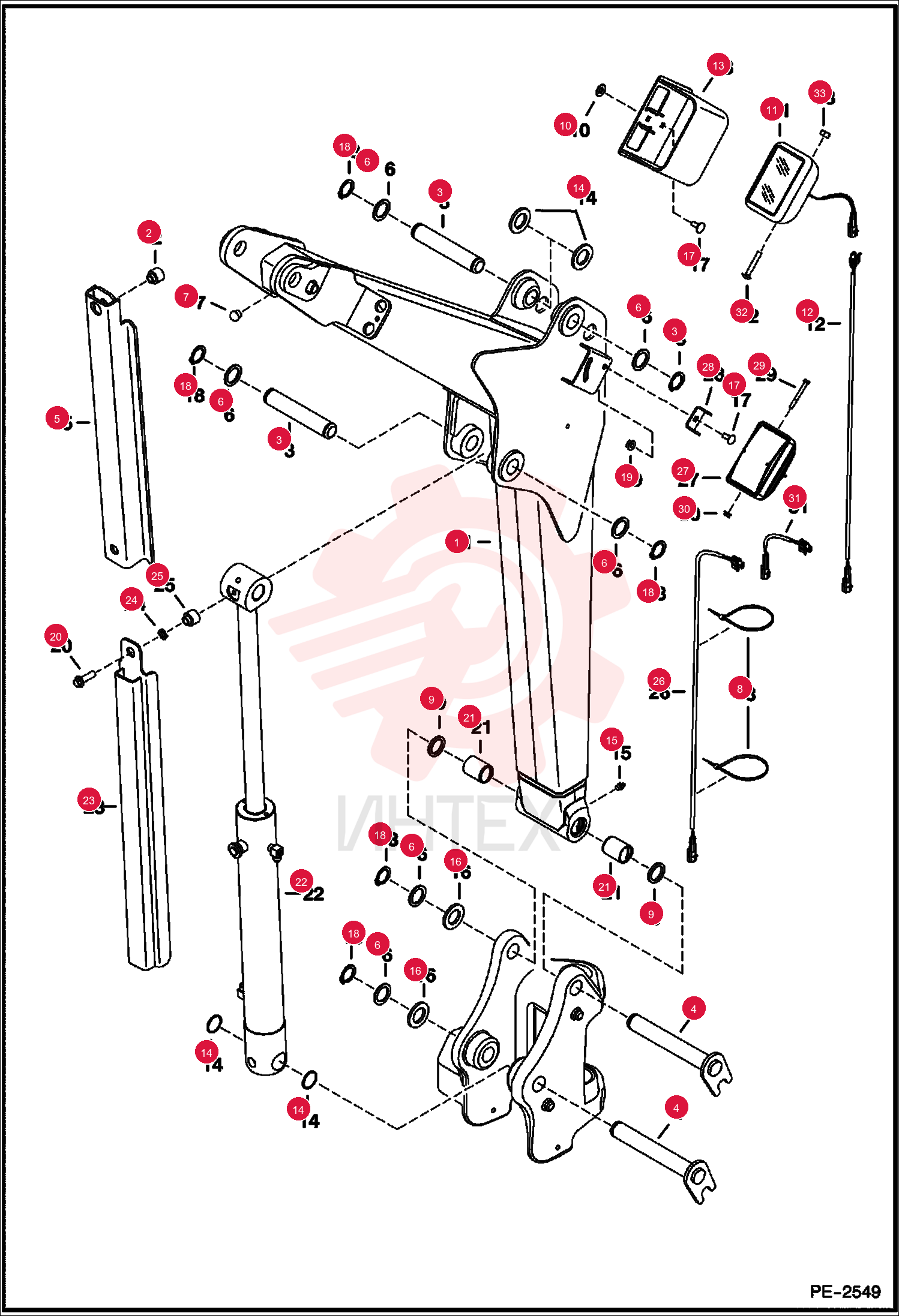

BOOM, ARM DIPPER 7177739 (1)
1 7177739
- 7177739 - BOOM
- ARM DIPPER
- W/Ref. 9 & 21 - Was 7102660
2 6587472
- 6587472 - SPACER
- Use W/Ref. 5 (NLA/ 6596493 shield)
3 6589067
- 6589067 - PIN
4 6589092
- 6589092 - PIN
5 6589699
- 6589699 - WASHER
6 6597572
- 6597572 - BUMPER
7 6610510
- 6610510 - STRAP
- TIE 10
- Was 1715312B
8 6653534
- 6653534 - SEAL
- OIL 5
9 6675859
- 6675859 - RETAINER
10 6675938
- 6675938 - LIGHT
- SEALED BEAM
- W/pigtail - Use W/Ref. 13
11 6533856
- 6533856 - SHIM 5
12 10H25
- 10H25 - FTG GREASE STRAIGHT
13 1EM270
- 1EM270 - WASHER
14 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
- Was 21CM820
15 22J19
- 22J19 - SNAP RING
16 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
- Was 4DM8
17 59CM1035
- 59CM1035 - SCREW HEX FLG HD CAP
18 7100276
- 7100276 - BUSHING
19 7130862
- 7130862 - SHIELD
20 7135076
- 7135076 - SPRING WASHER
- Use W/Ref. 23
21 7131110
- 7131110 - SPACER
- Use W/Ref. 23
22 7135895
- 7135895 - HARNESS
- work light - 116" (2946mm) long
23 6692400
- 6692400 - BULB
24 6691410
- 6691410 - LIGHT
- W/O pigtail - Use W/Ref. 28
25 7135899
- 7135899 - BRACKET
- 1.82" (46
- 2mm) wide - for light W/O pigtail
26 1CM655
- 1CM655 - SCREW
27 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
28 7135981
- 7135981 - HARNESS
- extension - 6" (152mm) long
29 17C532
- 17C532 - BOLT 5
30 61D5
- 61D5 - NUT HEX FINISHED GR5
