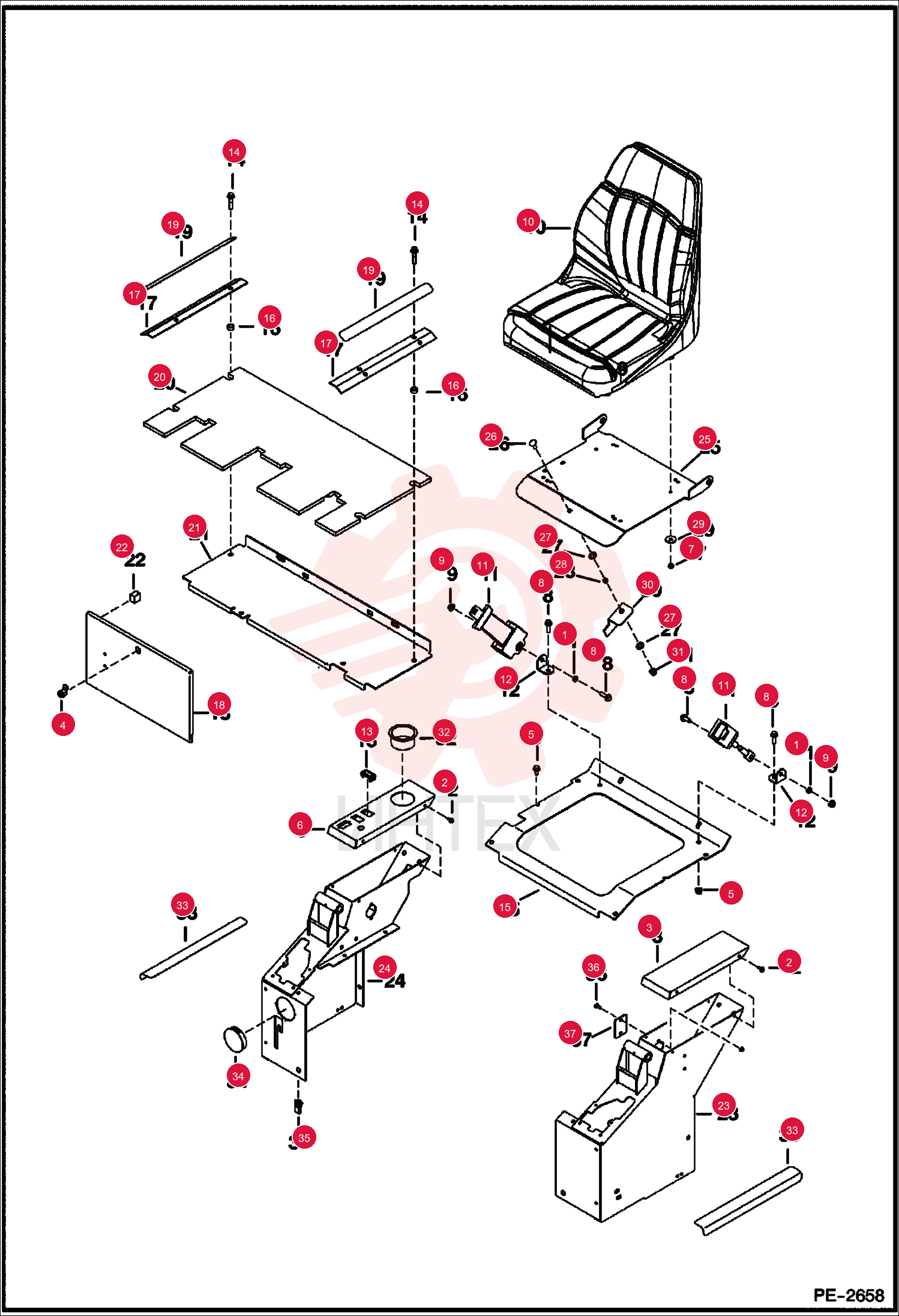

BUSHING SPACER
1 6810385
- 6810385 - BUSHING SPACER
2 6810157
- 6810157 - SCREW
3 6806726
- 6806726 - COVER
- LH
4 6675723
- 6675723 - LOCK
- W/nuts
- W/O keys
5 6675843
- 6675843 - NUT
6 6693241
- 6693241 - KEY (2)
- ignition - single key W/O ring
7 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
8 7101081
- 7101081 - CONSOLE
- COVER
- RH
9 59D5
- 59D5 - NUT LOCK HEX PT
10 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
11 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
12 6669135
- 6669135 - SEAT
- OPERATOR VINYL
- standard
13 6598809
- 6598809 - SEAT
- OPERATOR VINYL 2
- Bobcat logo - includes qty (2) seats
14 6670865
- 6670865 - BELT
- SEAT
- assy - LH & RH
15 6807573
- 6807573 - BRACKET
- seat belt
16 6665314
- 6665314 - PLUG ROCKER SW
17 29CM1045
- 29CM1045 - BOLT
18 6810154
- 6810154 - PAN
19 6503451
- 6503451 - SPACER
20 6807326
- 6807326 - ANGLE
21 6806900
- 6806900 - COVER
22 6807327
- 6807327 - TREAD
- SAFETY
23 7104968
- 7104968 - FLOORMAT
24 7101693
- 7101693 - FLOOR PLATE
25 6809004
- 6809004 - INSULATION
26 6810992
- 6810992 - SUPPORT
- LH
27 6806238
- 6806238 - SUPPORT
- RH
28 7100356
- 7100356 - COVER
29 10C616
- 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5
30 6808157
- 6808157 - WASHER
31 6562619
- 6562619 - BUSHING
32 619021
- 619021 - WASHER
- hold open
33 6810639
- 6810639 - HANDLE
34 89D6
- 89D6 - NUT
35 6676911
- 6676911 - CUP
36 6588953
- 6588953 - TREAD
- SAFETY
37 6670864
- 6670864 - PLUG
38 6675722
- 6675722 - NUT
39 6803202
- 6803202 - SCREW
40 6808156
- 6808156 - COVER
