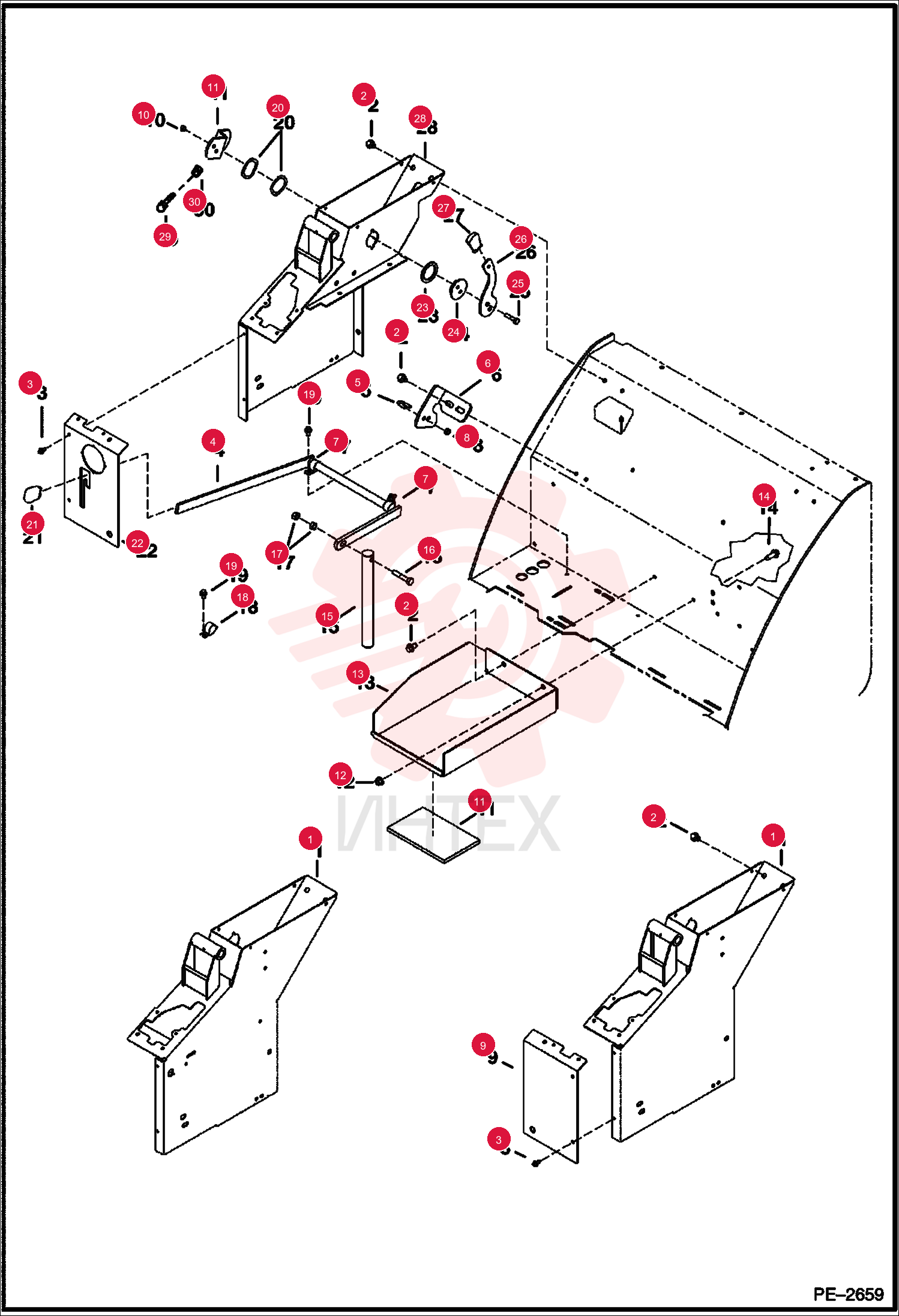

SUPPORT
1 6810992
- 6810992 - SUPPORT
2 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
3 6810157
- 6810157 - SCREW
4 6809090
- 6809090 - LOCK
5 6592766
- 6592766 - U-BOLT
6 6807385
- 6807385 - BRACKET
7 30H45
- 30H45 - CLIP
8 61D5
- 61D5 - NUT HEX FINISHED GR5
9 6807360
- 6807360 - PANEL
- LH
- L.H.
10 53DM8
- 53DM8 - NUT HX THDLK PREAPPL
11 6807384
- 6807384 - BRACKET
12 43DM10
- 43DM10 - NUT FLANGED HEX
13 7104154
- 7104154 - BRACKET
14 26GM10030
- 26GM10030 - SCREW SELF TAPPING
15 6807405
- 6807405 - LOCK
16 1CM1055
- 1CM1055 - BOLT
17 4DM10
- 4DM10 - NUT HEX
18 30H30
- 30H30 - CLIP
19 26GM8016
- 26GM8016 - SCREW SELF TAPPING
20 6630945
- 6630945 - WASHER
21 6586856
- 6586856 - KNOB
22 6807361
- 6807361 - PANEL
- RH
- R.H.
23 6567962
- 6567962 - WASHER
24 6567963
- 6567963 - SPACER
- Throttle
25 1CM835
- 1CM835 - BOLT
26 6705452
- 6705452 - LEVER
- Throttle
27 6564452
- 6564452 - GRIP LEVER
- Throttle
28 6806238
- 6806238 - SUPPORT
29 4CM835
- 4CM835 - SCREW FL THD HEX CAP
- for high idle adjustment
30 4DM8
- 4DM8 - NUT HEX
- for high idle adjustment
