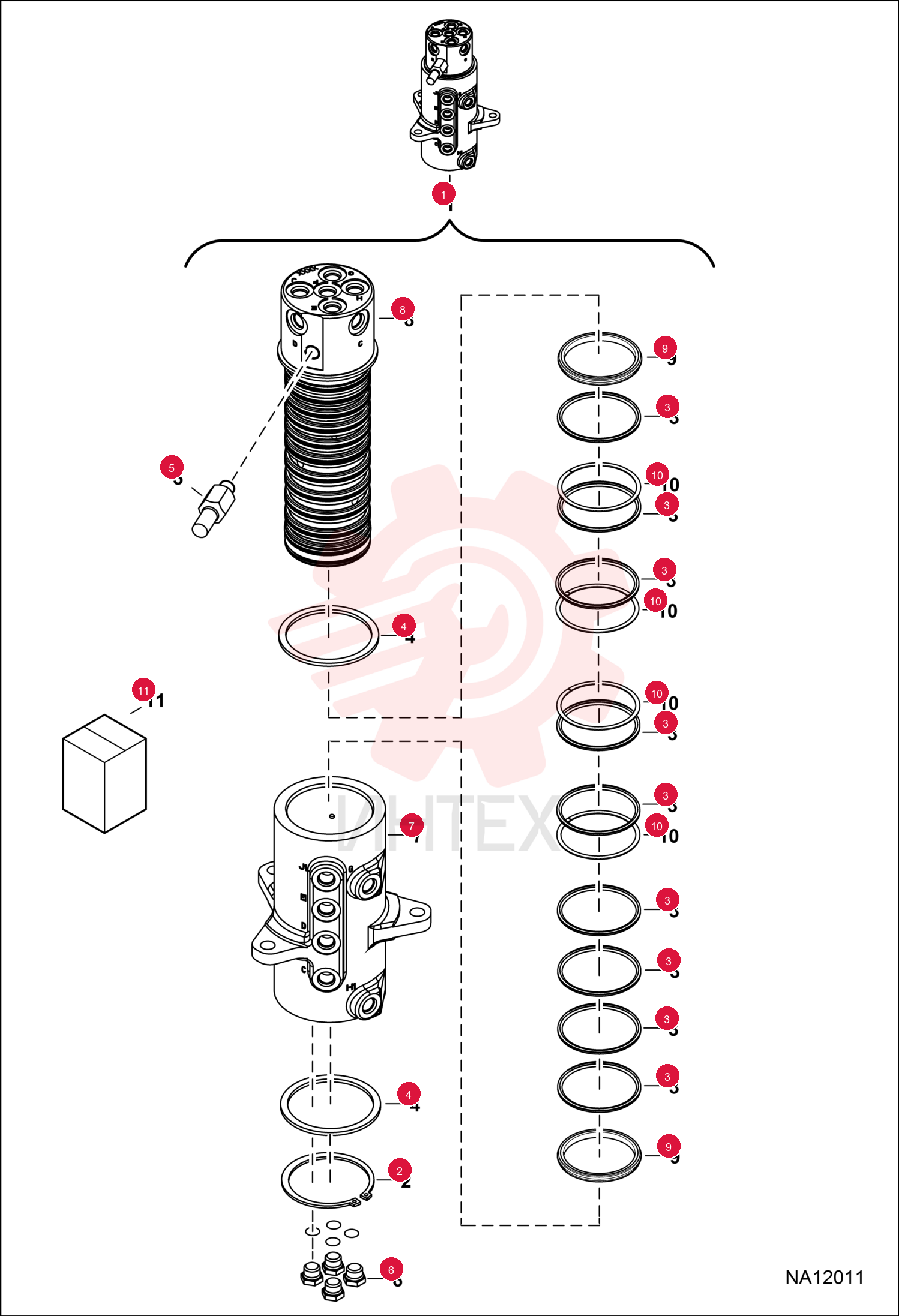

SWIVEL, HYD ASSY 7278821

SWIVEL, HYD ASSY 7278821

SWIVEL, HYD ASSY 7278821

1 7278821

  • 7278821 - SWIVEL
  • HYD ASSY
  • Ref. 2-10

2 21J44

  • 21J44 - RING
  • SNAP

3 6686865

  • 6686865 - SEAL

4 6686867

  • 6686867 - WASHER

5 6810029

  • 6810029 - STOP
  • SWIVEL

6 6812171

  • 6812171 - PLUG

7 7278822

  • 7278822 - SPOOL
  • SWIVEL

8 7225616

  • 7225616 - SEAL

9 7225617

  • 7225617 - RING
  • BACK UP

10 7300855

  • 7300855 - KIT
  • SWIVEL SEAL
  • (2) each Ref. 4 & 9
  • (9) Ref. 3
  • (14) Ref. 10
  • (4) 75K6 O-ring & (10) 79K6 O-ring
