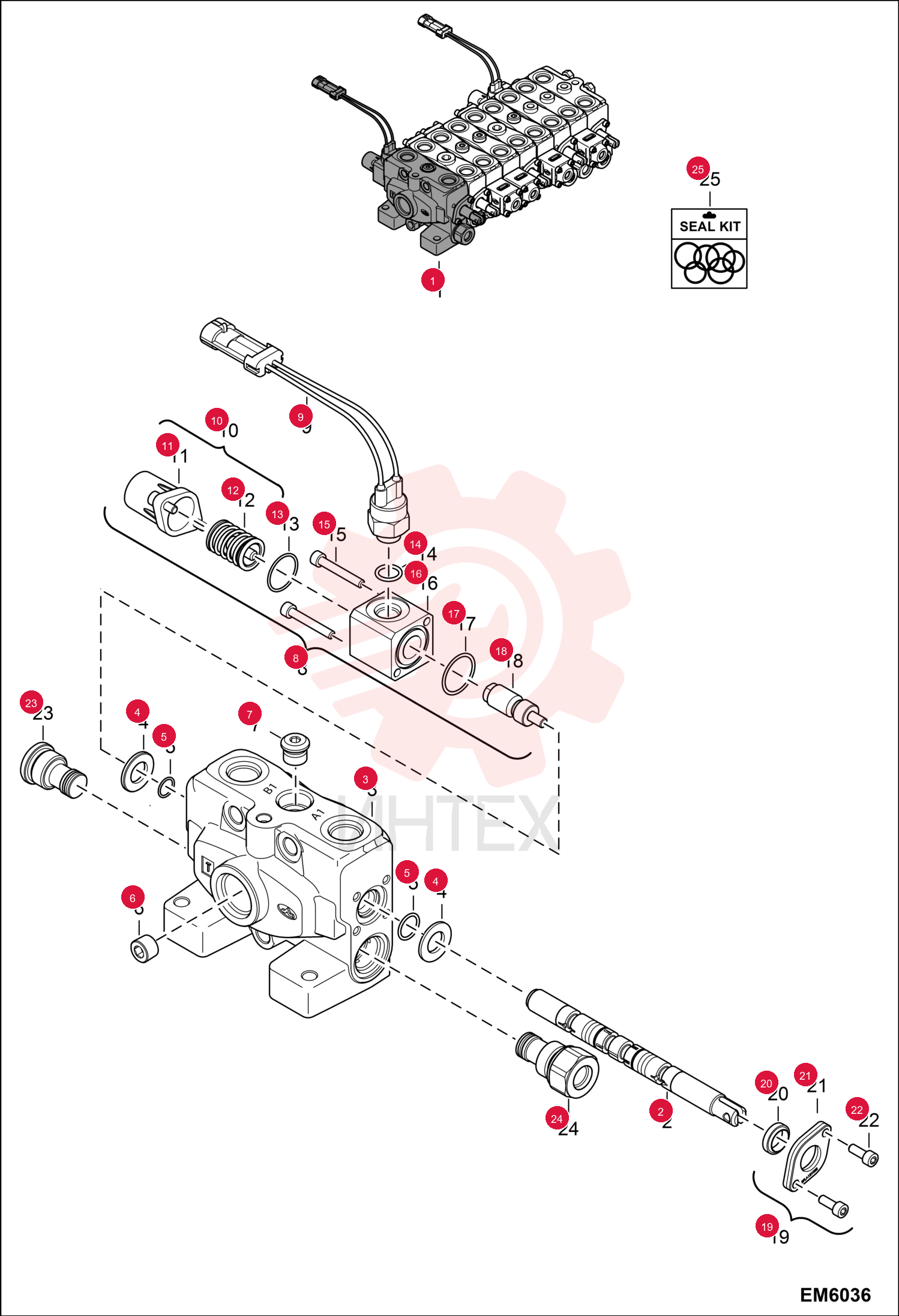

VALVE 7015373

VALVE 7015373

VALVE 7015373

1 7015373

  • 7015373 - VALVE
  • Ref. 2-24

2 7015382

  • 7015382 - SPOOL

3 6693134

  • 6693134 - KIT
  • W/Ref. 4-7

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 7015355

  • 7015355 - PLUG

7 6680093

  • 6680093 - PLUG ASSEMBLY

8 6689031

  • 6689031 - KIT
  • SWITCH
  • Ref. 9-18

9 6679913

  • 6679913 - SWITCH

10 6685777

  • 6685777 - KIT SPOOL
  • Ref. 11-12

11 6679496

  • 6679496 - END CAP

12 7015380

  • 7015380 - SPRING ASSEMBLY

13 6679496

  • 6679496 - END CAP

14 6679501

  • 6679501 - SCREW

15 7015381

  • 7015381 - BLOCK
  • VALVE

16 6679604

  • 6679604 - O-RING

17 6685780

  • 6685780 - CONTROL ASSEMBLY

18 6680097

  • 6680097 - COVER
  • END

19 6679912

  • 6679912 - SEAL

20 6679911

  • 6679911 - FLANGE

21 6680071

  • 6680071 - SCREW

22 6680057

  • 6680057 - PLUG ASSEMBLY

23 6693139

  • 6693139 - GF/SDS100-SAE6 INLET JOINT

24 7015383

  • 7015383 - KIT
  • SEAL
