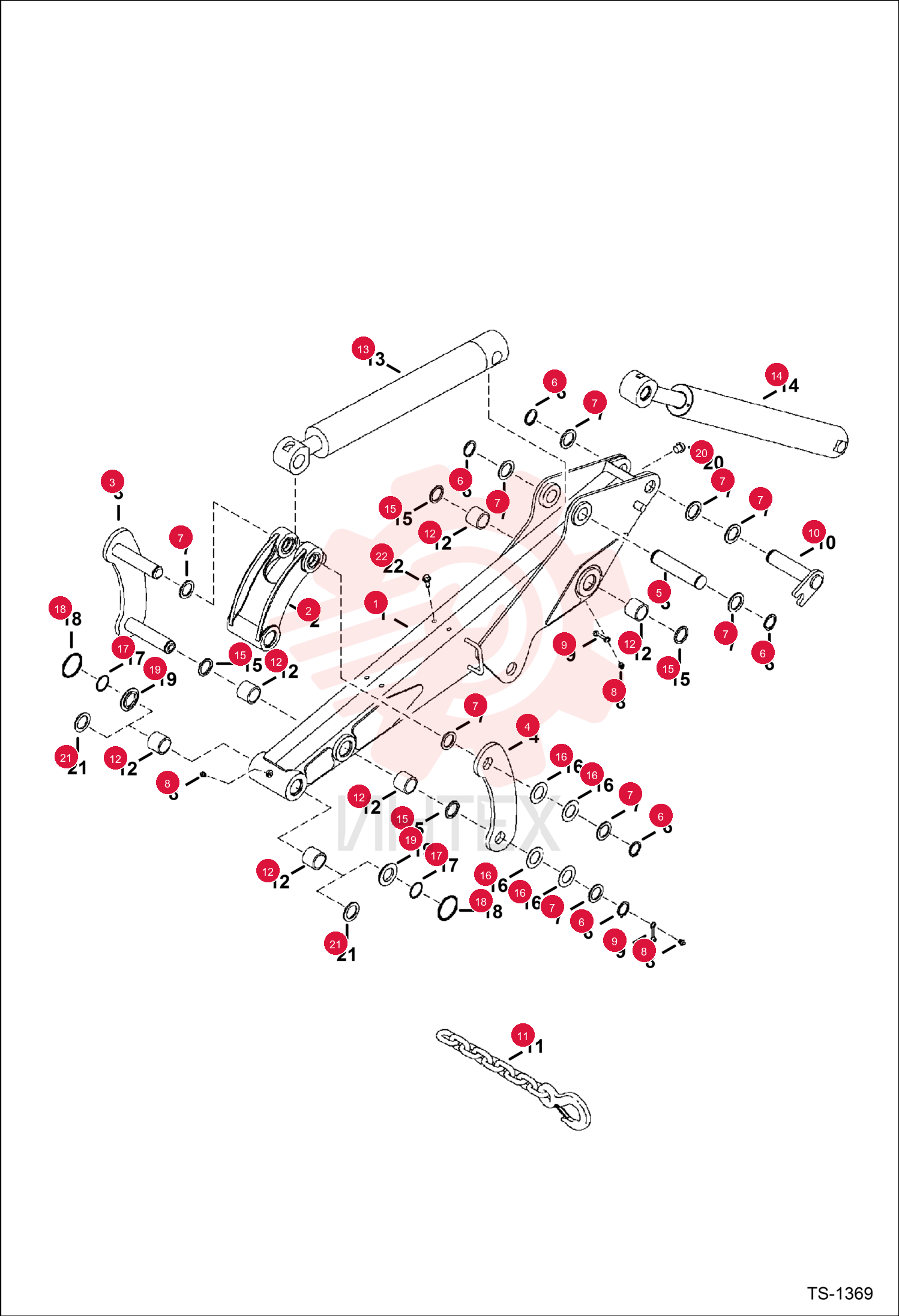

ARM, LONG
1 7127628
- 7127628 - ARM
- LONG
- Also Order (6) of Ref. 12
- (4) of Ref. 15
- & (2) of Ref. 17-19 - if 6812421 latching or 6812423 bolt on X-Change is used
- Also Order (2) of Ref. 18 & (2) of 6810525 bushings - Was 7110458
2 7127622
- 7127622 - ARM
- Also Order (6) of Ref. 12
- (4) of Ref. 15
- & (2) of Ref. 17-19 - if 6812421 latching or 6812423 bolt on X-Change is used
- Also Order (2) of Ref. 18 & (2) of 6810525 bushings - Was 7110455
3 6805374
- 6805374 - LINK
- BUCKET MACHINED ASSY
- wide link
4 7173235
- 7173235 - LINK
- GUIDE W/A
- Was 7127600
5 7173234
- 7173234 - LINK
- GUIDE
- Was 7129624
6 6595660
- 6595660 - PIN
7 6534154
- 6534154 - RING
- RETAINER
- retaining
8 6534111
- 6534111 - WASHER
- 5
9 10H25
- 10H25 - FTG GREASE STRAIGHT
- Was 10H000015B
10 6652943
- 6652943 - COVER
- grease fitting
11 6595222
- 6595222 - PIN
- arm mounting
12 6665374
- 6665374 - CHAIN
- lifting
13 6803213
- 6803213 - BUSHING
- PRESS FIT
14 6652915
- 6652915 - SEAL
- OIL
- dust
15 6535313
- 6535313 - WASHER
- install as required
16 6811636
- 6811636 - SPACER
- install as required
17 25K40112
- 25K40112 - O RING 10
18 6811260
- 6811260 - O-RING
19 6810627
- 6810627 - WASHER
- thrust
20 6597572
- 6597572 - BUMPER
21 6652915
- 6652915 - SEAL
- OIL
22 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
