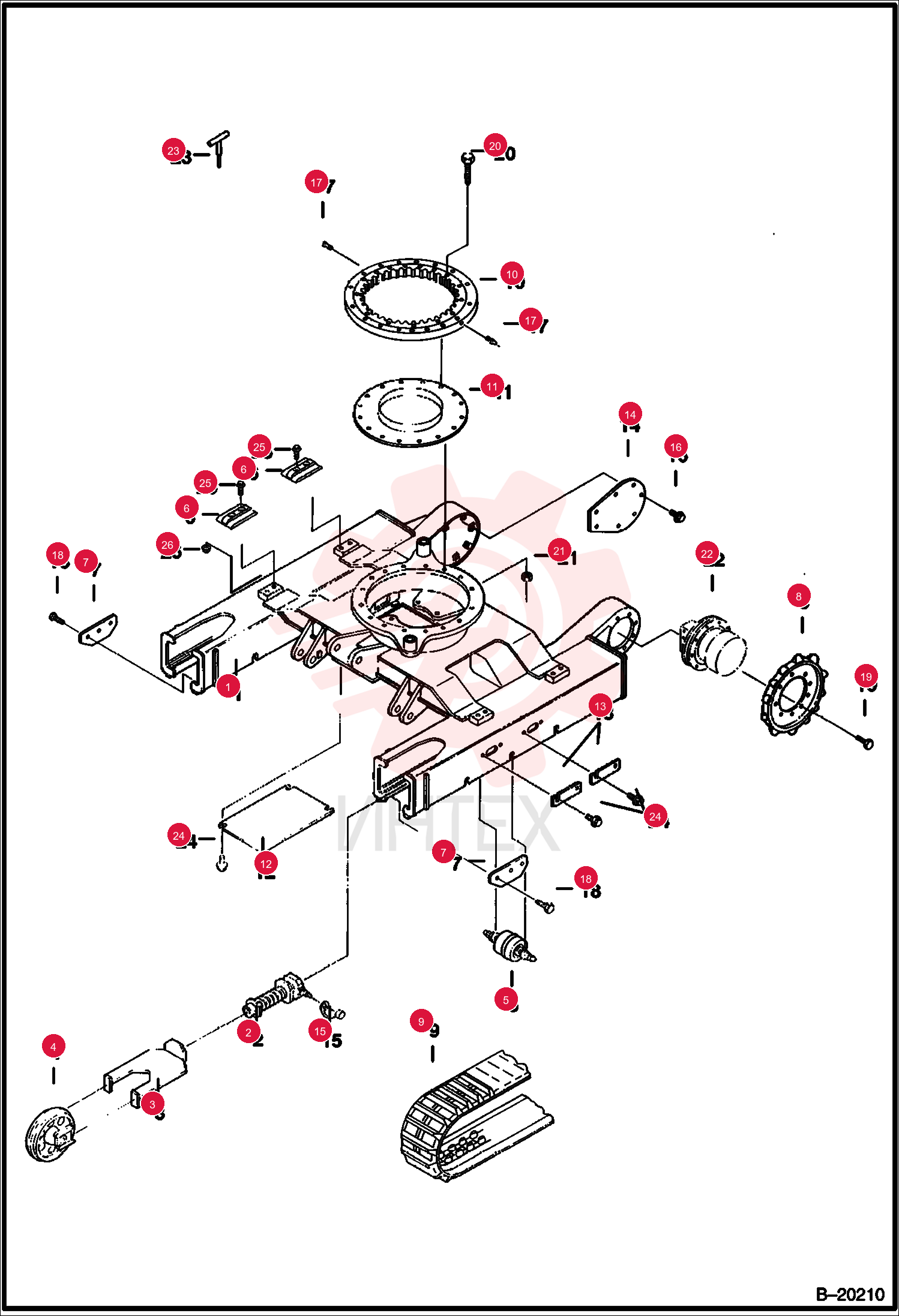

FRAME, TRACK
1 6537670
- 6537670 - FRAME
- TRACK
2 6535538
- 6535538 - BRACKET
- Idler wheel
3 6534243
- 6534243 - ROLL ASY.
4 6534234
- 6534234 - PLATE
- SLIDE
- Track slide
5 6534236
- 6534236 - PLATE
- Steel track
6 6537618
- 6537618 - PLATE
- Rubber track
7 6587310
- 6587310 - SPROCKET
8 6655124
- 6655124 - RING
- SLEW
- 96 teeth on swing gear
9 6535548
- 6535548 - SHIELD
10 6536082
- 6536082 - COVER
11 6539292
- 6539292 - COVER
12 6535547
- 6535547 - COVER
13 6652943
- 6652943 - COVER
- grease fitting
14 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
15 1CM1025
- 1CM1025 - BOLT
16 4CM1235
- 4CM1235 - BOLT
- Was 1CM1235
17 7CM1280
- 7CM1280 - BOLT
18 51DM12
- 51DM12 - NUT
- Was 47DM00012B
19 6586495
- 6586495 - PIN
- alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage
20 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self Tapping
21 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
22 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
- Was 45DM00010B
