Bobcat
/
337.0
/

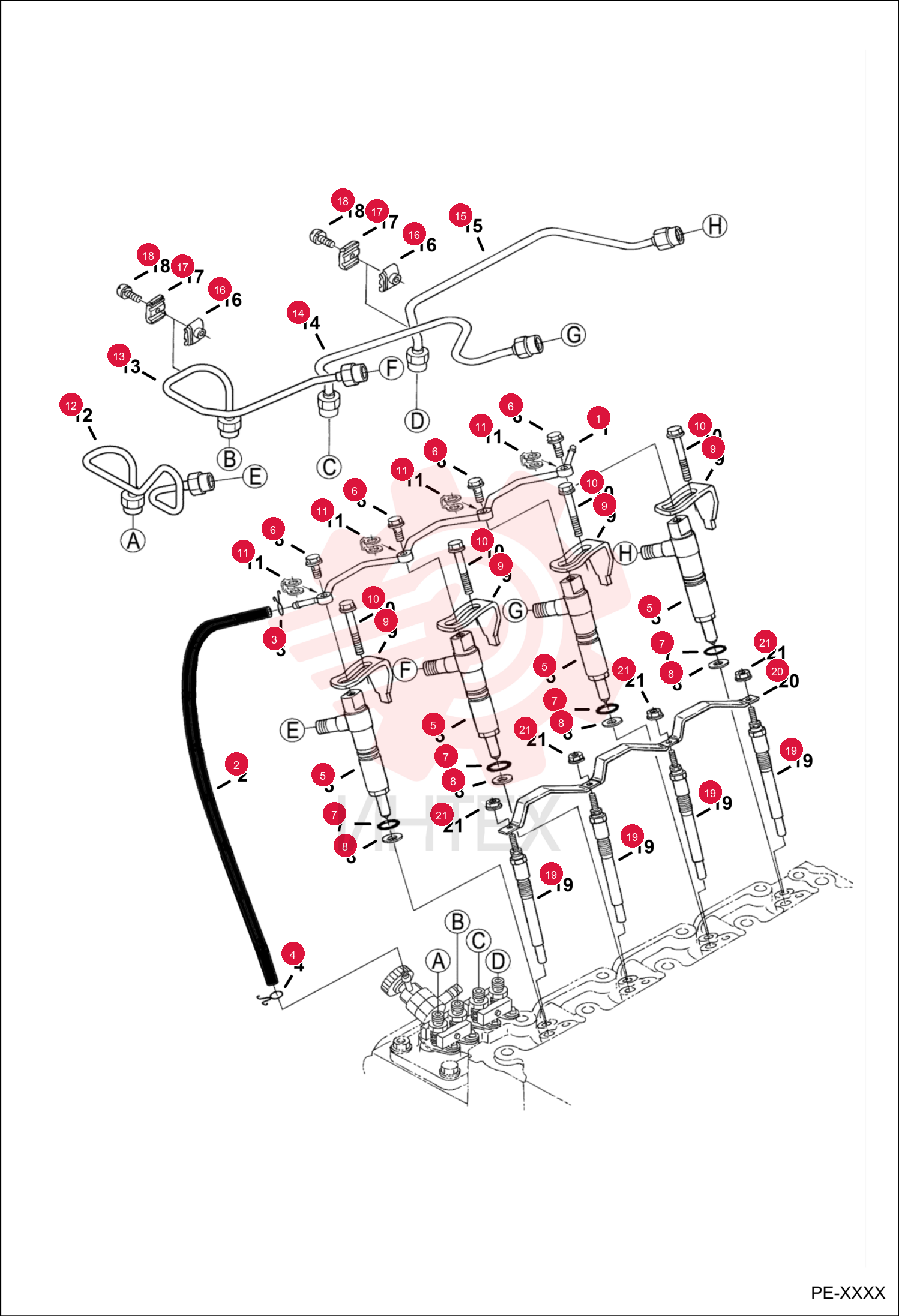

PIPE 6684842 (2)

PIPE 6684842 (2)

PIPE 6684842 (2)

1 6684842

  • 6684842 - PIPE

2 6974656

  • 6974656 - ASSY PIPE
  • OVER FLOW
  • W/Ref. 3 & 4

3 6654718

  • 6654718 - CLAMP 5
  • tube

4 6698121

  • 6698121 - CLIP
  • PIPE
  • tube

5 6698232

  • 6698232 - INJECTOR
  • FUEL ASSY

6 6680788

  • 6680788 - BOLT
  • Was 6689528

7 6670769

  • 6670769 - O-RING

8 6969824

  • 6969824 - GASKET
  • NOZZLE INJ

9 7015275

  • 7015275 - CLAMP
  • INJECTION
  • nozzle - Was 6684845

10 6684844

  • 6684844 - BOLT

11 6685498

  • 6685498 - GASKET

12 6684846

  • 6684846 - PIPE
  • Was 6694846

13 6684847

  • 6684847 - PIPE

14 6684848

  • 6684848 - PIPE

15 6684849

  • 6684849 - PIPE

16 6652688

  • 6652688 - CLAMP
  • pipe

17 6652689

  • 6652689 - CLAMP
  • pipe

18 3974260

  • 3974260 - SCREW
  • W/washer

19 6684850

  • 6684850 - GLOW PLUG

20 6969825

  • 6969825 - CORD
  • GLOW PLUG

21 6670472

  • 6670472 - NUT
