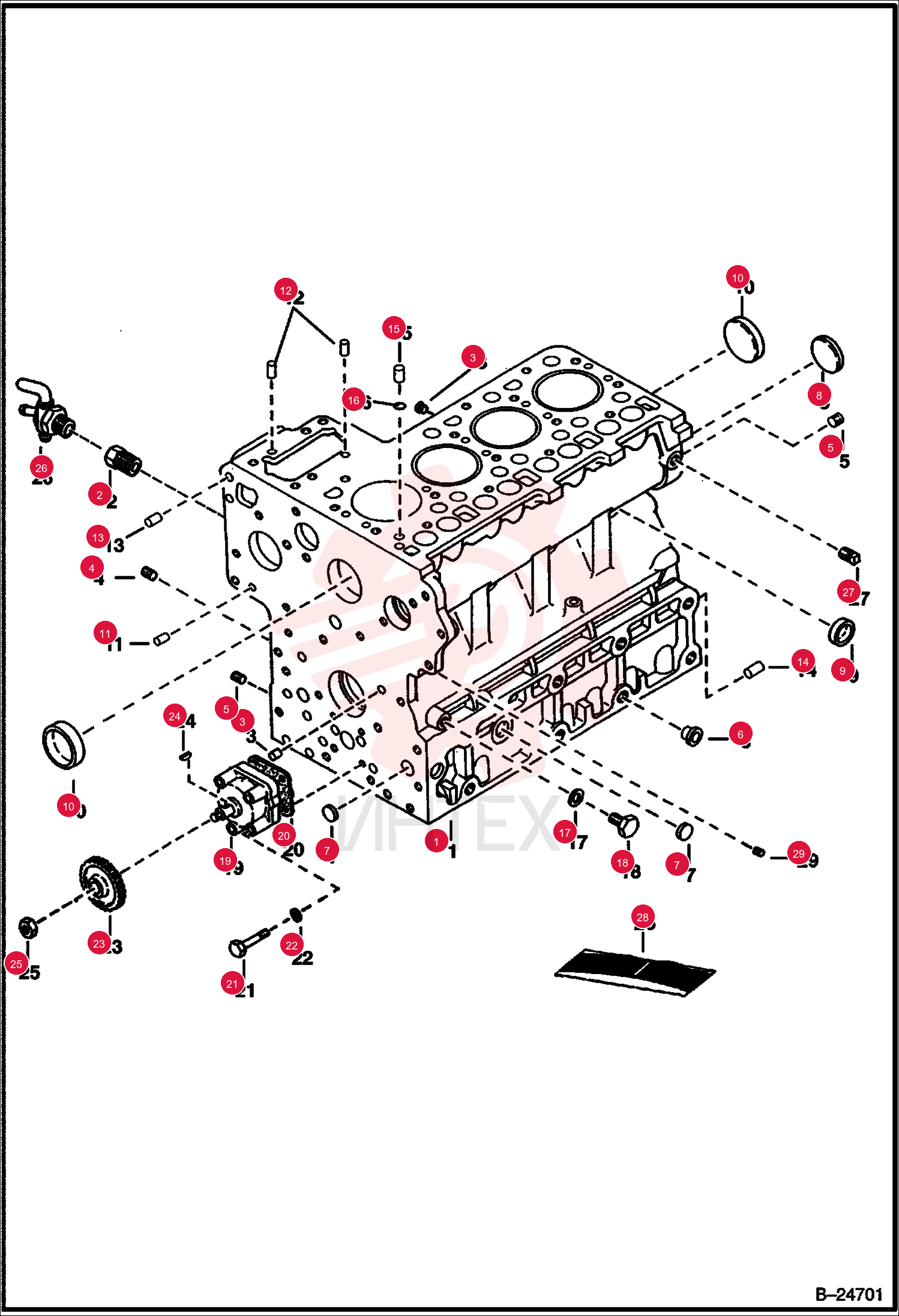

BLOCK 6686993 (2)

BLOCK 6686993 (2)

BLOCK 6686993 (2)

1 6686993

  • 6686993 - BLOCK
  • assy. - W/Ref. 2 - 15

2 6678946

  • 6678946 - FITTING
  • ADAPTER

3 6652574

  • 6652574 - PLUG

4 6655869

  • 6655869 - PLUG

5 6652575

  • 6652575 - PLUG

6 6598187

  • 6598187 - PLUG

7 6667418

  • 6667418 - PLUG
  • expansion

8 6657663

  • 6657663 - PLUG
  • expansion

9 3974389

  • 3974389 - PLUG
  • sealing

10 3974390

  • 3974390 - PLUG
  • sealing - Was 6680639

11 3974393

  • 3974393 - PIN
  • straight

12 3974394

  • 3974394 - PIN
  • straight

13 3974395

  • 3974395 - PIN
  • straight

14 3974868

  • 3974868 - PIN
  • straight

15 3974037

  • 3974037 - PIN
  • pipe

16 3974038

  • 3974038 - O-RING

17 3974095

  • 3974095 - GASKET
  • METAL

18 7022679

  • 7022679 - PLUG
  • Was 6683104

19 6692380

  • 6692380 - OIL PUMP
  • Was 6682498

20 6666782

  • 6666782 - GASKET
  • oil pump - Was 6684786

21 6655195

  • 6655195 - BOLT

22 6667419

  • 6667419 - WASHER

23 3975441

  • 3975441 - GEAR
  • CAMSHAFT

24 6969805

  • 6969805 - KEY
  • FEATHER
  • Was 15JM00410B

25 6653888

  • 6653888 - NUT

26 6672190

  • 6672190 - VALVE
  • DRAIN
  • Was 6630177

27 16F2

  • 16F2 - PLUG

28 6655869

  • 6655869 - PLUG
  • Was 6685477
