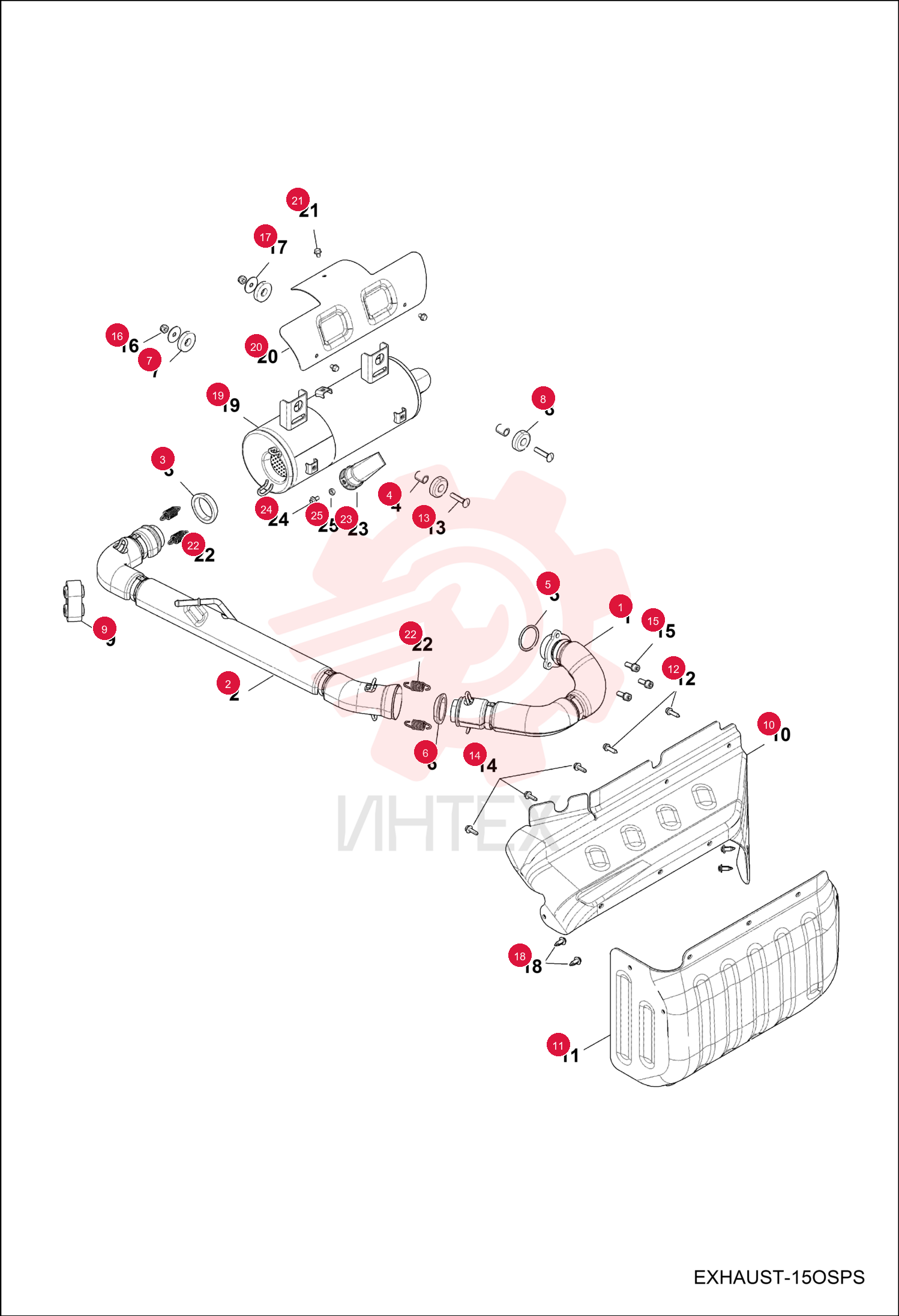

PIPE ASSEMBLY 7347951

PIPE ASSEMBLY 7347951

PIPE ASSEMBLY 7347951

1 7347951

  • 7347951 - PIPE ASSEMBLY
  • Was 7258354

2 7258355

  • 7258355 - HEAD PIPE ASSEMBLY

3 7023486

  • 7023486 - GASKET
  • SEAL EXH. SOCKET

4 7016227

  • 7016227 - BUSHING

5 7258356

  • 7258356 - GASKET
  • EXHAUST

6 7248215

  • 7248215 - SEAL

7 7258655

  • 7258655 - WASHER

8 7258357

  • 7258357 - WASHER
  • RUBBER

9 7258358

  • 7258358 - DAMPER
  • VIBRATION

10 7257145

  • 7257145 - MOUNT
  • ISOLATOR

11 7258359

  • 7258359 - SHIELD
  • HEAT
  • top

12 7025447

  • 7025447 - SHIELD
  • HEAT
  • bottom

13 7258291

  • 7258291 - SCREW

14 7025494

  • 7025494 - BOLT
  • CARRIAGE

15 7016094

  • 7016094 - BOLT

16 7016645

  • 7016645 - SCREW

17 7016648

  • 7016648 - SCREW

18 7016526

  • 7016526 - NUT

19 7016507

  • 7016507 - NUT

20 7016746

  • 7016746 - WASHER

21 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

22 7265715

  • 7265715 - SILENCER

23 7258362

  • 7258362 - SHIELD

24 7016635

  • 7016635 - SCREW

25 7016700

  • 7016700 - SPRING

26 7258693

  • 7258693 - ARRESTOR
  • SPARK

27 7258122

  • 7258122 - SCREW

28 7027751

  • 7027751 - NUT
