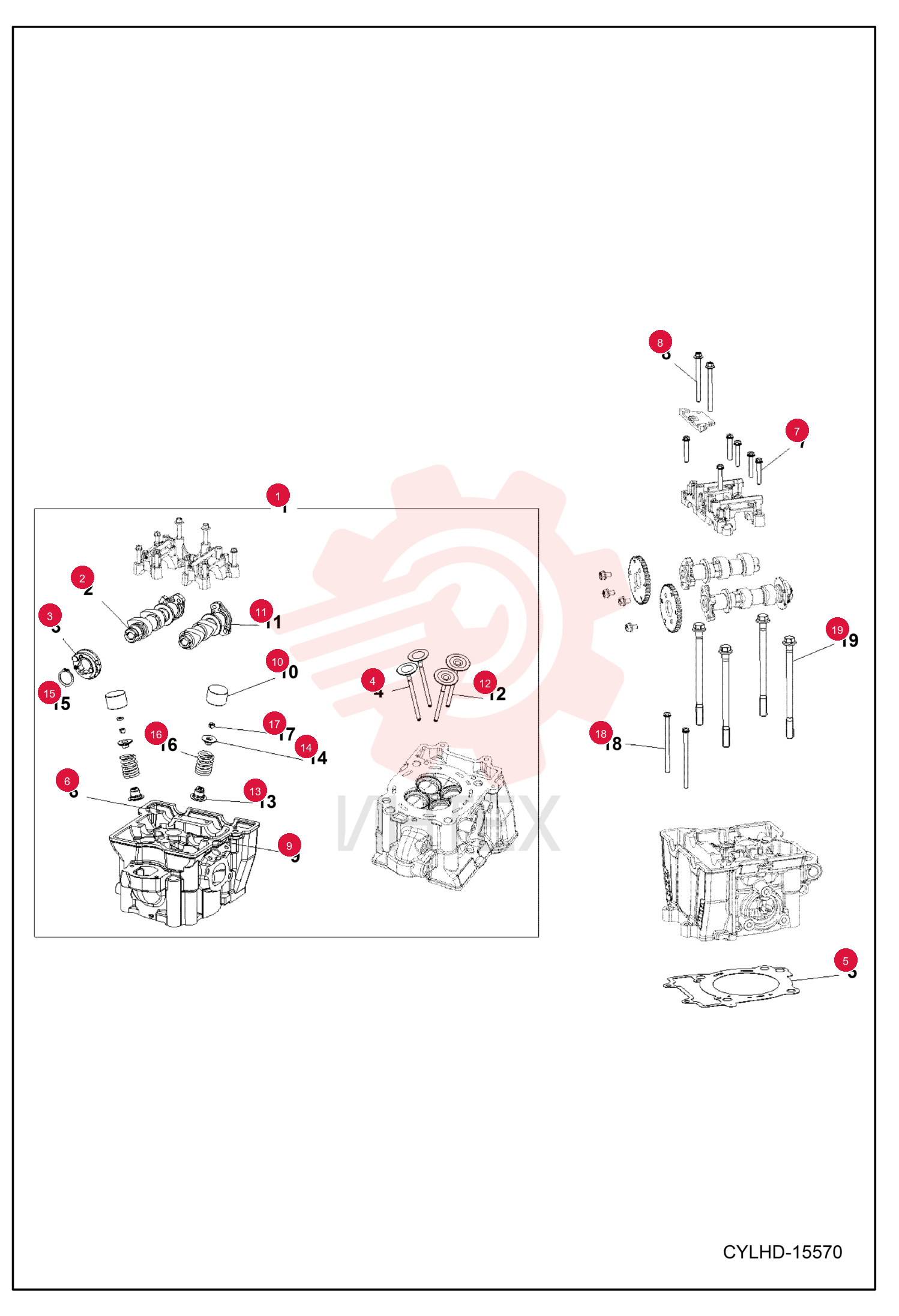

HEAD CYLINDER ASSEMBLY 7308682 (1)

HEAD CYLINDER ASSEMBLY 7308682 (1)

HEAD CYLINDER ASSEMBLY 7308682 (1)

1 7308682

  • 7308682 - HEAD CYLINDER ASSEMBLY
  • W/Ref. 2-4 & 6-15

2 7308684

  • 7308684 - CAMSHAFT EXHAUST

3 7258039

  • 7258039 - AUTO COMPRESSION RELEASE ASSEMBLY

4 7308686

  • 7308686 - VALVE INTAKE

5 7258035

  • 7258035 - PIN
  • DOWEL

6 7308690

  • 7308690 - SCREW HEX

7 7308689

  • 7308689 - SCREW HEX

8 7258020

  • 7258020 - PIN
  • DOWEL

9 7258088

  • 7258088 - TAPPET
  • 5.450

10 7258087

  • 7258087 - TAPPET
  • 5.425

11 7258086

  • 7258086 - TAPPET
  • 5.400

12 7258085

  • 7258085 - TAPPET
  • 5.375

13 7258084

  • 7258084 - TAPPET
  • 5.350

14 7258082

  • 7258082 - TAPPET
  • 5.300

15 7258081

  • 7258081 - TAPPET
  • 5.275

16 7258080

  • 7258080 - TAPPET
  • 5.250

17 7258079

  • 7258079 - TAPPET
  • 5.225

18 7258078

  • 7258078 - TAPPET
  • 5.200

19 7258077

  • 7258077 - TAPPET
  • 5.175

20 7258076

  • 7258076 - TAPPET
  • 5.150

21 7258075

  • 7258075 - TAPPET
  • 5.125

22 7258074

  • 7258074 - TAPPET
  • 5.100

23 7258083

  • 7258083 - TAPPET
  • 5.325

24 7258073

  • 7258073 - TAPPET
  • 5.075

25 7258072

  • 7258072 - TAPPET
  • 5.050

26 7258070

  • 7258070 - TAPPET
  • 5.000

27 7258046

  • 7258046 - TAPPET
  • 4.400

28 7258047

  • 7258047 - TAPPET
  • 4.425

29 7258048

  • 7258048 - TAPPET
  • 4.450

30 7258069

  • 7258069 - TAPPET
  • 4.975

31 7258068

  • 7258068 - TAPPET
  • 4.950

32 7258067

  • 7258067 - TAPPET
  • 4.925

33 7258066

  • 7258066 - TAPPET
  • 4.900

34 7258065

  • 7258065 - TAPPET
  • 4.875

35 7258064

  • 7258064 - TAPPET
  • 4.850

36 7258063

  • 7258063 - TAPPET
  • 4.825

37 7258062

  • 7258062 - TAPPET
  • 4.800

38 7258061

  • 7258061 - TAPPET
  • 4.775

39 7258060

  • 7258060 - TAPPET
  • 4.750

40 7258059

  • 7258059 - TAPPET
  • 4.725

41 7258058

  • 7258058 - TAPPET
  • 4.700

42 7258057

  • 7258057 - TAPPET
  • 4.675

43 7258056

  • 7258056 - TAPPET
  • 4.650

44 7258055

  • 7258055 - TAPPET
  • 4.625

45 7258054

  • 7258054 - TAPPET
  • 4.600

46 7258053

  • 7258053 - TAPPET
  • 4.575

47 7258052

  • 7258052 - TAPPET
  • 4.550

48 7258051

  • 7258051 - TAPPET
  • 4.525

49 7258050

  • 7258050 - TAPPET
  • 4.500

50 7258049

  • 7258049 - TAPPET
  • 4.475

51 7258071

  • 7258071 - TAPPET
  • 5.025

52 7308683

  • 7308683 - CAMSHAFT INTAKE

53 7308685

  • 7308685 - VALVE EXHAUST

54 7258091

  • 7258091 - SEAT

55 7258092

  • 7258092 - RETAINER

56 7258093

  • 7258093 - RING
  • SNAP

57 7258094

  • 7258094 - SPRING
  • VALVE

58 7258095

  • 7258095 - KEEPER

59 7258096

  • 7258096 - SCREW

60 7308691

  • 7308691 - SCREW HEX
