Bobcat
/
3400XL
/

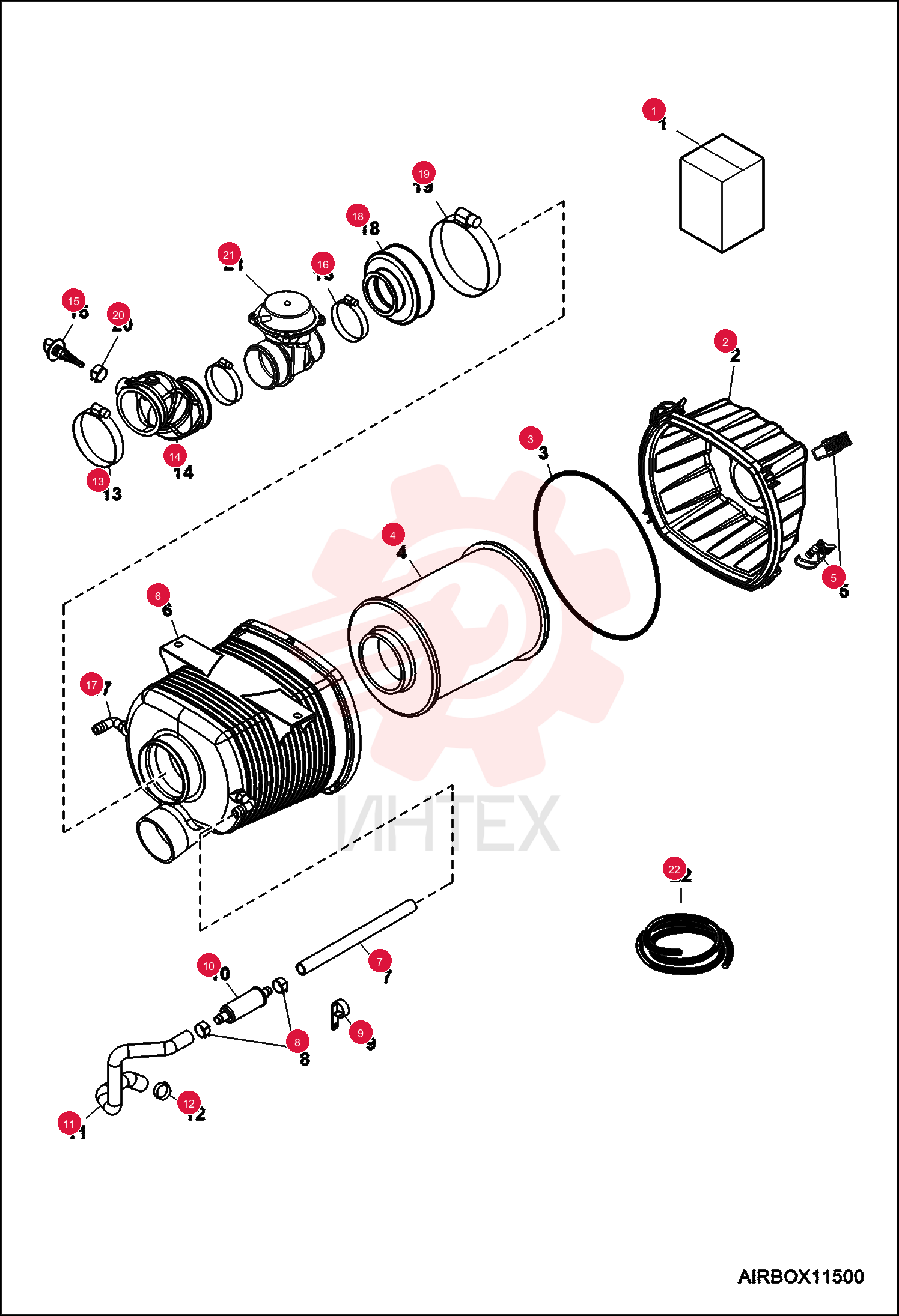

INLET, LID 7016005 (2)

INLET, LID 7016005 (2)

INLET, LID 7016005 (2)

1 7016005

  • 7016005 - INLET
  • LID
  • W/Ref. 5

2 7016655

  • 7016655 - SEAL
  • AIRBOX

3 7016038

  • 7016038 - FILTER
  • INTAKE

4 7016312

  • 7016312 - CLIP
  • COVER
  • AIRBOX

5 7016006

  • 7016006 - INLET
  • MAIN
  • W/Ref. 3 & 17

6 7016292

  • 7016292 - CLAMP
  • HOSE

7 7016305

  • 7016305 - CLAMP
  • P
  • STL
  • 1" BDL DIA
  • B
  • 25
  • 4 mm (1") dia

8 7016378

  • 7016378 - FILTER
  • BREATHER
  • IN LINE

9 7016439

  • 7016439 - HOSE
  • BREATHER
  • FORMED

10 7016295

  • 7016295 - CLAMP
  • HOSE
  • SPRING

11 7016288

  • 7016288 - CLAMP
  • NARROW BAND

12 7016189

  • 7016189 - BOOT
  • THROTTLE BODY
  • SPD CONTROL

13 7016665

  • 7016665 - SENSOR
  • AIR TEMP

14 7016289

  • 7016289 - CLAMP
  • BAND
  • NARROW

15 7016385

  • 7016385 - FITTING

16 7017466

  • 7017466 - BOOT
  • AIRBOX

17 7016298

  • 7016298 - CLAMP
  • BAND
  • NARROW 70
  • 90MM

18 7016286

  • 7016286 - CLAMP
  • HOSE
  • 10

19 6578172

  • 6578172 - HOSE BULK
  • sold per foot - Was 7016472
