341.0
/

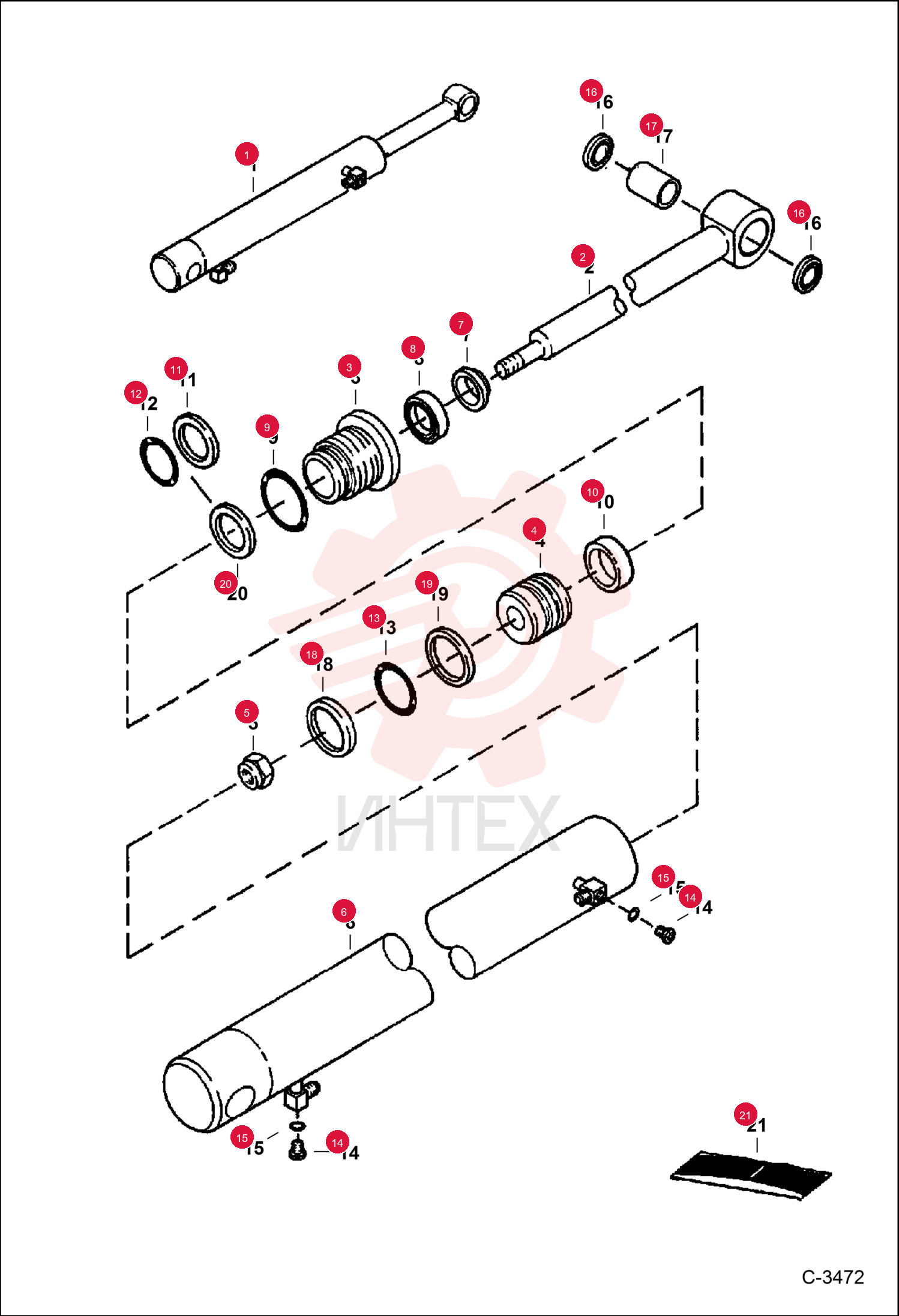

O-RING 10 58K012 (2)

O-RING 10 58K012 (2)

O-RING 10 58K012 (2)

1 58K012

  • 58K012 - O-RING 10
  • cylinder fittings

2 6537294

  • 6537294 - HEAD
  • .77'' of threads

3 6810818

  • 6810818 - PISTON
  • does not use spacer Ref. 10

4 6810540

  • 6810540 - NUT
  • Was 92D000020B

5 6686998

  • 6686998 - WIPER
  • ROD CYL
  • Was 6666545

6 6667328

  • 6667328 - SEAL

7 82K236

  • 82K236 - O-RING
  • Was 58K000236B

8 73K234

  • 73K234 - RING
  • BACK-UP
  • back-up - Was 80K234

9 54K40300

  • 54K40300 - O-RING
  • Was 58K234

10 54K30226

  • 54K30226 - O-RING
  • Was 25K30226

11 24K5

  • 24K5 - PLUG
  • W/Ref. 15 - tapered boss face - Was 90KV5

12 6812171

  • 6812171 - PLUG
  • W/Ref. 15 - flat boss face

13 95K6

  • 95K6 - O'RING
  • tapered boss face

14 75K6

  • 75K6 - O-RING
  • flat boss face

15 6669287

  • 6669287 - SEAL

16 6802371

  • 6802371 - BUSHING

17 7000778

  • 7000778 - RING
  • WEAR
  • Was 6698180

18 6513466

  • 6513466 - PISTON RG
  • piston

19 7137577

  • 7137577 - SEAL KIT
  • Ref. 5
  • 7-9
  • 11-13
  • 18 & 19 - Was 6810720
