341.0
/

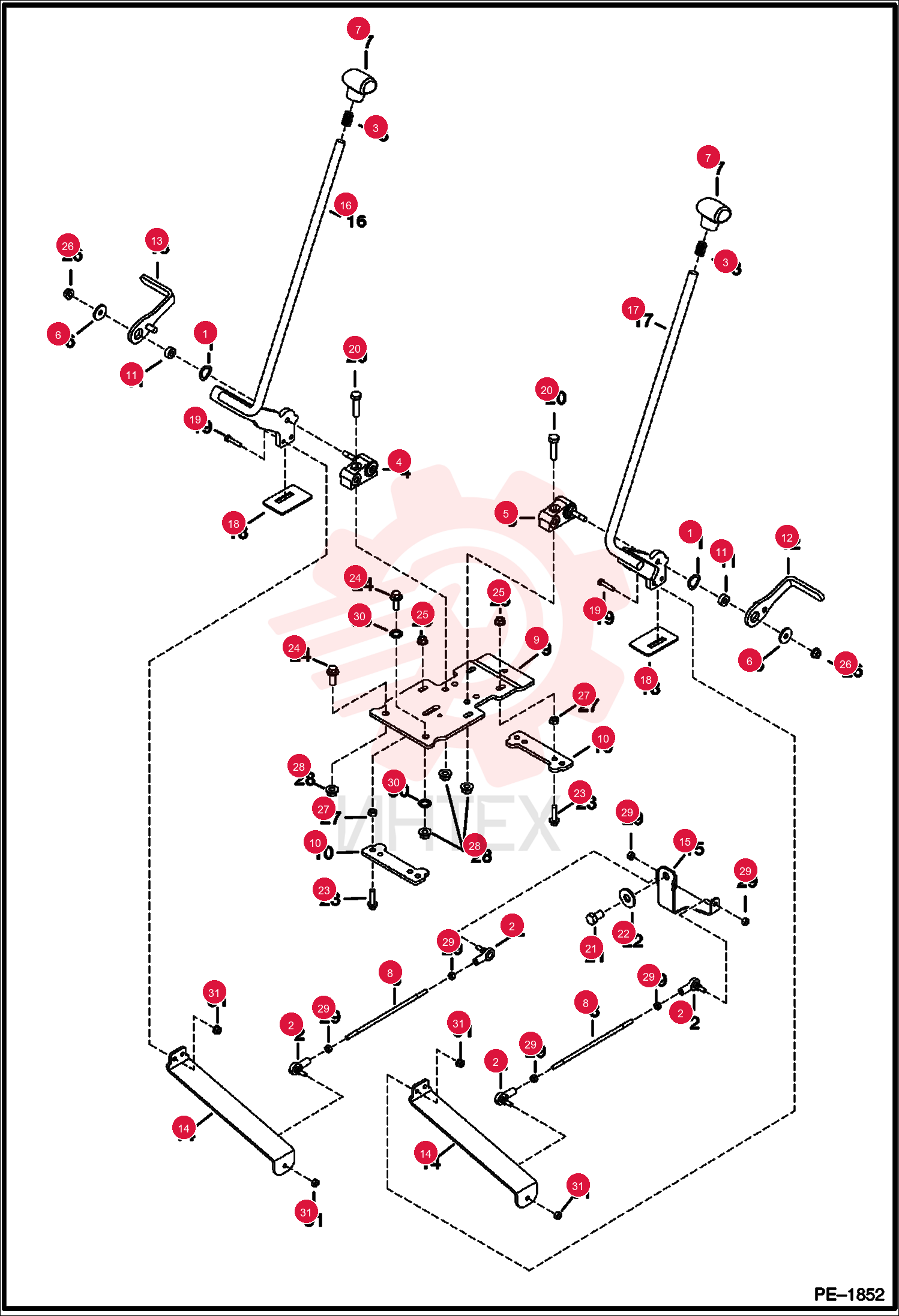

WASHER 6536803 (2)

WASHER 6536803 (2)

WASHER 6536803 (2)

1 6536803

  • 6536803 - WASHER
  • wavy

2 6631036

  • 6631036 - BALLJOINT

3 6672494

  • 6672494 - RING

4 6677904

  • 6677904 - BEARING
  • RH

5 6677908

  • 6677908 - BEARING
  • LH

6 6701174

  • 6701174 - WASHER FLAT

7 6804068

  • 6804068 - HANDLE ASSEMBLY
  • Also Order Ref. 3

8 6808004

  • 6808004 - ROD

9 6808061

  • 6808061 - MOUNT
  • pedal

10 6809084

  • 6809084 - STOP
  • stop

11 6810303

  • 6810303 - SPACER

12 6810508

  • 6810508 - PEDAL
  • LH

13 6810511

  • 6810511 - PEDAL
  • RH

14 6810514

  • 6810514 - LINK
  • Use W/8 mm dia hardware

15 6810515

  • 6810515 - PLATE

16 6810533

  • 6810533 - PEDAL
  • Use W/8 mm dia hardware

17 6810532

  • 6810532 - PEDAL
  • Use W/8 mm dia hardware

18 6812070

  • 6812070 - SEAL

19 17C416

  • 17C416 - BOLT
  • .25" dia

20 4CM825

  • 4CM825 - BOLT HEX HEAD
  • 8 mm dia - Was 1CM825

21 1CM1040

  • 1CM1040 - BOLT

22 1CM1220

  • 1CM1220 - BOLT

23 25E22

  • 25E22 - WASHER
  • flat

24 29CM830

  • 29CM830 - SCREW HEX

25 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

26 43DM8

  • 43DM8 - NUT FLANGED HEX

27 47DM8

  • 47DM8 - NUT HEX FLNG MPT

28 4DM8

  • 4DM8 - NUT HEX

29 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

30 62D4

  • 62D4 - NUT HEX FINISHED GR5

31 6E8

  • 6E8 - WASHER
  • lock

32 83D4

  • 83D4 - LKNUT HEX FLG GR8
  • .25" dia

33 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL
  • 8 mm dia
