341.0
/

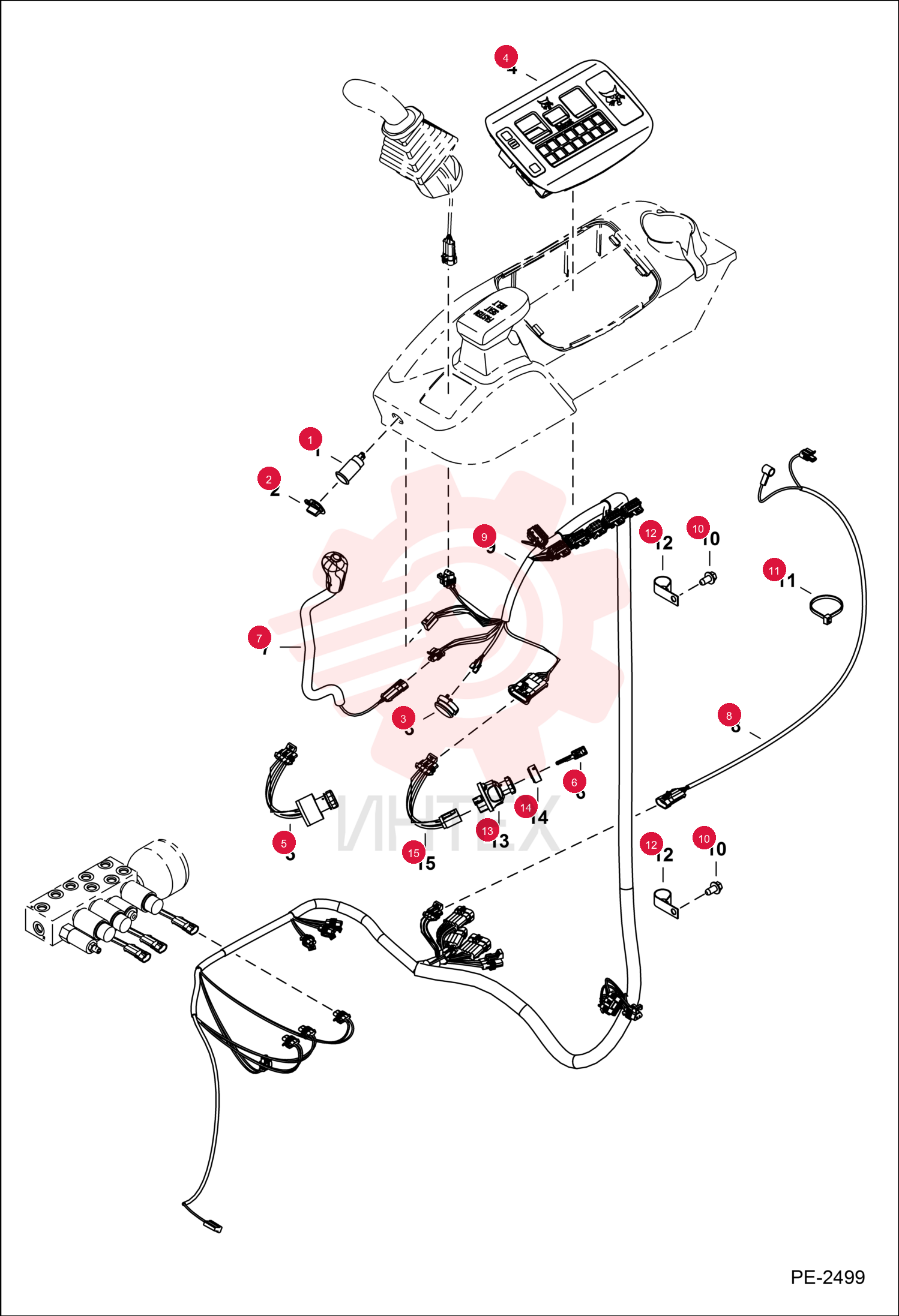

OUTLET ELECTRICAL 6664223 (3)

OUTLET ELECTRICAL 6664223 (3)

OUTLET ELECTRICAL 6664223 (3)

1 6664223

  • 6664223 - OUTLET ELECTRICAL

2 6664224

  • 6664224 - CAP

3 6675705

  • 6675705 - ALARM

4 6691430

  • 6691430 - CONTROLLER
  • - keyed

5 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

6 6675831

  • 6675831 - HANDLE
  • front half

7 6675832

  • 6675832 - HANDLE
  • back half

8 7117038

  • 7117038 - TUBE

9 6675721

  • 6675721 - SWITCH
  • momentary

10 6808121

  • 6808121 - HARNESS
  • hyd

11 6810007

  • 6810007 - HARNESS

12 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

13 6624289

  • 6624289 - STRAP
  • TIE

14 30HJ624

  • 30HJ624 - CLAMP

15 6693245

  • 6693245 - SWITCH
  • IGN
  • W/O attached harness

16 7000328

  • 7000328 - ADAPTER SWITCH

17 6697965

  • 6697965 - HARNESS
