341.0
/

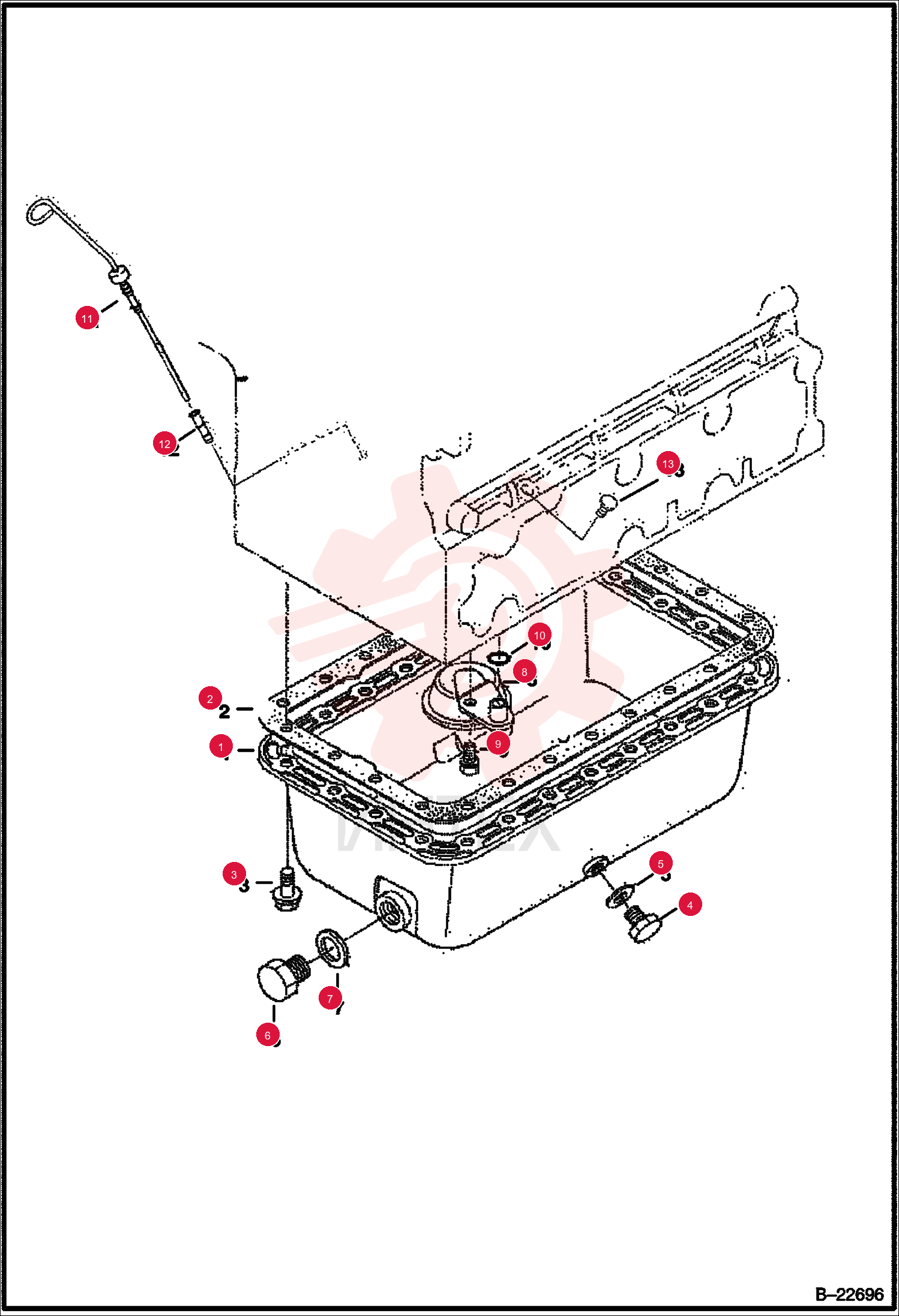

PAN, OIL 6655151 (5)

PAN, OIL 6655151 (5)

PAN, OIL 6655151 (5)

1 6655151

  • 6655151 - PAN
  • OIL
  • Was 7022790

2 6655151

  • 6655151 - PAN
  • OIL

3 6666817

  • 6666817 - GASKET
  • oil pan - Was 6684753

4 7001922

  • 7001922 - BOLT
  • Was 6698100

5 7001922

  • 7001922 - BOLT
  • Was 6653798

6 3974402

  • 3974402 - PLUG
  • Was - 6640729

7 6680484

  • 6680484 - GASKET

8 6680657

  • 6680657 - PLUG

9 6631046

  • 6631046 - GASKET

10 6655194

  • 6655194 - O. FILTER
  • Was 6653568

11 6685109

  • 6685109 - BOLT FLANGE

12 6667420

  • 6667420 - BOLT

13 6684754

  • 6684754 - O-RING

14 6677202

  • 6677202 - DIPSTICK
  • OIL ENG
  • oil - long - use W/guide

15 6677203

  • 6677203 - TUBE
  • DIPSTICK
  • oil

16 6969804

  • 6969804 - PLUG
  • OIL GAUGE
  • Was 6684785
